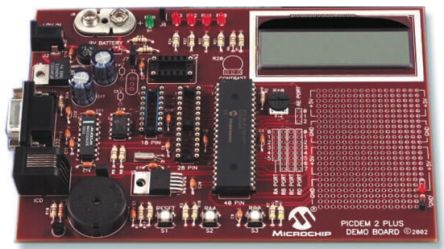

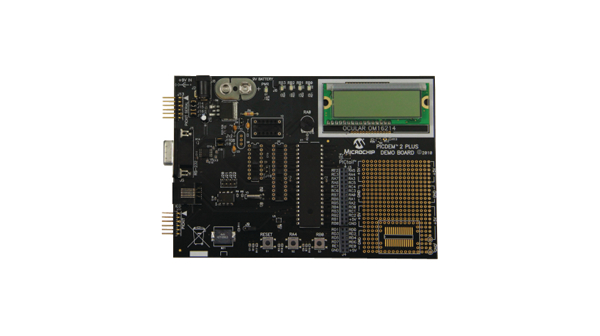

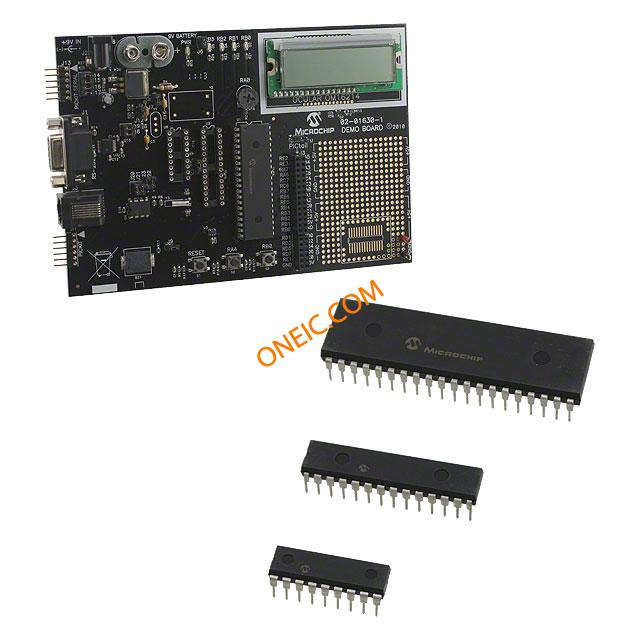

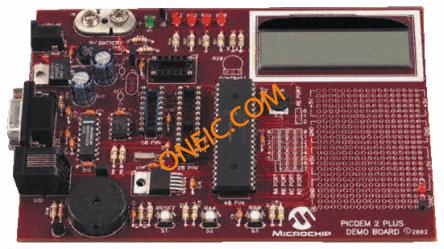

DM163022-1
| 制造商 | Microchip Technology Inc. |
| 描述 | Picdem 2 Plus Board Demonstrates The Capabilities Of Microchips 8-Bit Microcontrollers Development Boards & Kits - PIC / DSPIC PICDEM 2 Plus PICDEM 2 Plus BOARD DEMO PIC16F87X PIC18FXX2 PICDEM 2 Plus w/ ICD interface PIC16F, PICDEM 2 PLUS, DEMO BOARD Development kit: Microchip; PIC16; Connector type: RJ12 PICDEM 2 Plus PC hosted mode PIC16F1937-I/P 9 V, DM163022-1, Microchip Microchip 8 位 MCU 开发套件 |
| 分类 |
商业参数
| 最小起订量 | 2 | 产品 | Demonstration Boards |
| 单位包装 | 1 | 其他名称 | DM1630221 |
| 标准包装数量 | Boxed | ||
合规参数
| RoHS | RoHS Compliant | SVHC | :No SVHC (16-Dec-2013) |
| 海关税号 | 85423990 | ||
电气参数
| 核心类型 | PIC | 接口 | RS-232, Serial |
| 位数 | :8 bit | 供电电压 | 9 V |
| 元件数量 | :PIC16F, PIC18F | ||
机械参数
| 重量 | 0.2 | 连接器类型 | RJ12 |
| 核心数/总线宽度 | 8 bit | ||
产品信息
| 类型 | Development Kit | 内容 | Board, Samples, Software |
| 产品特性 | :Demonstration Program Displaying a Real Time Clock & Ambient Temperature, Generous Prototyping Area | 套件类型 | Microchip |
| 技术 | 8 bit | 套件内容 | PICDEM 2 Plus Demonstration Board, Sample Devices |
| 制造商全称 | :PIC16Fxxx, PIC16F1xxx, PIC18 | 卡标准 | Development Kit |
| 显示样式 | LCD 2x16 characters | 通信接口 | RS232 |
| 按键数 | 3 | 单元数量 | 1 |
| 电路数 | PIC16 | 芯片组制造商 | :Microchip |
| 适用产品/相关产品 | PIC Micro® MCU | ||
环境参数
| 机械寿命 | New Technology: Cutting edge technology for the newest designs. | ||
