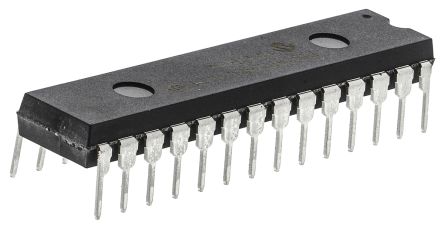

PIC18F2620-I/SP
| 制造商 | Microchip Technology Inc. |
| 描述 | MCU 8-bit PIC18 PIC RISC 64KB Flash 5V 28-Pin SPDIP Tube 8-bit Microcontrollers - MCU 64KB 3968 RAM 25 I/O 8 bit MCU SDIP28 IC MCU 8BIT 64KB FLASH 28SDIP PIC18F2620-I/SP, 8 bit Microcontroller PIC 40MHz 64kb Flash, 3986B RAM, I2C SPI 28-Pin SPDIP IC, 8BIT FLASH MCU, 18F2620, SDIL28 IC, 8BIT FLASH MCU, TUBE15, 18F2620 28-Pin,64KBFlash,3968RAM,25I/O Microcontroller 8 Bit DIL-28S, PIC18F2620-I/SP, Microchip Microchip PIC18F 系列 8 bit PIC MCU, 40MHz, 64 kB、1024 B ROM 闪存, 3986 B RAM, 28针 SPDIP封装 PIC18F 64K SPDIP28 85°C |
| 分类 |
商业参数
| 最小起订量 | 120 | 单位包装 | 15 |
| 其他名称 | PIC18F2620ISP | 产品类别 | 8-bit Microcontrollers - MCU |
| 标准包装数量 | Rail / Tube | 工厂包装数量 | 15 |
| 标准封装名称 | PDIP | ||
合规参数
| RoHS | RoHS Compliant | SVHC | :No SVHC (20-Jun-2013) |
| 欧盟RoHS | Compliant | 海关税号 | 85423190 |
| 零件状态 | :18F2620 | 抗辐射加固 | No |
| 无铅定义 | RoHS-conform | 认证机构 | No |
电气参数
| 输入端 | 25 | 转速 | 40 MHz |
| 定时器 | 1 x 8 bit, 3 x 16 bit | 存储器 | 64KBytes |
| RAM 大小 | 3986 byte | 内核大小 | 8-Bit |
| 核心类型 | PIC | 频率 | 40 MHz |
| 接口 | SPI/I2C/USART | 时钟速率 | 32 MHz |
| 比较器数量 | 2 | EEPROM容量 | 256Byte |
| 存储器容量 | 3968 B | 存储器类型 | FLASH |
| 显示类型 | no | I/O 数量 | 25 |
| 电压范围 | 2-5.5V | 位数 | 10 |
| 额定电压 | 4.2 → 5.5 V | 看门狗定时器 | 1 |
| 时钟频率 | :40MHz | 数据转换器 | A/D 10x10b |
| 最大频率 | 40MHz | DAC数量 | 2 |
| 振荡器类型 | Internal | 供电电压 | 5 V |
| 数字I/O线数 | 25pins | 分辨率（位） | 10Bit |
| 串行接口 | 1 | 通道数量 | 10 |
| 模拟输入/输出 | 2 | 非易失性存储器 | 1KBytes |
| 程序存储器大小 | 64 KB | 程序存储器类型 | Flash |
| ADC/DAC 数量 | 10 | 最小输入电压 | 5.5V |
| 最小供电电压 | 4.2 V | 频率（中心/带宽） | 16 bit, 8 bit |
| 最大功耗 | 1000 mW | 每元件位数 | 10 bit |
| 供电电压 (Vcc/Vdd) | 4.2 V ~ 5.5 V | ||
机械参数
| 宽度 | 0.295in | 高度 | 0.15in |
| 长度 | 1.4in | 重量 | 0.001333 |
| 包装方式 | Tube | 引脚样式 | Through Hole |
| 端接方式 | :Through Hole | 安装类型 | Through Hole |
| 安装样式 | Through Hole | 引脚数 | :28 |
| 封装形式 | 28SPDIP | 冷却的封装 | SPDIP |
| 材料表面处理 | :- | 总长度 | 34.67 |
| 包装数量 | SPDIP | 尺寸/外形 | 1.4 x 0.295 x 0.15in |
| 位数 | 28 | 外壳尺寸-插件 | 3.3 |
| 供应商器件封装 | 28-SPDIP | 核心数/总线宽度 | 8 Bit |
| 脉冲宽度失真（最大） | 2(CCP) | ||
产品信息
| SPI | 1 | USB | No |
| 系列 | PIC18 | 协议 | 1 |
| 匹配码 | PIC18F2620-I/SP | CAN编号 | 0 |
| 闪存大小 | :64KB | SPI编号 | 1 |
| 片内RAM（通道数×位宽） | 10-chx10-bit | 外设 | Brown-out Detect/Reset, HLVD, POR, PWM, WDT |
| 架构 | RISC | 连接性 | I²C, SPI, UART/USART |
| 可编程性 | Yes | 核心处理器 | PIC |
| 定时器数量 | 4 | 控制器系列 | :PIC18F2xxx |
| 标准交期 | 14 weeks | 射频系列/标准 | PIC18 |
| 使用的IC/零件 | :PIC18F2620-I/SP | DigiKey可编程 | Yes |
| 印刷电路板数量 | 28 | 微控制器特性 | :EEPROM, POR, PWRT, OST, WDT, , BOR, CCP/ECCP, EUSART |
| A/D转换器数量 | :10 | ||
环境参数
| 温度范围 | :Industrial | 测试温度 | -40°C |
| 工作温度 | -40 to 85 °C | 结工作温度 | 85C |
