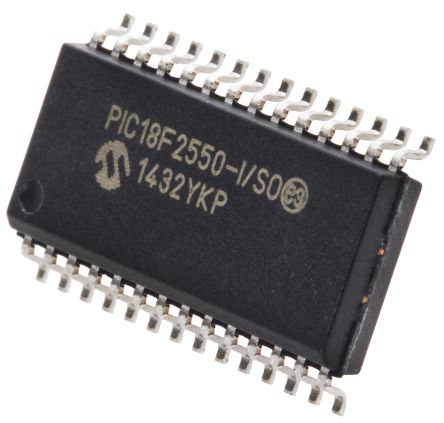

PIC18F2550-I/SO
| 制造商 | Microchip Technology Inc. |
| 描述 | MCU 8-Bit PIC18 PIC RISC 32KB Flash 5V 28-Pin SOIC W Tube MCU 8-bit PIC18 PIC RISC 32KB Flash 5V 28-Pin SOIC W Tube 8 bit MCU SOIC28 IC MCU 8BIT 32KB FLASH 28SOIC PIC18F2550-I/SO, 8 bit Microcontroller PIC 48MHz 32kb Flash, 2048B RAM, USB I2C SPI 28-Pin SOIC IC, 8BIT FLASH MCU, 18F2550, SOIC28 IC, 8BIT FLASH MCU, TUBE27, 18F2550 28-Pin,32KBFlash,2048RAM,FS-USB2.0 PIC microcontroller; EEPROM:256B; SRAM:2048B; 48MHz; SO28; 2÷5.5V Microcontroller 8 Bit SO-28W, PIC18F2550-I/SO, Microchip Microchip PIC18F 系列 8 bit PIC MCU, 48MHz, 32 kB、256 B ROM 闪存, 2048 B RAM, 1xUSB, 28针 SOIC封装 8-bit Microcontrollers - MCU 32kBF 2048RM FSUSB2 PIC18F 32K SOIC28 85°C |
| 分类 |
商业参数
| 最小起订量 | 1 | 单位包装 | 27 |
| 其他名称 | PIC18F2550ISO | 标准包装数量 | Rail / Tube |
| 标准封装名称 | SOIC W | ||
合规参数
| RoHS | Lead free / RoHS Compliant | SVHC | :No SVHC (20-Jun-2013) |
| 欧盟RoHS | Compliant | 海关税号 | 85423190 |
| 零件状态 | :18F2550 | 抗辐射加固 | No |
| 无铅定义 | RoHS-conform | 认证机构 | No |
电气参数
| 输入端 | 24 | 转速 | 48 MHz |
| 定时器 | 1 x 8 bit, 3 x 16 bit | 存储器 | 32KBytes |
| RAM 大小 | 2 KB | 内核大小 | 8-Bit |
| 核心类型 | PIC | 频率 | 48 MHz |
| 接口 | I2C/SPI/USART/USB | 时钟速率 | 48 |
| 比较器数量 | 2 | 分辨率 | 10bit |
| EEPROM容量 | 256Byte | 存储器容量 | 32KByte |
| 存储器类型 | FLASH | 显示类型 | no |
| I/O 数量 | 24 | 电压范围 | 2-5.5V |
| 位数 | 10 | 额定电压 | 4.2 → 5.5 V |
| 看门狗定时器 | 1 | 时钟频率 | :48MHz |
| 数据转换器 | A/D 10x10b | 最大频率 | 40MHz |
| DAC数量 | 2 | 振荡器类型 | Internal |
| 中断输出 | :19 | 供电电压 | 5 V |
| 数字I/O线数 | 24pins | 分辨率（位） | 10Bit |
| 串行接口 | 1 | 通道数量 | 1 |
| 模拟输入/输出 | 2 | 非易失性存储器 | 256Bytes |
| 程序存储器大小 | 32 KB | 程序存储器类型 | Flash |
| ADC/DAC 数量 | 10 | 最小输入电压 | 2V |
| 8位定时器数量 | 1 | 最小供电电压 | 4.2 V |
| 频率（中心/带宽） | 16 bit, 8 bit | 最大功耗 | 1000 mW |
| 每元件位数 | :16 | 供电电压 (Vcc/Vdd) | 4.2 V ~ 5.5 V |
机械参数
| 宽度 | 7.5mm | 高度 | 2.35mm |
| 长度 | 17.9mm | 重量 | 0.0001 |
| 包装方式 | TUBE | 引脚样式 | Gull-wing |
| 安装类型 | Surface Mount | 引脚数 | :28 |
| 封装形式 | 28SOIC W | 冷却的封装 | SOIC |
| 材料表面处理 | :MSL 1 - Unlimited | 总长度 | 17.9 |
| 包装数量 | SOIC W | 尺寸/外形 | 17.9 x 7.5 x 2.35mm |
| 位数 | 28 | 外壳尺寸-插件 | 2.05(Min) |
| 供应商器件封装 | 28-SOIC | 核心数/总线宽度 | 8 Bit |
| 脉冲宽度失真（最大） | 2(10 bit) (CCP) | ||
产品信息
| SPI | 1 | SPG | 135 |
| USB | 1 | 类型 | PIC microcontroller |
| 协议 | 1 | 匹配码 | PIC18F2550-I/SO |
| CAN编号 | 0 | 闪存大小 | :32KB |
| SPI编号 | 1 | 片内RAM（通道数×位宽） | 10-chx10-bit |
| 外设 | Brown-out Detect/Reset, HLVD, POR, PWM, WDT | 架构 | RISC |
| 连接性 | I²C, SPI, UART/USART, USB | 可编程性 | Yes |
| 核心处理器 | PIC | 内置振荡器 | 32kHz, 8MHz |
| 单元数量 | 1 | 定时器数量 | 4 |
| 控制器系列 | :PIC18F2xxx | 标准交期 | 17 weeks |
| 射频系列/标准 | PIC18 | 使用的IC/零件 | :PIC18F2550-I/SO |
| DigiKey可编程 | Yes | 印刷电路板数量 | 28 |
| 微控制器特性 | :SPI, I²C, 2 xCCP, EUSART, 2 x Comparators, 1 x 8-bit timer, 3 x 16-bit timer | A/D转换器数量 | :10 |
环境参数
| 温度范围 | :Industrial | 测试温度 | -40°C |
| 工作温度 | -40 to 85 °C | 结工作温度 | 85C |
