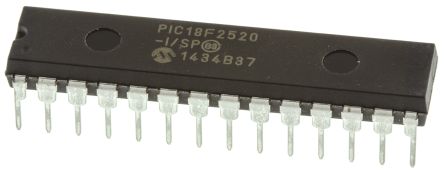

PIC18F2520-I/SP

制造商	Microchip Technology Inc.
描述	MCU 8-Bit PIC18 PIC RISC 32KB Flash 5V 28-Pin SPDIP Tube 8-bit Microcontrollers - MCU 32KB 3968 RAM 25I/O MCU 8-bit PIC18 PIC RISC 32KB Flash 5V 28-Pin SPDIP Tube 8 bit MCU SDIP28 IC MCU 8BIT 32KB FLASH 28SDIP PIC18F2520-I/SP, 8 bit Microcontroller PIC 40MHz 32kb Flash, 1536B RAM, I2C SPI 28-Pin SPDIP IC, 8BIT FLASH MCU, 18F2520, SDIL28 IC, 8BIT FLASH MCU, TUBE15, 18F2520 28-Pin,32KBFlash,1536RAM,25I/O PIC microcontroller; EEPROM:256B; SRAM:1536B; 40MHz; DIP28 Microcontroller 8 Bit DIL-28, PIC18F2520-I/SP, Microchip Microchip PIC18F 系列 8 bit PIC MCU, 40MHz, 32 kB、256 B ROM 闪存, 1536 B RAM, 28针 SPDIP封装
分类	集成电路嵌入式微控制器应用处理器

对参数有疑问？问 AI 助手

商业参数

最小起订量	1	单位包装	15
其他名称	PIC18F2520ISP	产品类别	8-bit Microcontrollers - MCU
标准包装数量	Rail / Tube	工厂包装数量	15
标准封装名称	PDIP

合规参数

RoHS	RoHS Compliant	SVHC	:No SVHC (20-Jun-2013)
欧盟RoHS	Compliant	海关税号	85423190
零件状态	:18F2520	抗辐射加固	No
无铅定义	RoHS-conform	认证机构	No

电气参数

输入端	25	转速	40 MHz
定时器	1 x 8 bit, 3 x 16 bit	存储器	32KBytes
RAM 大小	1.5 KB	内核大小	8-Bit
核心类型	PIC	频率	40 MHz
接口	I2C/SPI/USART	时钟速率	40 MHz
比较器数量	2	EEPROM容量	256Byte
存储器容量	1536 B	存储器类型	FLASH
显示类型	no	I/O 数量	25
电压范围	2-5.5V	位数	10
额定电压	4.2 → 5.5 V	看门狗定时器	1
时钟频率	:40MHz	数据转换器	A/D 10x10b
最大频率	40MHz	DAC数量	2
振荡器类型	Internal	中断输出	:19
供电电压	5 V	数字I/O线数	24pins
分辨率（位）	10Bit	串行接口	1
通道数量	10	模拟输入/输出	2
非易失性存储器	256Bytes	程序存储器大小	32 KB
程序存储器类型	Flash	ADC/DAC 数量	10
最小输入电压	5.5V	8位定时器数量	1
最小供电电压	4.2 V	频率（中心/带宽）	16 bit, 8 bit
最大功耗	1000 mW	每元件位数	10 bit
供电电压 (Vcc/Vdd)	4.2 V ~ 5.5 V

机械参数

宽度	0.295in	高度	0.15in
长度	1.4in	重量	0.0001
包装方式	Tube	引脚样式	Through Hole
安装类型	Through Hole	安装样式	Through Hole
引脚数	:28	封装形式	28SPDIP
冷却的封装	SPDIP	材料表面处理	:-
总长度	34.67	包装数量	SPDIP
尺寸/外形	1.4 x 0.295 x 0.15in	位数	28
外壳尺寸-插件	3.43	供应商器件封装	28-SPDIP
核心数/总线宽度	8 Bit	脉冲宽度失真（最大）	2(CCP)

产品信息

SPI	1	SPG	150
USB	yes	类型	PIC microcontroller
系列	PIC18	协议	1
匹配码	PIC18F2520-I/SP	CAN编号	0
闪存大小	:32KB	SPI编号	1
片内RAM（通道数×位宽）	10-chx10-bit	外设	Brown-out Detect/Reset, HLVD, POR, PWM, WDT
架构	RISC	连接性	I²C, SPI, UART/USART
可编程性	Yes	核心处理器	PIC
内置振荡器	32kHz, 8MHz	单元数量	1
定时器数量	4	控制器系列	:PIC18F2xxx
标准交期	14 weeks	射频系列/标准	PIC18
使用的IC/零件	:PIC18F2520-I/SP	DigiKey可编程	Yes
印刷电路板数量	28	微控制器特性	:SPI, I²C, 2 x CCP, EUSART, 2 x Comparators, 1 x 8-bit timer, 3 x 16-bit timer
A/D转换器数量	:10

环境参数

温度范围	:Industrial	测试温度	85°C
工作温度	-40 to 85 °C	结工作温度	85C

文档与媒体
