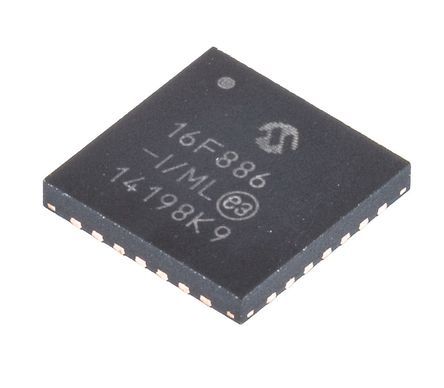

PIC16F886-I/ML
| 制造商 | Microchip Technology Inc. |
| 描述 | MCU 8-Bit PIC16 PIC RISC 14KB Flash 5V 28-Pin QFN EP Tube MCU 8-bit PIC16 PIC RISC 14KB Flash 5V 28-Pin QFN EP Tube 8 bit MCU QFN28 RoHSco IC MCU 8BIT 14KB FLASH 28QFN PIC16F886-I/ML, 8 bit Microcontroller PIC 20MHz 8192 Flash, 368B RAM, I2C SPI 28-Pin QFN 8-bit Microcontrollers - MCU 14KB Flash 368 RAM 25 I/O IC, MCU, 8-BIT, 14K FLASH, QFN28 IC,PIC16F886-I/ML PIC microcontroller; EEPROM:256B; SRAM:368B; 20MHz; QFN28; 2÷5.5V Microcontroller 8 Bit QFN-28,20 MHz, PIC16F886-I/ML, Microchip Microchip PIC16F 系列 8 bit PIC MCU, 20MHz, 8192 x 14 字，256 B ROM 闪存, 368 B RAM, 28针 QFN封装 PIC16F 14K QFN28 85°C |
| 分类 |
商业参数
| 最小起订量 | 1 | 单位包装 | 61 |
| 其他名称 | PIC16F886IML | 产品类别 | 8-bit Microcontrollers - MCU |
| 标准包装数量 | Rail / Tube | 工厂包装数量 | 61 |
| 标准封装名称 | QFN | ||
合规参数
| RoHS | Lead free / RoHS Compliant | SVHC | :No SVHC (20-Jun-2013) |
| 欧盟RoHS | Compliant | 海关税号 | 85411000 |
| 零件状态 | :16F886 | 抗辐射加固 | No |
| 无铅定义 | RoHS-conform | 认证机构 | No |
电气参数
| 转速 | 20 MHz | 定时器 | 1 x 16 bit, 2 x 8 bit |
| 存储器 | 14kB | RAM 大小 | 368 byte |
| 内核大小 | 8-Bit | 核心类型 | PIC |
| 频率 | 20 MHz | 接口 | I2C/SPI/USART |
| 时钟速率 | 20 MHz | 分辨率 | 10bit |
| EEPROM容量 | 256Byte | 存储器容量 | 14KByte |
| 存储器类型 | FLASH | I/O 数量 | 24 |
| 位数 | 10 | 额定电压 | 2 → 5.5 V |
| 看门狗定时器 | 1 | 时钟频率 | :20MHz |
| 数据转换器 | A/D 11x10b | 最大频率 | 20MHz |
| DAC数量 | 1 | 振荡器类型 | Internal |
| 供电电压 | 5 V | 数字I/O线数 | 16pins |
| 分辨率（位） | 10Bit | 串行接口 | 1 |
| 通道数量 | 0 | 模拟输入/输出 | 2 |
| 程序存储器大小 | 14 KB | 程序存储器类型 | Flash |
| ADC/DAC 数量 | 11 | 最小输入电压 | 5.5V |
| 8位定时器数量 | 2 | 最小供电电压 | 4.5 V |
| 频率（中心/带宽） | 16 bit, 8 bit | 最大功耗 | 800 mW |
| 每元件位数 | 10 bit | 供电电压 (Vcc/Vdd) | 2 V ~ 5.5 V |
机械参数
| 宽度 | 6mm | 高度 | 0.95mm |
| 长度 | 6mm | 重量 | 0.0002 |
| 包装方式 | TUBE | 引脚样式 | No Lead |
| 端接方式 | :SMD | 安装类型 | Surface Mount |
| 安装样式 | SMD/SMT | 引脚数 | :28 |
| 封装形式 | 28QFN EP | 冷却的封装 | QFN |
| 材料表面处理 | :MSL 3 - 168 hours | 总长度 | 6 |
| 包装数量 | QFN EP | 尺寸/外形 | 6 x 6 x 0.95mm |
| 位数 | 28 | 外壳尺寸-插件 | 0.88 |
| 供应商器件封装 | 28-QFN (6x6) | 核心数/总线宽度 | 8 Bit |
| 脉冲宽度失真（最大） | 1(10 bit) (CCP), 1(10 bit) (ECCP) | ||
产品信息
| SPI | 1 | SPG | 60 |
| USB | No | 类型 | PIC microcontroller |
| 系列 | PIC16 | 协议 | 1 |
| 匹配码 | PIC16F886-I/ML | CAN编号 | 0 |
| 闪存大小 | :14KB | SPI编号 | 0 |
| 片内RAM（通道数×位宽） | 11-chx10-bit | 外设 | Brown-out Detect/Reset, POR, PWM, WDT |
| 架构 | RISC | 连接性 | I²C, SPI, UART/USART |
| 可编程性 | Yes | 核心处理器 | PIC |
| 内置振荡器 | 32kHz, 8MHz | 单元数量 | 1 |
| 定时器数量 | 3 | 控制器系列 | :PIC16F8xx |
| 标准交期 | 14 weeks | 射频系列/标准 | PIC16 |
| 使用的IC/零件 | :PIC16F886-I/ML | DigiKey可编程 | Yes |
| 印刷电路板数量 | 28 | A/D转换器数量 | :11 |
环境参数
| 温度范围 | :Industrial | 工作温度 | -40 to 85 °C |
| 结工作温度 | 85C | ||
