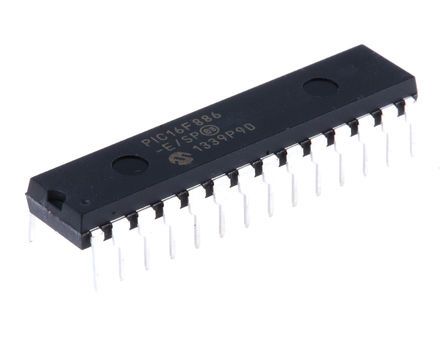

PIC16F886-E/SP
| 制造商 | Microchip Technology Inc. |
| 描述 | MCU 8-bit PIC16 PIC RISC 14KB Flash 5V 28-Pin SPDIP Tube 14KB Flash, 368 RAM, 25 I/O IC MCU 8BIT 14KB FLASH 28SDIP PIC16F886-E/SP, 8 bit Microcontroller PIC 20MHz 8192 Flash, 368B RAM, I2C SPI 28-Pin SPDIP 8-bit Microcontrollers - MCU 14KB Flash 368 RAM 25 I/O IC, MCU, 8-BIT, 14K FLASH, SPDIP28 28-Pin,14KBFlash,368RAM,25I/O Microcontroller 8 Bit SPDIP-28,20 MHz, PIC16F886-E/SP, Microchip Microchip PIC16F 系列 8 bit PIC MCU, 20MHz, 8192 x 14 字，256 B ROM 闪存, 368 B RAM, 28针 SPDIP封装 |
| 分类 |
商业参数
| 最小起订量 | 329 | 单位包装 | 15 |
| 其他名称 | PIC16F886ESP | 产品类别 | 8-bit Microcontrollers - MCU |
| 标准包装数量 | Rail / Tube | 工厂包装数量 | 15 |
合规参数
| RoHS | Lead free / RoHS Compliant | SVHC | :No SVHC (20-Jun-2013) |
| 海关税号 | 85411000 | 零件状态 | :16F886 |
电气参数
| 输入端 | 24 | 转速 | 20 MHz |
| 定时器 | 1 x 16 bit, 2 x 8 bit | 存储器 | 14KBytes |
| RAM 大小 | 368 byte | 内核大小 | 8-Bit |
| 核心类型 | PIC | 接口 | I2C/SPI/USART |
| 时钟速率 | 20 MHz | 比较器数量 | 2 |
| 分辨率 | 10bit | EEPROM容量 | 256 x 8 |
| 存储器容量 | 368 B | 存储器类型 | Flash |
| I/O 数量 | 24 | 电压范围 | 2-5.5V |
| 位数 | :8 | 额定电压 | 2 → 5.5 V |
| 看门狗定时器 | 1 | 时钟频率 | :20MHz |
| 数据转换器 | A/D 11x10b | 最大频率 | 20MHz |
| DAC数量 | 2 | 振荡器类型 | Internal |
| 供电电压 | 5 V | 分辨率（位） | 10bit |
| 通道数量 | 0 | 模拟输入/输出 | 2 |
| 非易失性存储器 | 256Bytes | 程序存储器大小 | 14 KB |
| 程序存储器类型 | Flash | ADC/DAC 数量 | 11 |
| 频率（中心/带宽） | 16 bit, 8 bit | 最大功耗 | 800 mW |
| 每元件位数 | 10 bit | 供电电压 (Vcc/Vdd) | 2 V ~ 5.5 V |
机械参数
| 宽度 | 0.295in | 高度 | 0.15in |
| 长度 | 1.4in | 重量 | 0.006669 |
| 包装方式 | Tube | 端接方式 | :Through Hole |
| 安装类型 | Through Hole | 安装样式 | Through Hole |
| 引脚数 | :28 | 封装形式 | 28SPDIP |
| 冷却的封装 | SPDIP | 材料表面处理 | :- |
| 尺寸/外形 | 1.4 x 0.295 x 0.15in | 位数 | 28 |
| 供应商器件封装 | 28-SPDIP | 核心数/总线宽度 | 8 Bit |
| 脉冲宽度失真（最大） | 1(10 bit) (CCP), 1(10 bit) (ECCP) | ||
产品信息
| USB | 0 | 系列 | PIC16 |
| 闪存大小 | :14KB | 片内RAM（通道数×位宽） | 11-chx10-bit |
| 外设 | Brown-out Detect/Reset, POR, PWM, WDT | 架构 | RISC |
| 连接性 | I²C, SPI, UART/USART | 核心处理器 | PIC |
| 定时器数量 | 3 | 控制器系列 | :PIC16F8xx |
| 射频系列/标准 | PIC16 | 使用的IC/零件 | :PIC16F886-E/SP |
| A/D转换器数量 | :11 | ||
环境参数
| 温度范围 | :Extended | 工作温度 | -40 to 125 °C |
