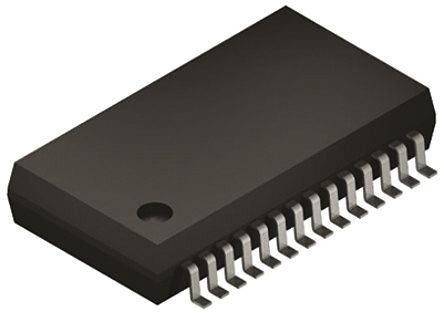

PIC16F876A-I/SS
| 制造商 | Microchip Technology Inc. |
| 描述 | MCU 8-Bit PIC16 PIC RISC 14KB Flash 5V 28-Pin SSOP Tube MCU 8-bit PIC16 PIC RISC 14KB Flash 5V 28-Pin SSOP Tube 8 bit MCU SSOP28 IC MCU 8BIT 14KB FLASH 28SSOP 8-bit Microcontrollers - MCU 14KB 368 RAM 22 I/O 8BIT FLASH MCU, SMD, 16F876, SSOP28 8BIT FLASH MCU, SMD, TUBE47, 16F876 28-Pin,7KBFlash,368RAM,22I/O PIC microcontroller; EEPROM:256B; SRAM:368B; 20MHz; SSOP28 Microcontroller 8 Bit SSOP-28, PIC16F876A-I/SS, Microchip Microchip PIC16F 系列 8 bit PIC MCU, 20MHz, 14 kB ROM 闪存, 368 B RAM, 28针 SSOP封装 PIC16F 7K SSOP28 85°C |
| 分类 |
商业参数
| 最小起订量 | 1 | 单位包装 | 47 |
| 产品类别 | 8-bit Microcontrollers - MCU | 标准包装数量 | Rail / Tube |
| 工厂包装数量 | 47 | 标准封装名称 | SSOP |
合规参数
| RoHS | Lead free / RoHS Compliant | SVHC | :No SVHC (20-Jun-2013) |
| 欧盟RoHS | Compliant | 海关税号 | 85423190 |
| 零件状态 | :16F876 | 抗辐射加固 | No |
| 无铅定义 | RoHS-conform | 认证机构 | No |
电气参数
| 输入端 | 22 | 转速 | 20 MHz |
| 定时器 | 2-8-bit,1-16-bit | 存储器 | 14KBytes |
| RAM 大小 | 368 byte | 内核大小 | 8-Bit |
| 核心类型 | PIC | 频率 | 20 MHz |
| 接口 | I2C/SPI/USART | 时钟速率 | 20 MHz |
| 比较器数量 | 2 | EEPROM容量 | 256 x 8 |
| 存储器容量 | 368 B | 存储器类型 | FLASH |
| I/O 数量 | 22 | 电压范围 | 2-5.5V |
| 位数 | 10 | 额定电压 | 4 |
| 看门狗定时器 | 1 | 时钟频率 | :20MHz |
| 数据转换器 | A/D 5x10b | 最大频率 | 20MHz |
| DAC数量 | :2 | 振荡器类型 | External |
| 供电电压 | 5 V | 串行接口 | 1 |
| 通道数量 | 5 | 模拟输入/输出 | 2 |
| 非易失性存储器 | 256Bytes | 程序存储器大小 | 14 KB |
| 程序存储器类型 | Flash | ADC/DAC 数量 | 5 |
| 8位定时器数量 | 2 | 最小供电电压 | 4 V |
| 每元件位数 | 10 bit | 供电电压 (Vcc/Vdd) | 4 V ~ 5.5 V |
机械参数
| 宽度 | 5.3 | 重量 | 0.000001 |
| 包装方式 | Tube | 引脚样式 | Gull-wing |
| 端接方式 | :SMD | 安装类型 | Surface Mount |
| 安装样式 | SMD/SMT | 引脚数 | :28 |
| 封装形式 | 28SSOP | 冷却的封装 | SSOP |
| 材料表面处理 | :MSL 1 - Unlimited | 总长度 | 10.2 |
| 包装数量 | SSOP | 位数 | 28 |
| 外壳尺寸-插件 | 1.75 | 供应商器件封装 | 28-SSOP |
| 核心数/总线宽度 | 8 Bit | ||
产品信息
| SPI | 1 | SPG | 47 |
| 类型 | PIC microcontroller | 系列 | PIC16 |
| 协议 | 1 | 匹配码 | PIC16F876A-I/SS |
| 闪存大小 | :14KB | 片内RAM（通道数×位宽） | 5-chx10-bit |
| 外设 | Brown-out Detect/Reset, POR, PWM, WDT | 架构 | RISC |
| 连接性 | I²C, SPI, UART/USART | 可编程性 | Yes |
| 核心处理器 | PIC | 单元数量 | 1 |
| 定时器数量 | 3 | 控制器系列 | :PIC16F |
| 标准交期 | 24 weeks | 射频系列/标准 | PIC16 |
| DigiKey可编程 | Yes | 印刷电路板数量 | 28 |
| 微控制器特性 | :ISP/AUSART/MI²C, PWM, BOR, WDT, ADC, CCP, COMPARATOR | A/D转换器数量 | :5 |
环境参数
| 温度范围 | :Industrial | 测试温度 | -40°C |
| 工作温度 | -40 to 85 °C | 结工作温度 | 85C |
