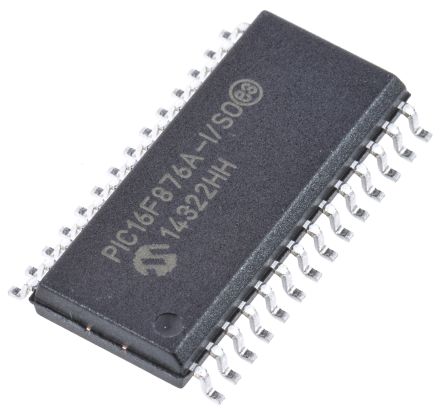

PIC16F876A-I/SO
| 制造商 | Microchip Technology Inc. |
| 描述 | MCU 8-Bit PIC16 PIC RISC 14KB Flash 5V 28-Pin SOIC W Tube MCU 8-bit PIC16 PIC RISC 14KB Flash 5V 28-Pin SOIC W Tube 8 bit MCU SOIC28 IC MCU 8BIT 14KB FLASH 28SOIC PIC16F876A-I/SO, 8 bit Microcontroller PIC 20MHz 14.3kb Flash, 368B RAM, I2C SPI 28-Pin SOIC 8-bit Microcontrollers - MCU 14KB 368 RAM 22 I/O 8BIT FLASH MCU, SMD, 16F876, SOIC28 8BIT FLASH MCU, SMD, TUBE27, 16F876 28-Pin,7KBFlash,368RAM,22I/O PIC microcontroller; EEPROM:256B; SRAM:368B; 20MHz; SO28; 2÷5.5V Microcontroller 8 Bit SO-28, PIC16F876A-I/SO, Microchip Microchip PIC16F 系列 8 bit PIC MCU, 20MHz, 14.3 kB，256 B ROM 闪存, 368 B RAM, 28针 SOIC封装 PIC16F 7K SOIC28 85°C |
| 分类 |
商业参数
| 最小起订量 | 1 | 单位包装 | 27 |
| 产品类别 | 8-bit Microcontrollers - MCU | 标准包装数量 | Rail / Tube |
| 工厂包装数量 | 27 | 标准封装名称 | SOIC W |
合规参数
| RoHS | Lead free / RoHS Compliant | SVHC | :No SVHC (20-Jun-2013) |
| 欧盟RoHS | Compliant | 海关税号 | 85423190 |
| 汽车级 | NO | 零件状态 | :16F876 |
| 抗辐射加固 | No | 无铅定义 | RoHS-conform |
| 认证机构 | No | ||
电气参数
| 输入端 | 22 | 转速 | 20 MHz |
| 定时器 | 1 x 16 bit, 2 x 8 bit | 存储器 | 14KBytes |
| 以太网 | 0 | RAM 大小 | 368 byte |
| 内核大小 | 8-Bit | 核心类型 | PIC |
| 频率 | 20 MHz | 接口 | I2C/SPI/USART |
| 时钟速率 | 20 MHz | 比较器数量 | 2 |
| 分辨率 | 10bit | EEPROM容量 | 256Byte |
| 存储器容量 | 14KByte | 存储器类型 | FLASH |
| 显示类型 | 0 | I/O 数量 | 22 |
| 电压范围 | 2-5.5V | 位数 | 10 |
| 额定电压 | 4 → 5.5 V | 看门狗定时器 | 1 |
| 时钟频率 | :20MHz | 数据转换器 | A/D 5x10b |
| 最大频率 | 20MHz | DAC数量 | 2 |
| 振荡器类型 | External | 供电电压 | 5 V |
| 数字I/O线数 | 25pins | 分辨率（位） | 16bit |
| 串行接口 | 1 | 通道数量 | 1 |
| 模拟输入/输出 | 2 | 非易失性存储器 | 256Bytes |
| 程序存储器大小 | 14 KB | 程序存储器类型 | Flash |
| ADC/DAC 数量 | 5 | 最小输入电压 | 5.5V |
| 8位定时器数量 | 2 | 最小供电电压 | 4 V |
| 频率（中心/带宽） | 16 bit, 8 bit | 每元件位数 | 10 bit |
| 供电电压 (Vcc/Vdd) | 4 V ~ 5.5 V | ||
机械参数
| 宽度 | 7.59mm | 高度 | 2.39mm |
| 长度 | 18.08mm | 重量 | 0.000001 |
| 包装方式 | TUBE | 引脚样式 | Gull-wing |
| 端接方式 | :SMD | 安装类型 | Surface Mount |
| 安装样式 | SMD/SMT | 引脚数 | :28 |
| 封装形式 | 28SOIC W | 冷却的封装 | SOIC |
| 材料表面处理 | :MSL 1 - Unlimited | 总长度 | 17.87 |
| 包装数量 | SOIC W | 尺寸/外形 | 18.08 x 7.59 x 2.39mm |
| 位数 | 28 | 外壳尺寸-插件 | 2.31 |
| 供应商器件封装 | 28-SOIC | 核心数/总线宽度 | 8 Bit |
| 脉冲宽度失真（最大） | 2(10 bit) (CCP) | ||
产品信息
| SPI | 1 | SPG | 162 |
| USB | No | 类型 | PIC microcontroller |
| 系列 | PIC16 | 协议 | 1 |
| 匹配码 | PIC16F876A-I/SO | CAN编号 | 0 |
| 闪存大小 | :14KB | SPI编号 | 1 |
| 片内RAM（通道数×位宽） | 5-chx10-bit | 外设 | Brown-out Detect/Reset, POR, PWM, WDT |
| 架构 | RISC | 连接性 | I²C, SPI, UART/USART |
| 可编程性 | Yes | 核心处理器 | PIC |
| 单元数量 | 1 | 定时器数量 | 3 |
| 控制器系列 | :PIC16F | 标准交期 | 14 weeks |
| 射频系列/标准 | PIC16 | 使用的IC/零件 | :PIC16F876A-I/SO |
| DigiKey可编程 | Yes | 印刷电路板数量 | 28 |
| 微控制器特性 | :ISP/AUSART/MI²C, PWM, BOR, WDT, ADC, CCP, COMPARATOR | A/D转换器数量 | :5 |
环境参数
| 温度范围 | :Industrial | 测试温度 | -40°C |
| 工作温度 | -40 to 85 °C | 结工作温度 | 85C |
文档与媒体
相关型号
DV164131
microchip
