PIC16F876-20I/SO
| 制造商 | Microchip Technology Inc. |
| 描述 | MCU 8-bit PIC16 PIC RISC 14KB Flash 5V 28-Pin SOIC W Tube 8 bit MCU SOIC28 IC MCU 8BIT 14KB FLASH 28SOIC 8-bit Microcontrollers - MCU 14KB 368 RAM 22 I/O 8BIT FLASH MCU, SMD, 16F876, SOIC28 8BIT FLASH MCU, SMD, TUBE27, 16F876 28-Pin,7KBFlash,368RAM,22I/O Microcontroller 8 Bit SOIC-28,20 MHz, PIC16F876-20I/SO, Microchip PIC16F 7K SOIC28 85°C |
| 分类 |
商业参数
| 最小起订量 | 27 | 单位包装 | 27 |
| 其他名称 | PIC16F87620ISO | 产品类别 | 8-bit Microcontrollers - MCU |
| 标准包装数量 | Rail / Tube | 工厂包装数量 | 27 |
合规参数
| RoHS | Lead free / RoHS Compliant | SVHC | :No SVHC (20-Jun-2013) |
| 海关税号 | 85423190 | 零件状态 | :16F876 |
| 抗辐射加固 | No | 无铅定义 | RoHS-conform |
电气参数
| 输入端 | 22 | 转速 | 20 MHz |
| 定时器 | 2-8-bit,1-16-bit | 存储器 | 14KBytes |
| RAM 大小 | 368 byte | 内核大小 | 8-Bit |
| 核心类型 | PIC | 频率 | 20 MHz |
| 接口 | I2C/SPI/USART | 时钟速率 | 20 MHz |
| 比较器数量 | 2 | EEPROM容量 | 256 x 8 |
| 存储器容量 | 368 B | 存储器类型 | FLASH |
| I/O 数量 | 22 | 电压范围 | 2-5.5V |
| 位数 | :8 | 看门狗定时器 | 1 |
| 时钟频率 | :20MHz | 数据转换器 | A/D 5x10b |
| DAC数量 | :2 | 振荡器类型 | External |
| 供电电压 | 5 V | 通道数量 | 5 |
| 模拟输入/输出 | 5-Channel,10-Bit | 非易失性存储器 | 256Bytes |
| 程序存储器大小 | 14 KB | 程序存储器类型 | Flash |
| 最小供电电压 | 4 V | 最大功耗 | 1000 mW |
| 每元件位数 | 10 bit | 供电电压 (Vcc/Vdd) | 4 V ~ 5.5 V |
机械参数
| 重量 | 0.000001 | 包装方式 | Tube |
| 端接方式 | :SMD | 安装类型 | Surface Mount |
| 安装样式 | SMD/SMT | 引脚数 | :28 |
| 封装形式 | 28SOIC W | 冷却的封装 | SOIC W |
| 材料表面处理 | :MSL 1 - Unlimited | 位数 | 28 |
| 供应商器件封装 | 28-SOIC | 核心数/总线宽度 | 8 Bit |
产品信息
| 系列 | PIC16 | 匹配码 | PIC16F876-20I/SO |
| 闪存大小 | :14KB | 片内RAM（通道数×位宽） | 5-chx10-bit |
| 外设 | Brown-out Detect/Reset, POR, PWM, WDT | 架构 | RISC |
| 连接性 | I²C, SPI, UART/USART | 可编程性 | Yes |
| 核心处理器 | PIC | 定时器数量 | 3 |
| 控制器系列 | :PIC16F | 标准交期 | 14 weeks |
| 射频系列/标准 | PIC16 | 微控制器特性 | :2 PWM, Brown- Out Detection, Watchdog , In-System Programming |
| A/D转换器数量 | :5 | ||
环境参数
| 温度范围 | :Industrial | 测试温度 | -40°C |
| 工作温度 | -40 to 85 °C | 结工作温度 | 85C |
文档与媒体
相关型号
DV164131
microchip
PICKIT 3 InCircuit Debugger/Programmer Uses InCircuit Debugging Logic Incorporated In-Circuit Debuggers PICkit 3 Debug Exprs PICkit 3 Debug Express KIT STARTER PICKIT 3 DV164131, Development Kit, 16 bit, PIC DEBUG EXPRESS, PICKIT 3, PIC, DSPIC PICKit3Debugger/Programmer Programmer: microcontrollers; USB; ICSP, USB B mini PICkit 3 Debug Express PC hosted mode, DV164131, Microchip Microchip 16 位 MCU 微控制器开发套件
PIC16F886-I/SO
microchip
MCU 8-Bit PIC16 PIC RISC 14KB Flash 5V 28-Pin SOIC W Tube MCU 8-bit PIC16 PIC RISC 14KB Flash 5V 28-Pin SOIC W Tube 8 bit MCU SOIC28 IC MCU 8BIT 14KB FLASH 28SOIC PIC16F886-I/SO, 8 bit Microcontroller PIC 20MHz 8192 Flash, 368B RAM, I2C SPI 28-Pin SOIC IC, 8BIT MCU, PIC16F, 20MHZ, 28SOIC MCU,8-Bit,8KWFlash,368RAM,25I/O,SOIC-28 PIC microcontroller; EEPROM:256B; SRAM:368B; 20MHz; SO28; 2÷5.5V Microcontroller 8 Bit SO-28, PIC16F886-I/SO, Microchip Microchip PIC16F 系列 8 bit PIC MCU, 20MHz, 8192 字 ROM 闪存, 368 B RAM, 28针 SOIC封装 8-bit Microcontrollers - MCU 14KB Flash 368 RAM 25 I/O PIC16F 14K SOIC28 85°C
DM163022
microchip
Demonstration Board To Support Different PIC Microcontroller Devices Development Boards & Kits - PIC / DSPIC PICDEM 2 Plus PIC16C62/63/64/65/73/74 Demo-B BOARD DEMO PICDEM-2 PLUS PICDEM 2 PLUS, LCD, DEMO BOARD PICDEM2PlusDemoBoardforPIC16xxxandPIC18xxxDevices
DV164005
microchip
In Circuit Debugger MPLAB ICD 2 Module Is A Low Cost Development Tool That Connects Between The PC And The Designers Target Board In-Circuit Debuggers MPLAB ICD2 KIT ICD2 SIMPLE SUIT W/USB CABLE KIT ICD2 SIMPLE SUIT W/USB CABLEIN-CIRCUIT DEBUGGER MPLAB ICD 2, FOR PIC, DSPIC, ICD I/F MPLABIN-CIRCUITDEBUGGER2MODULE(ICD2MODULEANDUSBCABLE)
DV164035
microchip
MPLAB ICD 3 In Circuit Debugger In-Circuit Debuggers MPLAB ICD3 MPLAB ICD3 In-Circuit Debugger MPLAB ICD3 IN-CIRC DEBUGGER DV164035, Programmer, 16 bit, PIC DEBUGGER, MPLAB ICD 3, DSPIC FOR PIC MPLAB ICD 3 In-Circuit Debugger Kit MPLABICD3IncircuitDebugger Programmer: microcontrollers; USB; No.of diodes:3 In-Circuit Debugger/Programmer ICD3 PC hosted mode, DV164035, Microchip Microchip MPLAB ICD 3 在线调试器 处理器和微控制器开发套件
PG164120
microchip
PICKit 2 Development Programmer Only Programmers - Processor Based PICkit2 Microcon- troller Programmer PICKIT 2 Programmer PROGRAMMER MCU PICKIT 2 PG164120, Programmer, 8 bit, PIC, A to Mini B USB Cable PROGRAMMER, PICKIT 2, FULL SPEED USB PICKIT2MICROCONTROLLERPROGRAMMER Programmer: microcontrollers; USB; ICSP, USB B; No.of diodes:3
SW500005
microchip
Compiler, HI Tech C Compiler For PIC10/12/16 MCUs Development Software HI-TECH PICC STD Compiler Hi-Tech C Comp.for PIC10/PIC12/PIC16ROHS PICC STD Compilers,HI-TECHCCompilerforPIC10/12/16MCUs-Standard Hi-Tech C Compiler for PIC10/12/16 Microcontrollers
DM163022-1
microchip
Picdem 2 Plus Board Demonstrates The Capabilities Of Microchips 8-Bit Microcontrollers Development Boards & Kits - PIC / DSPIC PICDEM 2 Plus PICDEM 2 Plus BOARD DEMO PIC16F87X PIC18FXX2 PICDEM 2 Plus w/ ICD interface PIC16F, PICDEM 2 PLUS, DEMO BOARD Development kit: Microchip; PIC16; Connector type: RJ12 PICDEM 2 Plus PC hosted mode PIC16F1937-I/P 9 V, DM163022-1, Microchip Microchip 8 位 MCU 开发套件
PIC16F876-20I/SO
microchip
MCU 8-bit PIC16 PIC RISC 14KB Flash 5V 28-Pin SOIC W Tube 8 bit MCU SOIC28 IC MCU 8BIT 14KB FLASH 28SOIC 8-bit Microcontrollers - MCU 14KB 368 RAM 22 I/O 8BIT FLASH MCU, SMD, 16F876, SOIC28 8BIT FLASH MCU, SMD, TUBE27, 16F876 28-Pin,7KBFlash,368RAM,22I/O Microcontroller 8 Bit SOIC-28,20 MHz, PIC16F876-20I/SO, Microchip PIC16F 7K SOIC28 85°C
PA-SOD-2808-28
Logical Systems Inc.
ADAPTER 28-SOIC TO 28-SOIC
RE932-08
Roth Elektronik

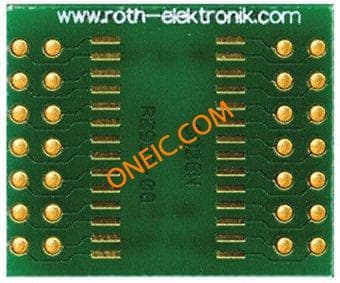

RE932-08, Surface Mount (SMT) Board SOIC Epoxy Glass Double-Sided 25.5 x 21 x 1.5mm FR4 ADAPTOR, SMD, SO-28W, 1.27MM Board: universal; multiadapter; W:21mm; L:25.5mm; SO28W Laboratory card FR4 Epoxide + chem. Ni/Au SO28w Adapter, RE932-08, Roth Elektronik
