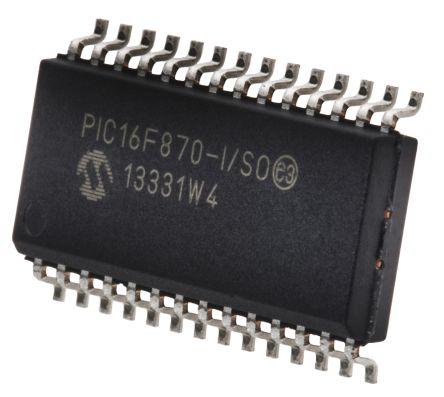

点击放大查看
PIC16F870-I/SO
| 制造商 | Microchip Technology Inc. |
| 描述 | MCU 8-bit PIC16 PIC RISC 3.5KB Flash 5V 28-Pin SOIC W Tube 8 bit MCU SOIC28 IC MCU 8BIT 3.5KB FLASH 28SOIC PIC16F870-I/SO, 8 bit Microcontroller PIC 20MHz 2K x 14, 64 x 8words Flash, 128B RAM, 28-Pin SOIC 8-bit Microcontrollers - MCU 3.5KB 128 RAM 22 I/O MCU 8-Bit PIC16 RISC 3.5KB Flash 5V 28-Pin SOIC W Tube 8BIT FLASH MCU, SMD, 16F870, SOIC28 8BIT FLASH MCU, SMD, TUBE27, 16F870 28-Pin,7KBFlash,128RAM,22I/O PIC microcontroller; EEPROM:64B; SRAM:128B; 20MHz; SO28; 2÷5.5V Microcontroller 8 Bit SO-28, PIC16F870-I/SO, Microchip Microchip PIC16F 系列 8 bit PIC MCU, 20MHz, 2K x 14 字，64 x 8 字 ROM 闪存, 128 B RAM, 28针 SOIC封装 PIC16F 7K SOIC28 85°C |
| 分类 |
商业参数
| 最小起订量 | 1 | 单位包装 | 27 |
| 其他名称 | PIC16F870ISO | 产品类别 | 8-bit Microcontrollers - MCU |
| 标准包装数量 | Rail / Tube | 工厂包装数量 | 27 |
合规参数
| RoHS | Lead free / RoHS Compliant | SVHC | :No SVHC (20-Jun-2013) |
| 海关税号 | 85423190 | 零件状态 | :16F870 |
| 无铅定义 | RoHS-conform | ||
电气参数
| 输入端 | 22 | 转速 | 20 MHz |
| 定时器 | 1 x 16 bit, 2 x 8 bit | 存储器 | 3.5KBytes |
| RAM 大小 | 128 byte | 内核大小 | 8-Bit |
| 核心类型 | PIC | 接口 | USART |
| 时钟速率 | 20 MHz | 比较器数量 | 0 |
| 分辨率 | 10bit | EEPROM容量 | 64 x 8 |
| 存储器容量 | 128 B | 存储器类型 | FLASH |
| I/O 数量 | 22 | 电压范围 | 2-5.5V |
| 位数 | :8 | 额定电压 | 4 → 5.5 V |
| 看门狗定时器 | 1 | 时钟频率 | :20MHz |
| 数据转换器 | A/D 5x10b | 最大频率 | 20MHz |
| DAC数量 | 1 | 振荡器类型 | External |
| 供电电压 | 5 V | 分辨率（位） | 10bit |
| 通道数量 | 0 | 模拟输入/输出 | 5-Channel,10-Bit |
| 非易失性存储器 | 64Bytes | 程序存储器大小 | 3.5 KB |
| 程序存储器类型 | Flash | ADC/DAC 数量 | 5 |
| 8位定时器数量 | 2 | 最小供电电压 | 2...5.5V |
| 频率（中心/带宽） | 16 bit, 8 bit | 最大功耗 | 1000 mW |
| 每元件位数 | 10 bit | 供电电压 (Vcc/Vdd) | 4 V ~ 5.5 V |
机械参数
| 宽度 | 7.59mm | 高度 | 2.39mm |
| 长度 | 18.08mm | 重量 | 0.000001 |
| 包装方式 | Tube | 端接方式 | :SMD |
| 安装类型 | Surface Mount | 安装样式 | SMD/SMT |
| 引脚数 | :28 | 封装形式 | 28SOIC W |
| 冷却的封装 | SOIC | 材料表面处理 | :MSL 1 - Unlimited |
| 包装数量 | 27 | 尺寸/外形 | 18.08 x 7.59 x 2.39mm |
| 位数 | 28 | 供应商器件封装 | 28-SOIC |
| 核心数/总线宽度 | 8 Bit | 脉冲宽度失真（最大） | 1(10 bit) (CCP) |
产品信息
| SPG | 27 | USB | 0 |
| 类型 | PIC microcontroller | 系列 | PIC16 |
| 匹配码 | PIC16F870-I/SO | 闪存大小 | :3.5KB |
| 片内RAM（通道数×位宽） | 5-chx10-bit | 外设 | Brown-out Detect/Reset, POR, PWM, WDT |
| 架构 | RISC | 连接性 | UART/USART |
| 核心处理器 | PIC | 单元数量 | 1 |
| 定时器数量 | 3 | 控制器系列 | :PIC16F |
| 标准交期 | 17 weeks | 射频系列/标准 | PIC16 |
| 微控制器特性 | :One Capture, Compare, PWM, USART, Parallel Slave Port, Brown-out detection, Watchdog | A/D转换器数量 | :5 |
环境参数
| 温度范围 | :Industrial | 测试温度 | -40°C |
| 工作温度 | -40 to 85 °C | ||
