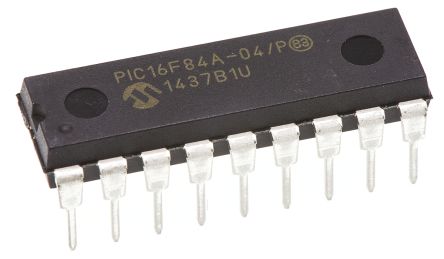

PIC16F84A-04/P
| 制造商 | Microchip Technology Inc. |
| 描述 | MCU 8-bit PIC16 PIC RISC 1.75KB Flash 5V 18-Pin PDIP Tube 8-bit Microcontrollers - MCU 1.75KB 68 RAM 13 I/O 4MHz PDIP18 8 bit MCU PDIP18 IC MCU 8BIT 1.75KB FLASH 18DIP IC, 8-BIT FLASH MCU, TUBE25 IC, 8BIT MCU, PIC16F, 4MHz, DIP-18 IC, 8BIT FLASH MCU, 16F84, DIP18 18-Pin,1.75KBFlash,68RAM,13I/O PIC microcontroller; EEPROM:64B; SRAM:68B; 4MHz; DIP18; 2÷6V Microcontroller 8 Bit DIL-18, PIC16F84A-04/P, Microchip Microchip PIC16F 系列 8 bit PIC MCU, 4MHz, 1024 x 14 字，64 x 14 字 ROM 闪存, 68 B RAM, 18针 PDIP封装 PIC16F 1,75K PDIP18 70°C |
| 分类 |
商业参数
| 最小起订量 | 1 | 单位包装 | 25 |
| 其他名称 | PIC16F84A04P | 产品类别 | 8-bit Microcontrollers - MCU |
| 标准包装数量 | Rail / Tube | 工厂包装数量 | 25 |
| 标准封装名称 | PDIP | ||
合规参数
| RoHS | RoHS Compliant | SVHC | :No SVHC (20-Jun-2013) |
| 欧盟RoHS | Compliant | 海关税号 | 85423190 |
| 零件状态 | :16F84 | 抗辐射加固 | No |
| 无铅定义 | RoHS-conform | 认证机构 | No |
电气参数
| 输入端 | 13 | 转速 | 4 MHz |
| 定时器 | 1-8-bit | 存储器 | 1.75KBytes |
| RAM 大小 | 68 byte | 内核大小 | 8-Bit |
| 核心类型 | PIC | 频率 | 4 MHz |
| 接口 | :- | 时钟速率 | 20 MHz |
| 比较器数量 | 0 | EEPROM容量 | 64 x 8 |
| 存储器容量 | 68 B | 存储器类型 | FLASH |
| I/O 数量 | 13 | 电压范围 | 2-5.5V |
| 位数 | :8 | 额定电压 | 4 |
| 看门狗定时器 | 1 | 时钟频率 | :4MHz |
| 最大频率 | 4MHz | 振荡器类型 | External |
| 供电电压 | 5 V | 模拟输入/输出 | 0 |
| 非易失性存储器 | 64Bytes | 程序存储器大小 | 1.75 KB |
| 程序存储器类型 | Flash | 8位定时器数量 | 1 |
| 最小供电电压 | 4 V | 最大功耗 | 800 mW |
| 供电电压 (Vcc/Vdd) | 4 V ~ 5.5 V | ||
机械参数
| 宽度 | 6.35 | 重量 | 0.0002 |
| 包装方式 | Tube | 引脚样式 | Through Hole |
| 端接方式 | :Through Hole | 安装类型 | Through Hole |
| 安装样式 | Through Hole | 引脚数 | :18 |
| 封装形式 | 18PDIP | 冷却的封装 | PDIP |
| 材料表面处理 | :- | 总长度 | 22.86 |
| 包装数量 | PDIP | 位数 | 18 |
| 外壳尺寸-插件 | 3.3 | 供应商器件封装 | 18-PDIP |
| 核心数/总线宽度 | 8 Bit | ||
产品信息
| SPG | 200 | 类型 | PIC microcontroller |
| 系列 | PIC16 | 已删除 | Compliant |
| 匹配码 | PIC16F84A-04/P | 闪存大小 | :1.75KB |
| 片内RAM（通道数×位宽） | No | 外设 | POR, WDT |
| 架构 | RISC | 可编程性 | Yes |
| 核心处理器 | PIC | 单元数量 | 1 |
| 定时器数量 | 1 | 控制器系列 | :PIC16F8xx |
| 标准交期 | 14 weeks | 射频系列/标准 | PIC16 |
| 使用的IC/零件 | :PIC16F84A-04/P | DigiKey可编程 | Yes |
| 印刷电路板数量 | 18 | 微控制器特性 | :1 Kbytes FLASH |
环境参数
| 温度范围 | :Commercial | 测试温度 | 0°C |
| 工作温度 | 0 to 70 °C | 结工作温度 | 70C |
