点击放大查看

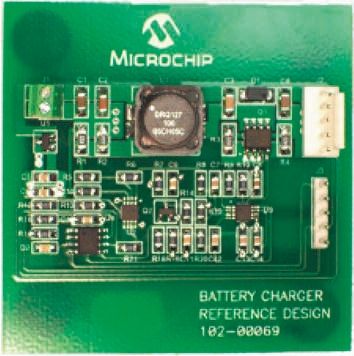

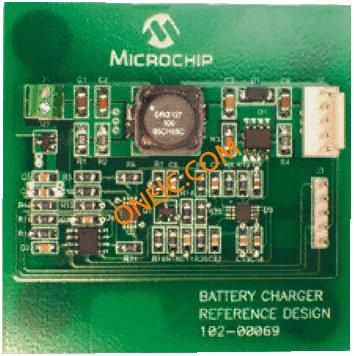

MCP1630RD-LIC2
| 制造商 | |
| 描述 | MCP1630 Low Cost Li-ion Battery Charger MCP1630 Low Cost Li-Ion Battery Char BOARD DEMO FOR MCP1630 LI-ION Development Kit, Power Management With Li-Ion Battery Charger Design Board for MCP1630 Battery Management Lo Cost Li-Ion Battery Chrgr Ref MCP1630, BATTARY CHARGER, REF DESIGN Microchip Li-Ion 套件 MCP1630 电池充电器 参考设计 |
| 分类 |
商业参数
| 最小起订量 | 5 | 单位包装 | 1 |
| 产品类别 | Battery Management | 标准包装数量 | Bulk |
| 工厂包装数量 | 1 | ||
合规参数
| RoHS | Contains lead / RoHS non-compliant | SVHC | :No SVHC (20-Jun-2013) |
| 海关税号 | 85423190 | ||
电气参数
| 核心类型 | :(Not Available) | 元件数量 | :MCP1630 |
机械参数
| 重量 | 0.25 | ||
产品信息
| 类型 | Development Kit | 内容 | Board, Software |
| 嵌入式 | Yes, MCU, 8-Bit | 产品特性 | :Overvoltage/Overtemperature Protection, Over Current Protection in the Event of a Shorted Battery |
| 套件类型 | :Power Management - Battery | 技术 | Power Management |
| 套件内容 | Li-Ion Battery Charger Design Board for MCP1630 | 主要用途 | Power Management, Battery Charger |
| 制造商全称 | :(Not Available) | 卡标准 | Development Kit |
| 工具类型/特性 | :Evaluation Board | 主要特性 | 3 Cells- NiMH / NiCd, 1.35A Out, 6V ~ 14 V Input |
| 使用的IC/零件 | MCP1630 | 芯片组制造商 | :Microchip |
| 次要特性 | Preconditioning, Cell Temperature and Batt Pack Fault Monitoring | 应用细节 | :Battery Charger |
| 支持MCU系列 | :MCP1630, PIC12Fxxx | 适用产品/相关产品 | :MCP1630 |
