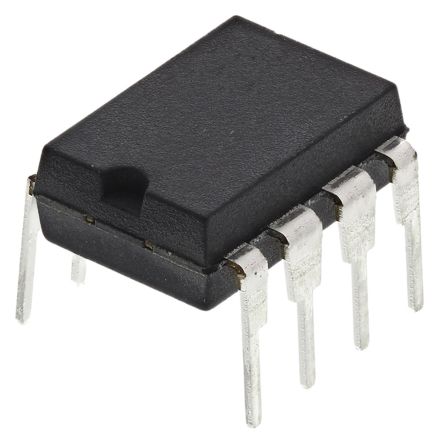

PIC12F683-E/P
| 制造商 | Microchip Technology Inc. |
| 描述 | MCU 8-bit PIC12 PIC RISC 3.5KB Flash 5V 8-Pin PDIP Tube 8-bit Microcontrollers - MCU 3.5KB 128 RAM 6 I/O 3.5 KB Flash, 128 RAM, 6 I/O IC MCU 8BIT 3.5KB FLASH 8DIP MCU 8-Bit PIC12 PIC RISC 3.5KB Flash 5V 8-Pin PDIP Tube IC, MCU, 8-BIT, 3.5K FLASH, PDIP8 8-Pin,3.5KBFlash,128RAM,6I/O,PDIP Microcontroller 8 Bit DIL-8, PIC12F683-E/P, Microchip Microchip PIC12F 系列 8 bit PIC MCU, 32MHz, 2048 B ROM 闪存, 128 B RAM, 8针 PDIP封装 |
| 分类 |
商业参数
| 最小起订量 | 500 | 单位包装 | 60 |
| 产品类别 | 8-bit Microcontrollers - MCU | 标准包装数量 | Rail / Tube |
| 工厂包装数量 | 60 | ||
合规参数
| RoHS | RoHS Compliant | SVHC | :No SVHC (20-Jun-2013) |
| 海关税号 | 85411000 | 零件状态 | :12F683 |
| 抗辐射加固 | No | ||
电气参数
| 输入端 | 6 | 转速 | 20 MHz |
| 定时器 | 2-8-bit,1-16-bit | 存储器 | 3.5KBytes |
| RAM 大小 | 128 byte | 内核大小 | 8-Bit |
| 核心类型 | PIC | 频率 | 20 MHz |
| 接口 | RS-232, USB | 时钟速率 | 20 MHz |
| 比较器数量 | 1 | EEPROM容量 | 256 x 8 |
| 存储器容量 | 128 B | 存储器类型 | Flash |
| I/O 数量 | 6 | 电压范围 | 2-5.5V |
| 位数 | 8 | 看门狗定时器 | 1 |
| 时钟频率 | :20MHz | 数据转换器 | A/D 4x10b |
| DAC数量 | :1 | 振荡器类型 | Internal |
| 供电电压 | 5 V | 串行接口 | None |
| 通道数量 | 4 | 模拟输入/输出 | 4-Channel,10-Bit |
| 非易失性存储器 | 256Bytes | 程序存储器大小 | 3.5 KB |
| 程序存储器类型 | Flash | 最小供电电压 | 4.5 V |
| 最大功耗 | 800 mW | 每元件位数 | 10 bit |
| 供电电压 (Vcc/Vdd) | 2 V ~ 5.5 V | ||
机械参数
| 重量 | 0.000833 | 包装方式 | Tube |
| 端接方式 | :Through Hole | 安装类型 | Through Hole |
| 安装样式 | Through Hole | 引脚数 | :8 |
| 封装形式 | 8PDIP | 冷却的封装 | PDIP |
| 材料表面处理 | :- | 位数 | 8 |
| 供应商器件封装 | 18-PDIP | 核心数/总线宽度 | 8 Bit |
产品信息
| 系列 | PIC12 | 闪存大小 | :3.5KB |
| 片内RAM（通道数×位宽） | 4-chx10-bit | 外设 | Brown-out Detect/Reset, POR, PWM, WDT |
| 架构 | RISC | 可编程性 | Yes |
| 核心处理器 | PIC | 定时器数量 | 3 |
| 控制器系列 | :PIC12F6xx | 射频系列/标准 | PIC12 |
| A/D转换器数量 | :4 | ||
环境参数
| 温度范围 | :Extended | 工作温度 | -40 to 125 °C |
| 结工作温度 | 125C | ||
