点击放大查看
DM183026-2
| 制造商 | Microchip Technology Inc. |
| 描述 | Enhanced Mtouch Capacitive Touch Evaluation Kit Touch Sensor Development Tools mTouch Cap Touch Eval Kit mTouch Cap Touch Eval Kit KIT EVAL MTOUCH CAPACTIVE DM183026-2, Development Kit, Sensor & Transducer, PIC, 12-Key Matrix Sensor Board PIC16F, CAP TOUCH SENSOR, EVAL KIT mTouchCapTouchEvalKit Development kit: Microchip; for capacitive keyboards |
| 分类 |
商业参数
| 最小起订量 | 2 | 单位包装 | 1 |
| 其他名称 | DM1830262 | 标准包装数量 | Boxed |
合规参数
| RoHS | RoHS Compliant | SVHC | :No SVHC (20-Jun-2013) |
| 欧盟RoHS | Supplier Unconfirmed | 海关税号 | 85437090 |
| 无铅定义 | RoHS-conform | ||
电气参数
| 核心类型 | PIC | 接口 | I2C, UART, USB |
| 传感器类型 | Touch, Capacitive | 感应范围 | 8 and 12 Buttons/Keys, 2 Sliders |
| 供电电压 | 5V, USB | 元件数量 | :(Not Applicable) |
| 最小供电电压 | 5 V | ||
机械参数
| 重量 | 0.25 | 连接器类型 | ICSP |
| 核心数/总线宽度 | 32 bit | ||
产品信息

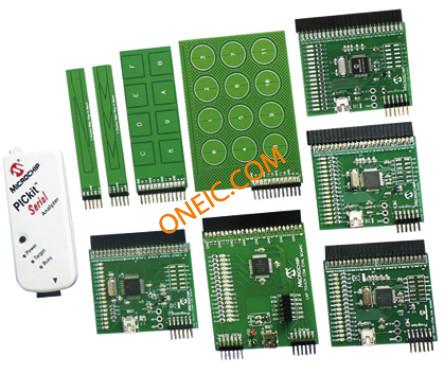

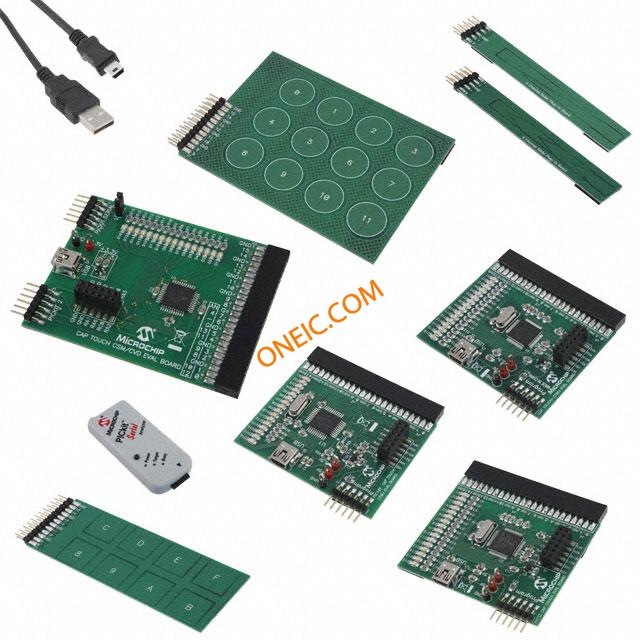

| 类型 | Development Kit | 内容 | 8 Boards, Cable, PICkit™ Serial Analyzer |
| 嵌入式 | Yes | 产品特性 | :Diagnostic Tool Provided, Vertical 2-row Header, Debugging, USB Connection |
| 套件类型 | :Sensing - Touch, Proximity | 匹配码 | MTOUCH CAP TOUCH EVAL KIT |
| 技术 | Sensor & Transducer | 套件内容 | 12-Key Matrix Sensor Board |
| 卡标准 | Development Kit | 开发套件 | EVALBOARD |
| 单元数量 | 1 | 标准交期 | 6 weeks |
| 工具类型/特性 | PIC16F, PIC24F, PIC18F, PIC32 | 使用的IC/零件 | PIC16F, PIC18F, PIC24F, PIC32MX |
| 芯片组制造商 | :Microchip | 应用细节 | :Capacitive Touch |
| 支持MCU系列 | :PIC16F, PIC18F, PIC24F and PIC32 | ||
