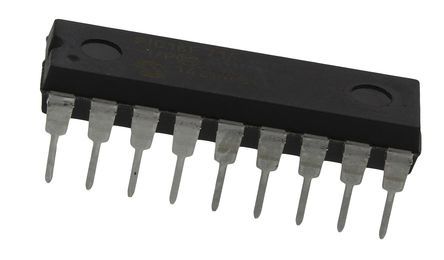

点击放大查看
PIC16F716-I/P
| 制造商 | Microchip Technology Inc. |
| 描述 | Buy now, ships today. PIC16F716-I/P - PIC PIC® 16F Microcontroller IC 8-Bit 20MHz 3.5KB (2K x 14) FLASH 18-PDIP from Microchip Technology. View datasheets, pricing and availability from DigiKey now! |
| 分类 |
商业参数
| 最小起订量 | 1 | 单位包装 | 25 |
| 其他名称 | PIC16F716IP | 标准包装数量 | Rail / Tube |
合规参数
| RoHS | Lead free / RoHS Compliant | SVHC | :No SVHC (20-Jun-2013) |
| 海关税号 | 85423190 | 零件状态 | :16F716 |
| 抗辐射加固 | No | 无铅定义 | RoHS-conform |
电气参数
| 输入端 | 13 | 转速 | 20 MHz |
| 定时器 | 2-8-bit,1-16-bit | 存储器 | 3.5KBytes |
| RAM 大小 | 128 byte | 内核大小 | 8-Bit |
| 核心类型 | PIC | 频率 | 20 MHz |
| 接口 | RS-232/USB | 比较器数量 | 0 |
| 存储器容量 | 3.5KByte | 存储器类型 | FLASH |
| 显示类型 | no | I/O 数量 | 13 |
| 电压范围 | 2-5.5V | 位数 | :8 |
| 时钟频率 | :20MHz | 数据转换器 | A/D 4x8b |
| 最大频率 | 20MHz | DAC数量 | 1 |
| 振荡器类型 | Internal | 供电电压 | 2.5|3.3|5 V |
| 数字I/O线数 | 13pins | 分辨率（位） | 8Bit |
| 通道数量 | 0 | 模拟输入/输出 | 4-Channel,8-Bit |
| 非易失性存储器 | 0Bytes | 程序存储器大小 | 28 KB |
| 程序存储器类型 | Flash | ADC/DAC 数量 | 4channels |
| 最小输入电压 | 5.5V | 8位定时器数量 | 2 |
| 最小供电电压 | 2 V | 最大功耗 | 1000 mW |
| 每元件位数 | :8 | 供电电压 (Vcc/Vdd) | 2 V ~ 5.5 V |
机械参数
| 重量 | 0.000001 | 包装方式 | TUBE |
| 安装类型 | Through Hole | 引脚数 | :18 |
| 封装形式 | 18PDIP | 冷却的封装 | PDIP |
| 材料表面处理 | :- | 包装数量 | 550 |
| 位数 | 18 | 供应商器件封装 | 18-PDIP |
| 核心数/总线宽度 | 8 Bit | ||
产品信息
| SPG | 550 | USB | No |
| 类型 | PIC microcontroller | 匹配码 | PIC16F716-I/P |
| CAN编号 | 0 | 闪存大小 | :3.5KB |
| SPI编号 | 0 | 片内RAM（通道数×位宽） | 4-chx8-bit |
| 外设 | Brown-out Detect/Reset, POR, PWM, WDT | 架构 | RISC |
| 可编程性 | Yes | 核心处理器 | PIC |
| 单元数量 | 1 | 定时器数量 | 3 |
| 控制器系列 | :PIC16F | 标准交期 | 17 weeks |
| 射频系列/标准 | PIC16 | 使用的IC/零件 | :PIC16F716-I/P |
| 微控制器特性 | :POR, PWRT, OST, WDT, ICSP, ECCP. | A/D转换器数量 | :4 |
环境参数
| 温度范围 | :Industrial | 测试温度 | -40°C |
| 工作温度 | -40 to 85 °C | 结工作温度 | 85C |
