162.6185.4102
| 制造商 | |

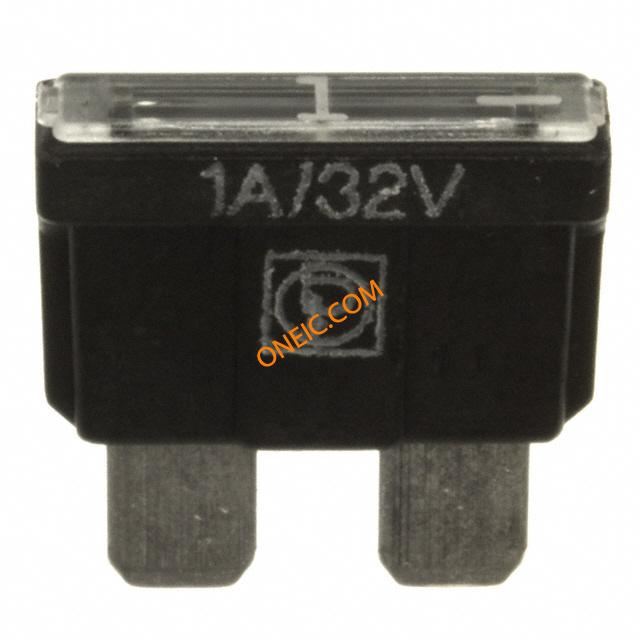

| 描述 | Automotive Fuses FKS 1A Fuse -FKS 32VDC/1000A ISO 8820 1A 2000pc FUSE BLADE FAST 1A 32V BLACK FKS Fuse ATO 1 A 32 VDC black, 162.6185.4102, Littelfuse |
| 分类 |
商业参数
| 最小起订量 | 1 | 产品 | Automotive Fuses |
| 单位包装 | 0 | 产品类别 | Automotive Fuses |
| 标准包装数量 | 2,000 | 工厂包装数量 | 2000 |
合规参数
| RoHS | No | 认证机构 | cULus |
电气参数
| 指示器 | Without Indicator | 接口 | 2 A²s |
| 电阻 | 0.108 Ohms | 熔断I²t | 2 |
| 响应时间 | Fast | 额定电压 | 32 V |
| 中断输出 | 1 kA at 32 V | 直流冷态电阻 | 0.108 Ohm |
| 最大额定电流 | 1 A | 最小供电电压 | 1000A |
机械参数
| 颜色 | Black | 宽度 | 19 mm |
| 包装方式 | Bulk | 安装类型 | Holder |
| 安装样式 | Holder | 封装形式 | 5 mm |
| 尺寸/外形 | 19.7 mm L x 19 mm W | 端接样式 | Blade |
| 连接器颜色 | black | ||
产品信息
| 类型 | FKS ATO Style Blade Fuse | 系列 | 162.6185 FKS |
| 保险丝尺寸 | ATO | 保险丝类型 | Fast Blow |
| 产品子类型 | Blade Fuse | ||
