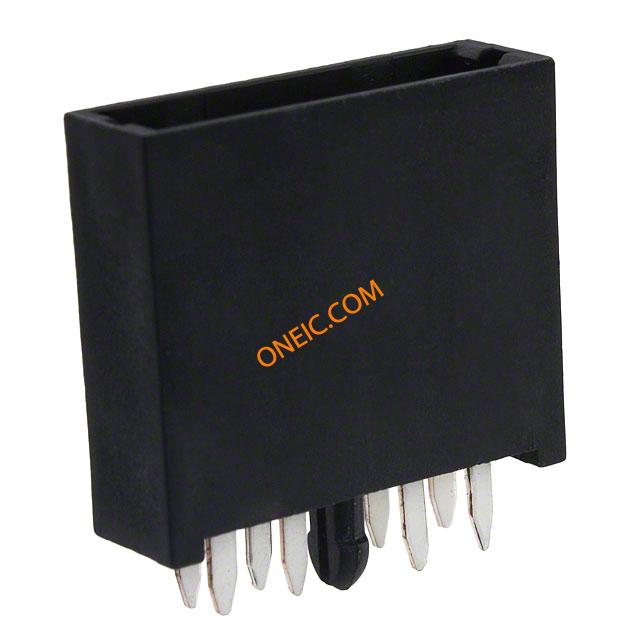

芯天下
178.6165.0002

点击放大查看

178.6165.0002

制造商
Littelfuse, Inc.
描述
Fuse Holders FLR (ATO) PCB 4-pin Holder Fuse Holder 80V Pin Through Hole FLR p.c.p. holder black 4 pins FUSE HOLDER BLADE 80V PCB FUSE HOLDER, PCB MOUNT Fuse Holder FLR (ATO) PCB 4-pin Holder
分类
电路保护解决方案保险丝座PCB安装保险丝座
对参数有疑问？问 AI 助手

商业参数

最小起订量500产品Fuse Holders
单位包装500产品类别Fuse Holders
标准包装数量500工厂包装数量500

合规参数

RoHSRoHS Compliant欧盟RoHSCompliant
海关税号85369010汽车级NO
无铅定义RoHS-conform

电气参数

电压80V额定电压80 V
极数1额定交流电压:80V
触点电压（最大）:80V每极负载侧连接方式:Solder

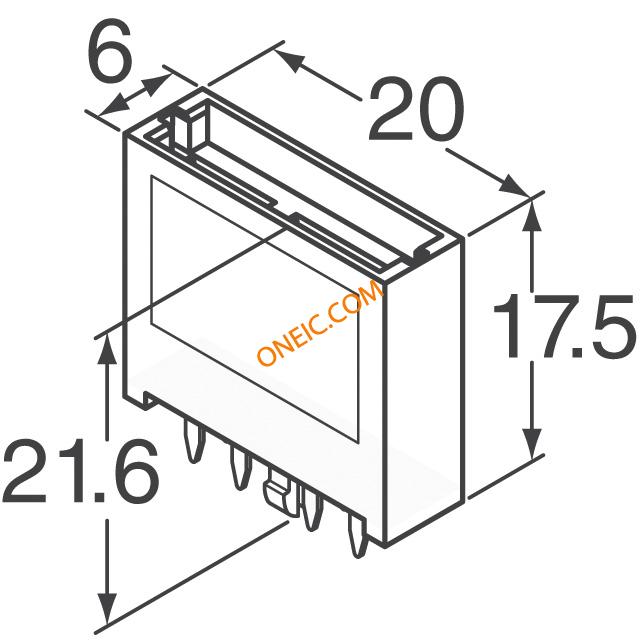

机械参数

颜色Black深度6 mm
高度17.5 mm重量0
包装方式Bulk方向Vertical
高度（最大）17.5安装类型PCB
接触镀层Tin安装样式Through Hole, Vertical
保险丝座类型Holder触头材料Copper Alloy
总长度20 mm端接样式PC Pin

产品信息

类型Fuse Holder系列1786000
已删除Compliant保险丝尺寸0.75" L x 0.2" W x 0.74" H (19.1mm x 5.1mm x 18.8mm)
保险丝类型Blade匹配码FUHAUTO
照明类型No标准交期14 weeks
电路数1附带电池数量:1
适用产品/相关产品ATC, ATO

文档与媒体

PDF 文档
Littelfuse_ATO-PCB-Fuse-holders-178.6765.pdf
PDF 文档
FLRHolder-58019.pdf
