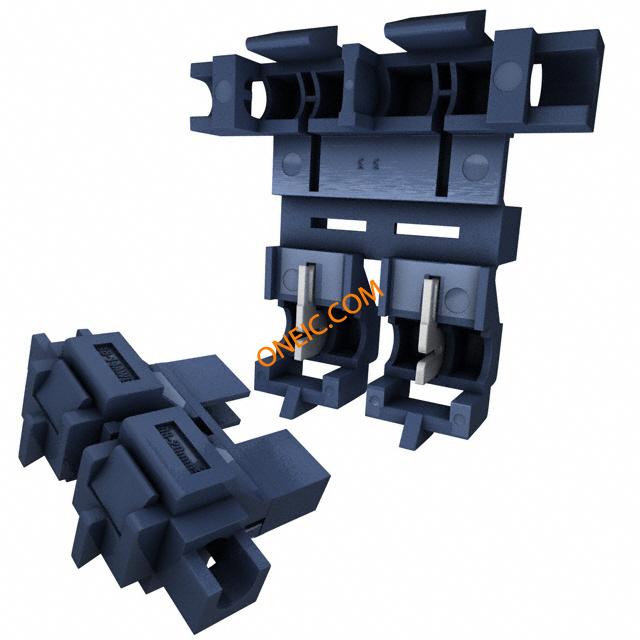

277.6106.0002

制造商	Littelfuse, Inc.
描述	Fuse Holders FK Holder FUSE HOLDER BLADE 32V IN LINE ATO In-Line Fuseholder 32V Fuse holder ATC / ATO / FKS, 277.6106.0002, Littelfuse Littelfuse, 32 V 直插式熔断器座 , 用于ATO 刀片形熔断器
分类	电路保护解决方案保险丝座线束保险丝座

对参数有疑问？问 AI 助手

商业参数

产品	Fuse Holders	产品类别	Fuse Holders
标准包装数量	200	工厂包装数量	250

合规参数

RoHS

In Transition

电气参数

电压	32V	额定电压	32 V
极数	1	供电电压	32V
最大额定电流	20 A

机械参数

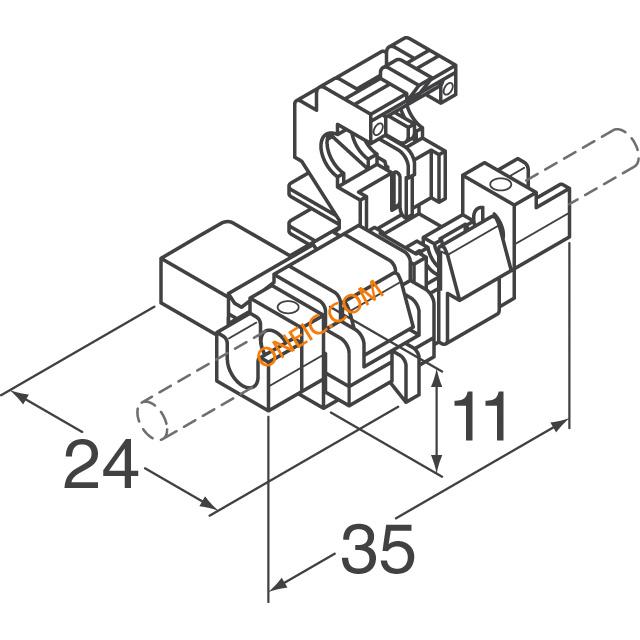

尺寸	22 x 11 x 24 mm	颜色	Blue
包装方式	Bulk	导线类型	2.5 mm²
基体材料	Thermoplastic	安装类型	Free Hanging In Line
接触镀层	Tin	安装样式	In-Line
保险丝座类型	Holder	触头材料	Copper Alloy
主要材料	热塑塑料	端接样式	Wire Leads
连接器颜色	blue	触点数	insulation displacement contacts, E-Cu

产品信息

系列	277.6106	保险丝尺寸	0.75" L x 0.2" W x 0.74" H (19.1mm x 5.1mm x 18.8mm)
保险丝类型	Blade	描述	Holder for quick mounting
照明类型	No	电路数	1
装配配置	Cable	适用产品/相关产品	ATC, ATO

文档与媒体

PDF 文档

FK32V-66553.pdf
