点击放大查看

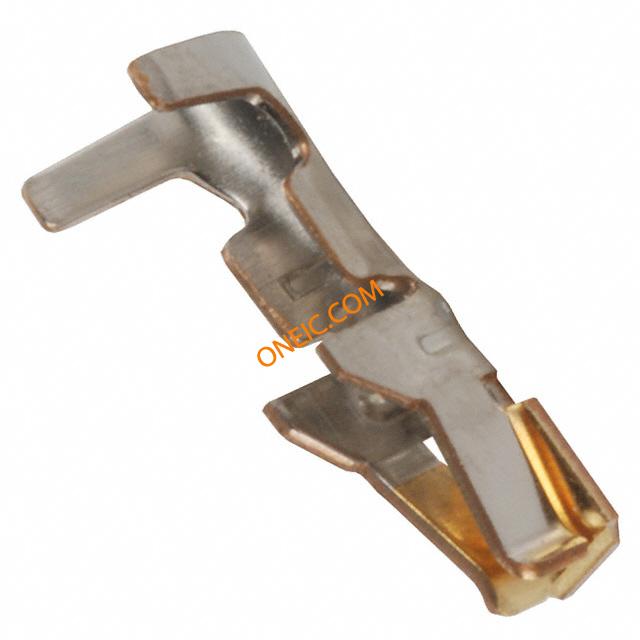

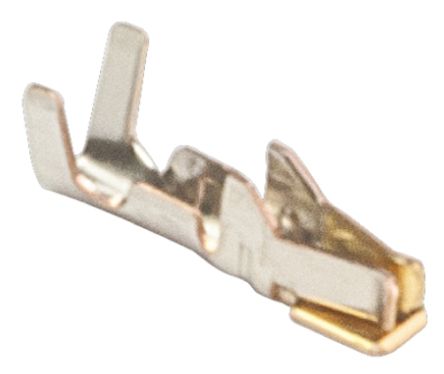

DF11-30SCA
| 制造商 | |
| 描述 | ヘッダ & ワイヤハウジング FEMALE CONTACT GLD 30AWG LOOSE CONN SOCKET 30AWG CRIMP GOLD Crimp Contact gold plated 30 AWG loose Headers & Wire Housings FEMALE CONTACT GLD 30AWG LOOSE DF11-30SCA Hirose DF11 系列 母 压接接线端子, 压接, 镀金触点 |
| 分类 |
商业参数
| 产品类别 | Headers & Wire Housings | 标准包装数量 | 100 |
| 工厂包装数量 | 100 | ||
合规参数
| RoHS | Compliant | ||
电气参数
| 额定电压 | 250 V | 接触电阻 | 30mΩ |
| 最大额定电流 | 2 A | ||
机械参数
| 包装方式 | Bulk | 导线线规 | 30 AWG |
| 端接方式 | Crimp | 插针或插孔 | Socket |
| 连接器类型 | 母座 | 接触镀层 | Gold |
| 触头材料 | Phosphor Copper | 端接排数 | 压接 |
| 端接样式 | Crimp | 第一触头极性 | Socket (Female) |
| 接触件端接 | Crimp | 线规或范围 - AWG | 30AWG |
产品信息
| 连接器性别 | Female | 系列 | DF11 |
| 产品子类型 | Contacts | 适用产品/相关产品 | DF11 Series Connector |
环境参数
| 工作温度 | +85°C | ||
