点击放大查看

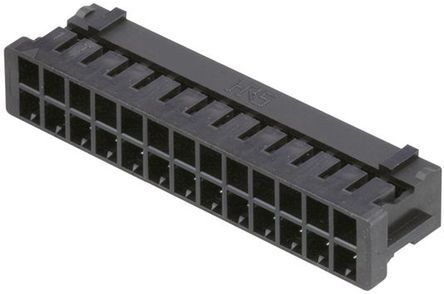

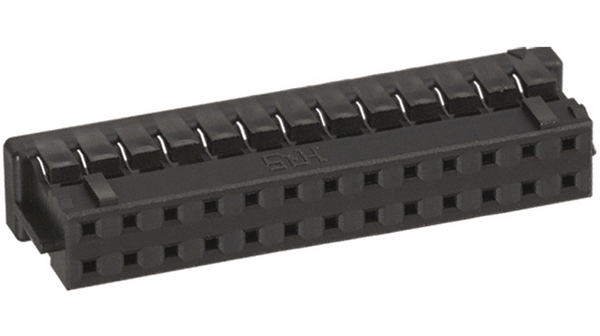

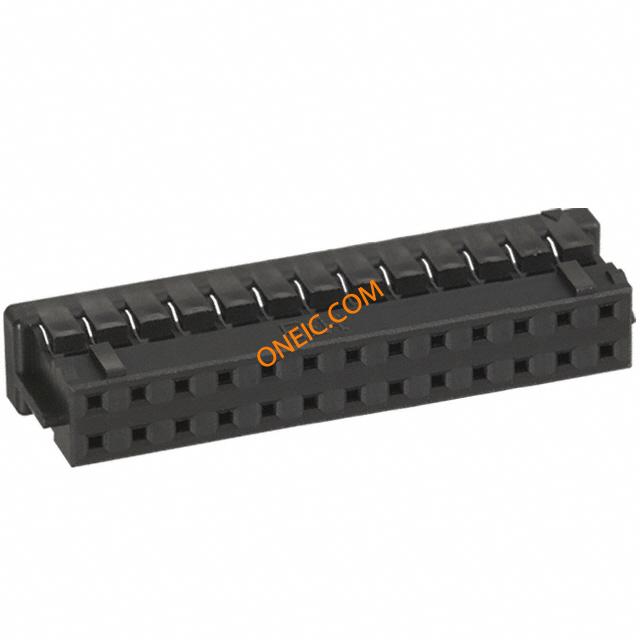

DF11-26DS-2C

制造商	Hirose Electric Co., Ltd.
描述	ヘッダ & ワイヤハウジング 2MM RECEPT HOUSING 26P DUALROW CRIMP CONN SOCKET 26POS 2MM DUAL CRIMP DF11 Crimp Housing, 26w, 2mm Headers & Wire Housings 2MM RECEPT HOUSING 26P DUALROW CRIMP Conn Housing PL 26 POS 2mm Crimp ST Panel Mount Bag Crimp housing Pitch2 mm Poles 2 x 13 DF11, DF11-26DS-2C, Hirose Hirose DF11 系列 2 行 2mm 节距 26 路直母电缆安装 PCB 壳体
分类	连接器解决方案板对板连接器板对板连接器

对参数有疑问？问 AI 助手

商业参数

产品类别	Headers & Wire Housings	标准包装数量	100
工厂包装数量	100

合规参数

RoHS

Compliant

材料阻燃等级

UL 94 V-0

电气参数

额定电压	250 V	极数	2 x 13
最大额定电流	2 A	最小供电电压	250VAC
连接器类型 - 电压输入	Crimp

机械参数

颜色	Black	深度	7.3mm
间距	0.079" (2.00mm)	宽度	5mm
高度	5 mm	长度	28mm
包装方式	Bulk	壳体颜色	24
导线线规	22-30 AWG	方向	直
排间距	0.079" (2.00mm)	触点形式	Female Socket
触头类型	Female Socket	引脚间距	0.079" (2.00mm)
外壳颜色	Black	安装类型	Free Hanging (In-Line)
连接器类型	Receptacle	排数	2
壳体材料	PA	总长度	28 mm
端接样式	Through Hole	第一触头极性	Socket (Female)
触点数	26	接触件端接	Crimp
位数	26

产品信息

备注	Contacts Not Provided	类型	Housing
连接器性别	Male	系列	DF11
已删除	Compliant	放大器类型	28
连接方式	Wire-Board	输出配置	Free Hanging (In-Line)
适用产品/相关产品	Double-Row Connector

环境参数

工作温度

-30C to 85C

文档与媒体

PDF 文档

DF11 Series

PDF 文档

e54305002.pdf
