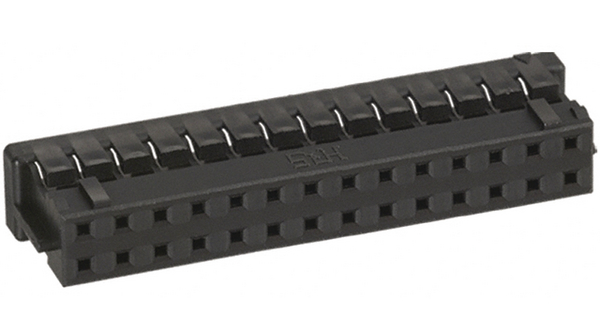

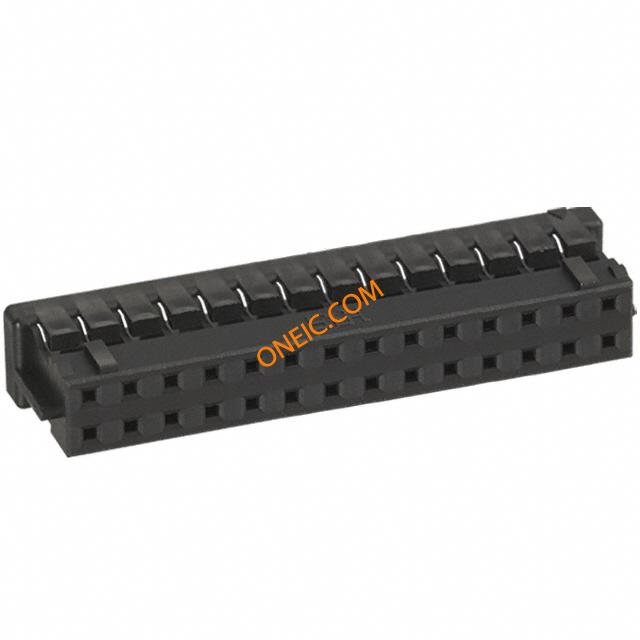

DF11-28DS-2C

制造商	Hirose Electric Co., Ltd.
描述	Headers & Wire Housings 2MM RECEPT HOUSING 28P DUALROW CRIMP CONN SOCKET 28POS 2MM DUAL CRIMP Conn Housing PL 28 POS 2mm Crimp ST Panel Mount Bag Crimp housing Pitch2 mm Poles 2 x 14 DF11, DF11-28DS-2C, Hirose
分类	连接器解决方案矩形连接器FPC/FFC矩形连接器

对参数有疑问？问 AI 助手

商业参数

产品类别	Headers & Wire Housings	标准包装数量	100
工厂包装数量	100

合规参数

RoHS

RoHS Compliant

材料阻燃等级

UL 94 V-0

电气参数

额定电压	250 V	极数	2 x 14
最大额定电流	2 A	最小供电电压	250VAC
连接器类型 - 电压输入	Crimp

机械参数

颜色	Black	深度	7.3 mm
间距	0.079" (2.00mm)	高度	5 mm
包装方式	Bulk	壳体颜色	26
导线线规	22-30 AWG	排间距	0.079" (2.00mm)
触点形式	Female Socket	触头类型	Female Socket
引脚间距	0.079" (2.00mm)	外壳颜色	Black
安装类型	Free Hanging (In-Line)	连接器类型	Receptacle
排数	2	壳体材料	Polyamide
总长度	30 mm	端接样式	Through Hole
第一触头极性	Socket (Female)	触点数	28
接触件端接	Crimp	位数	28

产品信息

备注	Contacts Not Provided	类型	Housing
连接器性别	PL	系列	DF11
已删除	Compliant	放大器类型	30
连接方式	Wire-Board	输出配置	Free Hanging (In-Line)

环境参数

工作温度

-30C to 85C

文档与媒体

PDF 文档

DF11 Series

PDF 文档

e54305002.pdf

相关型号

DF11-30SCF

Hirose Connector

Headers & Wire Housings FEMALE CONTACT TIN 30AWG REEL CONN SOCKET 30AWG CRIMP TIN

¥0.2712

详情

DF11G-28DP-2V(50)

Hirose Connector

Headers & Wire Housings 2MM V PCB HEADER 28P DR SMT GLD CONN HEADER 28POS 2MM SMD GOLD

详情

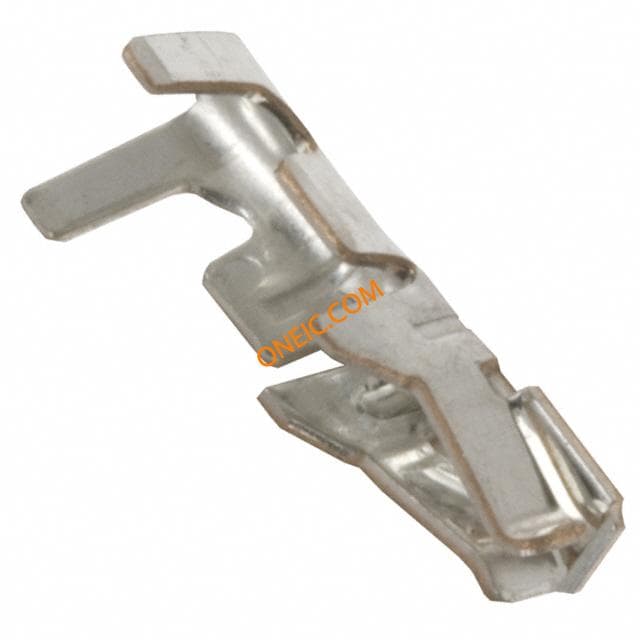

DF11-2428SCF

Hirose Connector

Headers & Wire Housings FEMALE CONTACT TIN 24-28AWG REEL CONN SOCKET 24-28AWG CRIMP TIN

¥0.3946

详情

DF11-30SCFA

Hirose Connector

ヘッダ & ワイヤハウジング FEMALE CONTACT GLD 30AWG REEL CONN SOCKET 30AWG CRIMP GOLD CONN SOCKET 30AWG CRIMP TIN Headers & Wire Housings FEMALE CONTACT GLD 30AWG REEL DF11-30SCFA

¥0.6583

详情

DF11-2428SCFA

Hirose Connector

ヘッダ & ワイヤハウジング FEMALE CONTACT GLD 24-28AWG REEL CONN SOCKET 24-28AWG CRIMP GOLD Headers & Wire Housings FEMALE CONTACT GLD 24-28AWG REEL

¥0.6583

详情

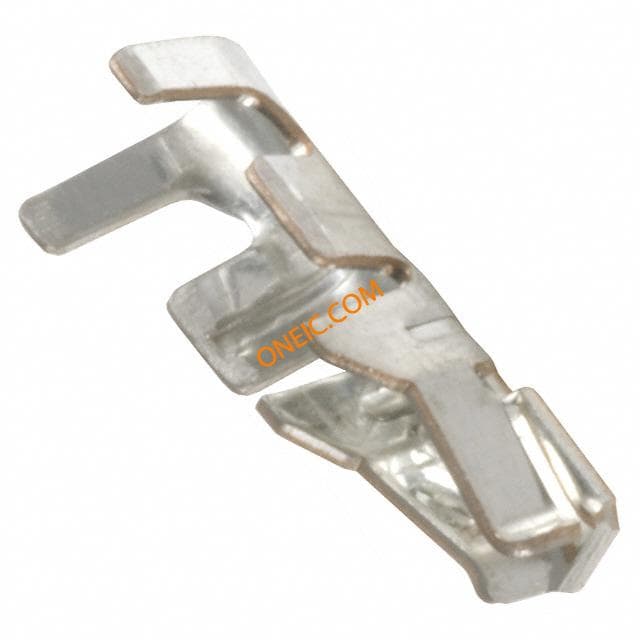

DF11-22SC

Hirose Connector

ヘッダ & ワイヤハウジング FEMALE CONTACT TIN 22AWG LOOSE CONN SOCKET 22AWG CRIMP TIN DF11 Crimp terminal AWG 22 Headers & Wire Housings FEMALE CONTACT TIN 22AWG LOOSE DF11-22SC DF11CrimpterminalAWG22 Crimp socket AWG22 Female 22 AWG, DF11-22SC, Hirose Hirose DF11 系列母压接接线端子, 压接, 镀锡触点

¥0.2856

详情

DF11-28DP-2DSA(01)

Hirose Connector

Headers & Wire Housings 2MM V PCB HEADER 28P DR THRU-HOLE GLD CONN HEADER 28POS 2MM PCB GOLD

¥9.0600

详情

DF11GZ-28DP-2V(20)

Hirose Connector

Headers & Wire Housings 2MM V PCB HEADER 28P DR SMT TIN CONN HEADER 28POS 2MM SMD TIN

¥6.0996

详情

DF11-28DP-2V(57)

Hirose Connector

Headers & Wire Housings 28P STRT HEADER BD MNT,SMT AU CONN HEADER 28POS 2MM SMD GOLD

详情

DF11-28DP-2DS(24)

Hirose Connector

Headers & Wire Housings 2MM R/A PCB HEADER 28P DR THRU-HOLE TIN CONN HEADER 28POS 2MM RT ANG TIN

¥4.5316

详情

DF11-22SCF

Hirose Connector

Headers & Wire Housings FEMALE CONTACT TIN 22AWG REEL CONN SOCKET 22AWG CRIMP TIN

¥0.4930

详情

DF11-30SCA

Hirose Connector

ヘッダ & ワイヤハウジング FEMALE CONTACT GLD 30AWG LOOSE CONN SOCKET 30AWG CRIMP GOLD Crimp Contact gold plated 30 AWG loose Headers & Wire Housings FEMALE CONTACT GLD 30AWG LOOSE DF11-30SCA Hirose DF11 系列母压接接线端子, 压接, 镀金触点

¥0.8851

详情

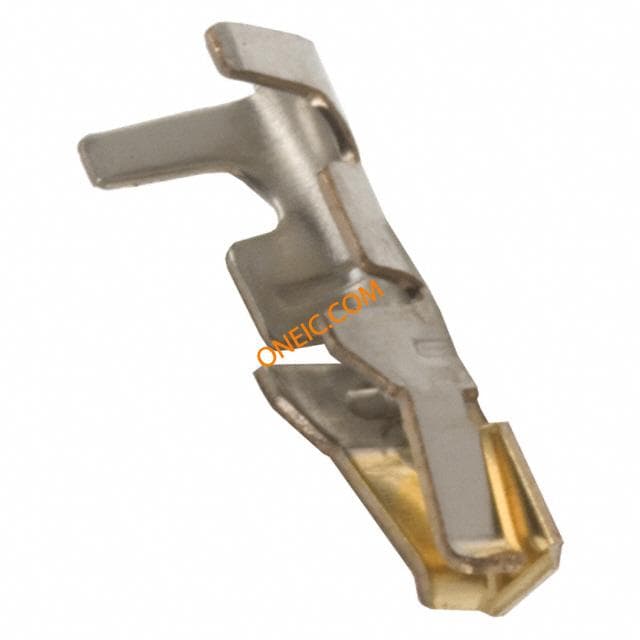

DF11-2428SCA
