.jpg)
点击放大查看

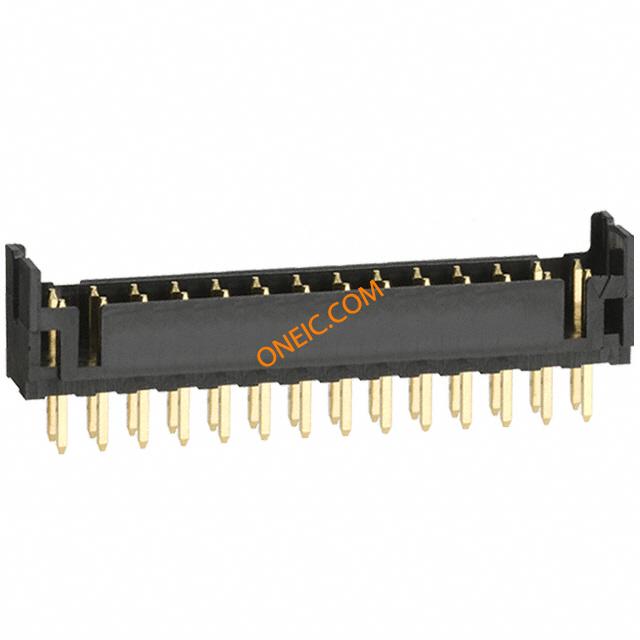

DF11-28DP-2DSA(01)
| 制造商 | |
| 描述 | Headers & Wire Housings 2MM V PCB HEADER 28P DR THRU-HOLE GLD CONN HEADER 28POS 2MM PCB GOLD |
| 分类 |
商业参数
| 产品类别 | Headers & Wire Housings | 标准包装数量 | 100 |
| 工厂包装数量 | 100 | ||
合规参数
| RoHS | RoHS Compliant | ||
电气参数
| 额定电压 | 250 V | 最大额定电流 | 2 A |
机械参数
| 颜色 | Black | 间距 | 0.079" (2.00mm) |
| 包装方式 | Bulk | 排间距 | 0.079" (2.00mm) |
| 端接方式 | Solder | 触头类型 | Male Pin |
| 安装类型 | Through Hole | 连接器类型 | Header, Shrouded |
| 接触镀层 | Gold | 紧固类型 | Detent Lock |
| 排数 | 2 | 触头材料 | Brass |
| 壳体材料 | Polyamide | 端接样式 | Through Hole |
| 触点数 | 28 | 位数 | 28 |
| 接触长度 - 配合 | 0.118" (3.00mm) | ||
产品信息
| 类型 | Shrouded | 系列 | DF11 |
| 产品子类型 | Headers | 加载位置数 | All |
