点击放大查看

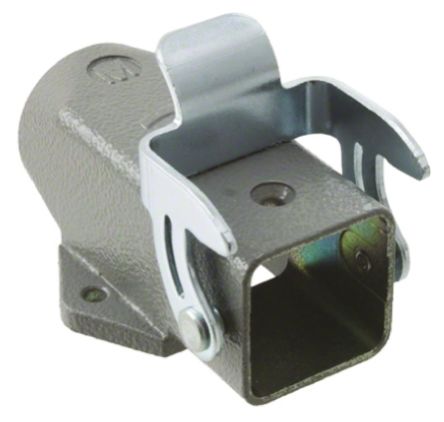

19200031250
| 制造商 | |
| 描述 | HAN A BASE SURFACE 1 LEVER 1 M20 Heavy Duty Power Connectors SURFACE MOUNTING HSG OPEN 1 SIDE ENTRY PANEL SOCKET HAN 3A MÉTAL M20 HANABASESURFACE1LEVER1ENTRYM20 Enclosure: for Han connectors; Han; size 3A; with lock; side; M20 Han A Housings: Han A Base Surface 1 Lever 1 Entry M20 Harting Han A 系列 电源连接器 |
| 分类 |
商业参数
| 其他名称 | 1195-3065 | 零件号别名 | 003 019 019-20-003-1250 1250 20 |
| 产品类别 | Heavy Duty Power Connectors | 标准包装数量 | 1 |
| 工厂包装数量 | 10 | ||
合规参数
| RoHS | Compliant | ||
电气参数
| 连接器类型 - 电压输入 | side | ||
机械参数
| 尺寸 | 3A | 重量 | 0.08 kg |
| 包装方式 | Bulk | 壳体颜色 | grey |
| 方向 | straight | 螺纹尺寸 | M20 |
| 外壳颜色 | Gray | 衬套螺纹 | M20 |
| 连接器类型 | Base - Panel Mount 90° | 外壳涂层 | Powder Coated |
| 安装样式 | flange (2 holes), for panel mounting, for cable | 封装形式 | size 3A |
| 锁定特性 | with lock | 壳体材料 | Zinc, Die Cast |
| 包装数量 | 10 | 尺寸/外形 | 1.102" L x 1.575" W x 1.071" H (28.00mm x 40.00mm x 27.20mm) |
| 端接样式 | Screw | 供应商器件封装 | for Han connectors |
| 外壳与棱镜材料 | zinc alloy | ||
产品信息
| SPG | 10 | 类型 | CONNECTORS |
| 样式 | Side Entry | 系列 | Han A |
| 产品子类型 | Receptacle Housings | 锁定位置 | Central Locking Clip on Base Bottom |
| 附件类型 | Hood | 适配器系列 | Han |
| 单元数量 | 1 | ||
环境参数
| 防护等级 | IP44 | 工作温度 | -40°C ~ 125°C |
