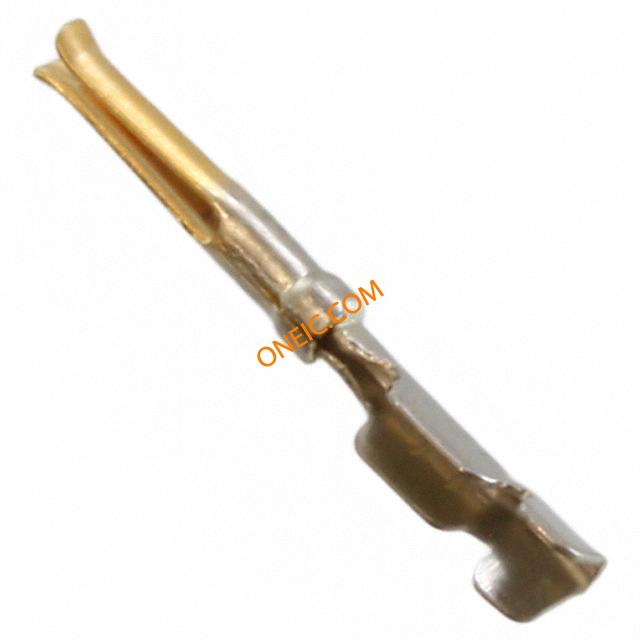

点击放大查看
09560008275
| 制造商 | |
| 描述 | D-Sub Contacts FEMALE CRIMP CONTACT S4 PLATING DSUB HD FE CONTACT 24-26 AWG S4 |
| 分类 |
商业参数
| 零件号别名 | 000 09 09-56-000-8275 56 8275 | 产品类别 | D-Sub Contacts |
| 标准包装数量 | 1 | 工厂包装数量 | 500 |
合规参数
| RoHS | RoHS Compliant | ||
机械参数
| 包装方式 | Bulk | 导线线规 | 24-26 AWG |
| 触点形式 | Stamped | 触头类型 | Female Socket |
| 接触镀层 | Gold | 端接样式 | Crimp |
| 第一触头极性 | Socket (Female) | 接触件端接 | Crimp |
| 接触镀层厚度 | 30µin (0.76µm) | ||
产品信息
| 类型 | Signal | 系列 | 956 |
| 产品特性 | High Density (HD), Insulation Support | ||
