09200030801

制造商	HARTING Technology Group

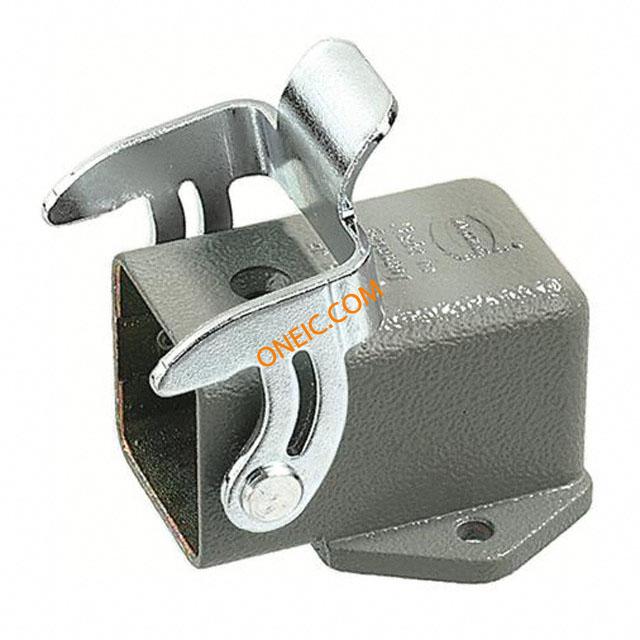

描述	HAN A BASE ANGLED 1 LEVER Heavy Duty Power Connectors HAN 3A ANGL BULKHEAD 1 LEVER METAL Side entry panel mount metal housing,3A HANABaseAngled1Lever(HousingBulkhead)3A Enclosure: for Han connectors; Han; size 3A; with lock; -40÷125°C Han A Housings: Han A Base Angled 1 Lever Harting Han A 系列侧入隔板外壳
分类	连接器解决方案重载连接器重载连接器

对参数有疑问？问 AI 助手

商业参数

零件号别名	003 0801 09 09-20-003-0801 20	产品类别	Heavy Duty Power Connectors
标准包装数量	1	工厂包装数量	10

合规参数

RoHS

Compliant

电气参数

最大额定电流

3 A

机械参数

尺寸	3A	重量	0.07 kg
包装方式	Bulk	壳体颜色	grey
方向	angled 90°	重量（g）	64.40000
连接器类型	Base - Panel Mount 90°	外壳涂层	Powder Coated
安装样式	flange (2 holes), for panel mounting	封装形式	size 3A
插入力	Female	锁定特性	with lock
壳体材料	Zinc, Die Cast	包装数量	10
尺寸/外形	1.102" L x 1.575" W x 1.063" H (28.00mm x 40.00mm x 27.00mm)	端接样式	Cable
触点数	12	供应商器件封装	for Han connectors
外壳与棱镜材料	zinc alloy

产品信息

SPG	10	类型	CONNECTORS
样式	Side Entry	系列	Han Q
CAD图纸	3D CAD Model	产品子类型	Housings
锁定位置	Central Locking Clip on Base Bottom	附件类型	Bulkhead Housing
适配器系列	Han	单元数量	1

环境参数

防护等级

IP44

工作温度

-40°C ~ 125°C
