点击放大查看

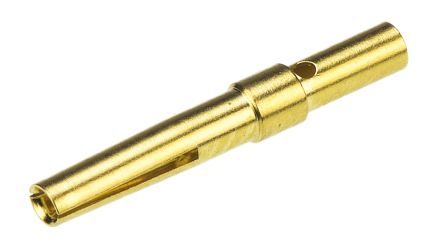

09670003476
| 制造商 | |
| 描述 | Contact SKT Crimp ST Cable Mount Bulk D SUB FE TURNED CONTACT_AWG 18-2 Turned contact 18-22 AWG F D-Sub Contacts D SUB FE turned cont AWG 18-22 PL1 Harting D-Sub Standard 系列 母 压接端接 圆形 连接器 触芯, 使用于D-sub 连接器, 22 → 18 AWG 线规格 |
| 分类 |
商业参数
| 零件号别名 | 000 09 09-67-000-3476 3476 67 | 标准包装数量 | 100 |
| 工厂包装数量 | 100 | ||
合规参数
| RoHS | Lead free / RoHS Compliant | 欧盟RoHS | Compliant |
机械参数
| 深度 | 2.16 | 高度 | 2.16 |
| 长度 | 13.6mm | 包装方式 | Bulk |
| 导线线规 | 18-22 | 屏蔽类型 | No |
| 端接方式 | Crimp | 重量（g） | 0.20000 |
| 触点尺寸 | 1.8mm | 触头类型 | Signal |
| 安装类型 | Cable Mount | 连接器类型 | Connector D-Subminiature |
| 接触镀层 | Gold Over Nickel | 触头材料 | Nickel |
| 总长度 | 13.6 | 端接排数 | 压接 |
| 线规或范围 - mm² | 22 → 18 AWG | ||
产品信息
| 连接器性别 | SKT | 系列 | * |
| 适用产品/相关产品 | D-Sub Connector | ||
