点击放大查看

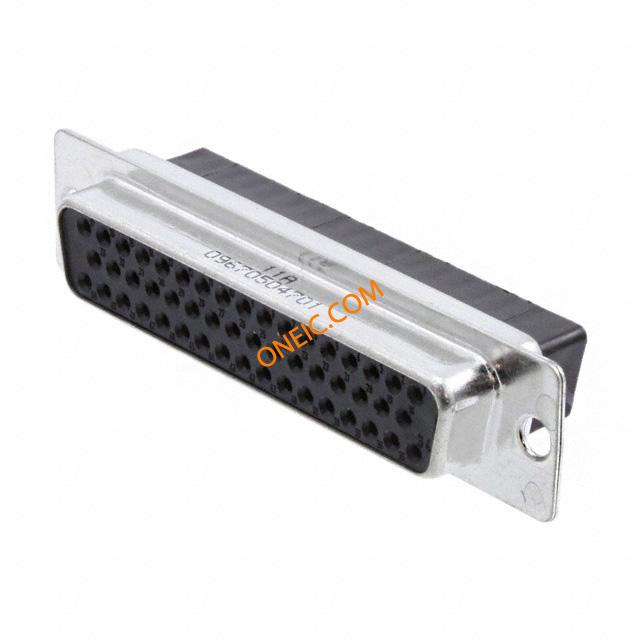

09670504701
| 制造商 | |
| 描述 | D-Sub Standard Connectors DSUB FE CRIMP 50POLE DSUB FE CRIMP 50 POLE Crimp D Connector (Female Tinned Metal Shell) 50 position CrimpDConnector(FemaleTinnedMetalShell)50position Harting D-Sub Standard系列 50路 直 压接式 D-sub 连接器, 插座 |
| 分类 |
商业参数
| 零件号别名 | 050 09 09-67-050-4701 4701 67 | 标准包装数量 | 1 |
| 工厂包装数量 | 25 | ||
合规参数
| RoHS | RoHS Compliant | 标准 | MIL-C-24308,DIN41652,CECC75301-802 |
机械参数
| 深度 | 17.8mm | 宽度 | 15.4mm |
| 长度 | 67mm | 包装方式 | Bulk |
| 方向 | 直 | 端接方式 | Crimp |
| 触头类型 | Signal | 安装类型 | Panel Mount |
| 行程角度 | Straight | 连接器类型 | Receptacle for Female Contacts |
| 法兰特征 | Housing/Shell (Unthreaded) | 外壳涂层 | Tin |
| 排数 | 3 | 连接器样式 | D-Sub |
| 壳体材料 | Metal | 主要材料 | D-Subminiature |
| 尺寸/外形 | 67 x 15.4 x 17.8mm | 触点数 | 50 |
| 介电材料 | Polybutylene Terephthalate (PBT), Polyester, Glass Filled | 位数 | 50 |
| 外壳材料及表面处理 | Steel, Tin Plated | 外壳尺寸，连接器布局 | 5 (DD, D) |
产品信息
| 备注 | Contacts Not Provided | 类型 | CableSocket |
| 系列 | D-Sub Standard | ||
环境参数
| 工作温度 | -55°C ~ 125°C | ||
