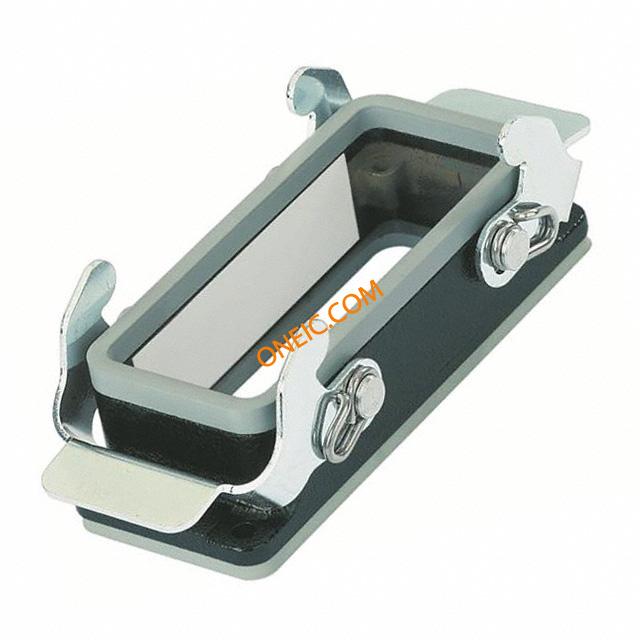

09370240301

制造商	HARTING Technology Group
描述	Connector Accessories Bulkhead Housing Heavy Duty Power Connectors BULKHEAD MOUNTING HAN 24B 2 LVR LCKING HAN M BULKHEAD HOUSING BLACK Han M Housings: Han M Bulkhead Housing Black Harting HAN M 系列电源连接器外壳 , 隔板
分类	连接器解决方案重载连接器重载圆形连接器

对参数有疑问？问 AI 助手

商业参数

零件号别名	024 0301 09 09-37-024-0301 37	产品类别	Heavy Duty Power Connectors
标准包装数量	1	工厂包装数量	10

合规参数

RoHS

Lead free / RoHS Compliant

欧盟RoHS

Compliant

机械参数

尺寸	24B	深度	56.8
包装方式	Bulk	外壳颜色	Black
安装类型	隔板	连接器类型	Base - Panel Mount
外壳涂层	Epoxy Powder Paint	安装样式	Straight
壳体材料	Aluminum, Die Cast	总长度	140
尺寸/外形	5.512" L x 1.709" W x 1.165" H (140.00mm x 43.40mm x 29.60mm)

产品信息

类型	Bulkhead Housing	样式	Bottom Entry
系列	Han M	UNSPSC代码	31163100
产品子类型	Housings	锁定位置	Locking Clip on Base Bottom
基础产品编号	0937

环境参数

防护等级

IP65 - Dust Tight, Water Resistant

工作温度

-40°C ~ 125°C

相关型号

09330242702

Harting Technology Group

Conn Housing F 25 POS Crimp ST Panel Mount Heavy Duty Power Connectors HAN E 24P F CRIMP ORDER CONTACTS SEP HAN E 24 POS. F INSERT CRIMP RECTANGULAR HAN INSERT, FEM, 24WAY CRIMP HANE24POS.FINSERTCRIMP Connector: HAN; female; Han E; PIN:24; 24+PE; size 24B; crimped; 16A Han E Female Insert- Crimp: Han E 24 Position F Insert Crimp

¥159.9598

详情

09210643001

Harting Technology Group

Conn Housing M 65 POS Crimp ST Heavy Duty Power Connectors HAN D 64P M CRIMP ORDER CONTACTS SEP HAN D 64 POS. M INSERT CRIMP Han(R) D 64P+E male insert, 250Vac RECTANGULAR HAN INSERT, PLUG 64WAY CRIMP Insert;250V;10A;Male;64;RoHSCompliant;HanD,HanDAVSeries Connector: HAN; male; Han D; PIN:64; 64+PE; size 24B; w/o terminals Han D Male Insert: Han D 64 Position M Insert Crimp Harting Han D 系列 4行 64针插头电源连接器

¥113.3696

详情

09380122701

Harting Technology Group

Conn Rectangular F 4Power/8Signal/2Ground POS Screw ST Panel Mount Heavy Duty Power Connectors HAN K 4+8P F SCREW SCREW TERMINATION HAN K 4/8 POS. F INSERT SCREW Connector; Female Insert; 24 Positions Connector,FemaleInsert,24Positions Connector: HAN; female; Han Com; PIN:12(4+8); size 24B; Inom 1:80A Han K Female Insert: Han K 4/8 Position F Insert Screw Harting Han Com 系列 12针 12P+E极插座插片

¥670.4400

详情

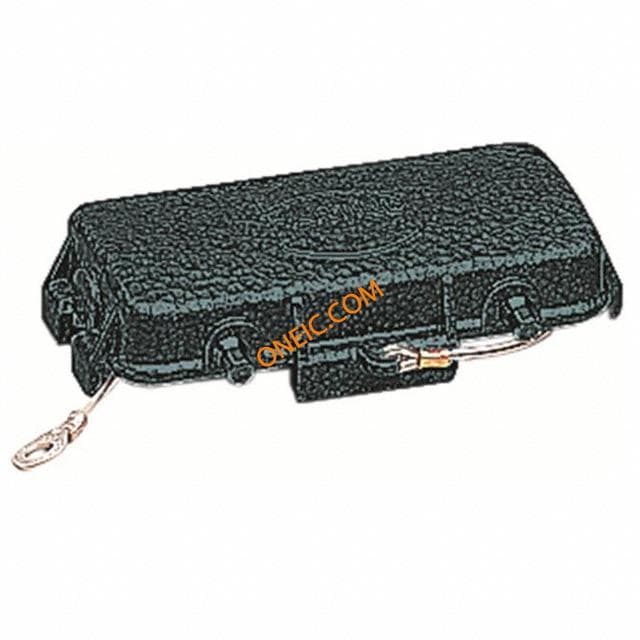

09370245405
