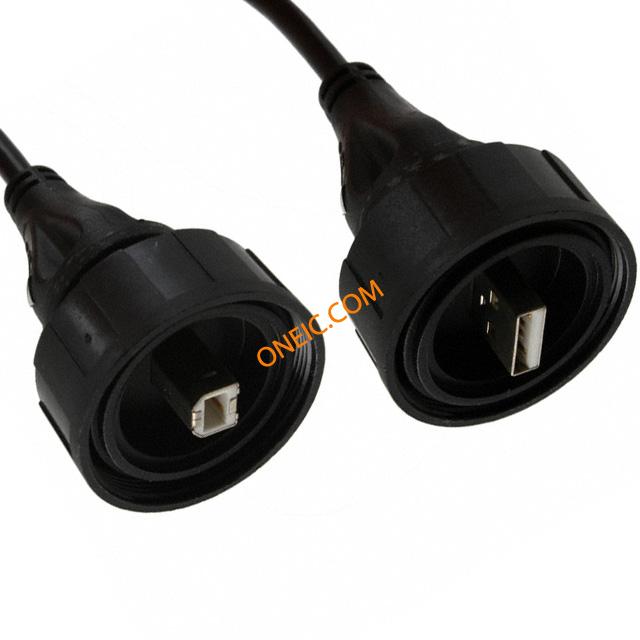

PX0841/AB/3M00
| 制造商 | Bulgin |
| 描述 | Cable Assemblies 3M SEALED A-B CABLE DUAL PLUG IP68 USB A-B 3M Cable; USB; 1.5 to 480; 4; Double Ended; 3 m; 38.1 mm; PCBs USB Cables / Firewire Cables 3M SEALED A-B Cable,USB;1.5to480;4;DoubleEnded;3m;38.1mm;PCBs |
| 分类 |
商业参数
| 产品 | USB Assemblies | 产品类别 | Cable Assemblies |
| 标准包装数量 | 5 | 工厂包装数量 | 5 |
合规参数
| RoHS | RoHS Compliant | ||
电气参数
| 转速 | 1.5to480Mbs | 额定电压 | 30 VAC |
| 极数 | 4 | 最大额定电流 | 1 A |
| 导体数量 | 4 | ||
机械参数
| 颜色 | Black | 长度 | 3 m |
| 密封型 | DoubleEnded | 直径 | 38.1mm |
| 屏蔽 | Shielded | 导线线规 | 28 |
| 电缆长度 | 3m | 线缆护套颜色 | Black |
| 第一连接器 | USB Type A, IP 68 | 第二连接器 | USB Type A, IP 68 |
| 线径 | 28AWG | 连接器类型 | USBType-A |
| 引脚数 | 2 | 连接器 - 电缆 | Straight |
| 第二连接器类型 | USBType-B | 绝缘材料 - 材质 | Polyvinylchloride |
| 护套（绝缘）材料 | Polyvinyl Chloride (PVC) | 第二连接器位数 | 2 |
产品信息
| 类型 | USB 2.0 | 样式 | Industrial Environments - IP68 |
| 连接器性别 | Male / Male | 系列 | Buccaneer |
| 功能 | Connector Cable | 配置 | A Male to B Male (Circular Coupling) |
| 规格说明 | USB 2.0 | 适用产品/相关产品 | PCBs |
文档与媒体
相关型号
PX0845/B
Bulgin
Ethernet & Telecom Connectors PANEL MT USB B TYPE PCB DIRECT MOUNT CONN RCPT IP68 USB B PNL MT PCB USB B Type PCB Mount Conn IP68 Modular Connectors / Ethernet Connectors PANEL MT USB B TYPE PCB DIRECT MOUNT Conn USB F 4 POS 2.54mm Solder ST Thru-Hole 4 Terminal 1 Port CONNECTOR, PANEL, USB, TYPE B, PCB USBBuccaneerRearPanelMountConnectorPCBDirectMountIP68TypeB Bulgin 电缆组件, USB B
PX0848/B
Bulgin
USB Connectors PANEL MT USB B TYPE CONN RCPT IP68 USB B REAR MOUNT USB BUCCANEER REAR PANEL MOUNT; USB B TYPE IP68; A AT REAR OF PANEL Conn USB F 4 POS Crimp ST Panel Mount 4 Terminal 1 Port CONNECTOR, USB B, RECEPTACLE, PANEL USBBUCCANEERREARPANELMOUNT,USBBTYPEIP68,AATREAROFPANEL Bulgin USB 系列 PX0848 1 端口 直 公 USB 2.0, 面板安装, 30 V 交流, 1A
PX0848/A
Bulgin
USB Connectors PANEL MT USB A TYPE CONN RCPT IP68 USB A REAR MOUNT USB BUCCANEER REAR PANEL MOUNT; USB A TYPE IP68; B AT REAR OF PANEL Conn USB F 4 POS Crimp ST Panel Mount 4 Terminal 1 Port USB TYPE A, RECEPTACLE, PANEL USBBUCCANEERREARPANELMOUNT,USBATYPEIP68,BATREAROFPANEL Bulgin PX0848 USB 系列 1 端口 USB 2.0 直 插头, 面板安装, 30 V 交流, 1A

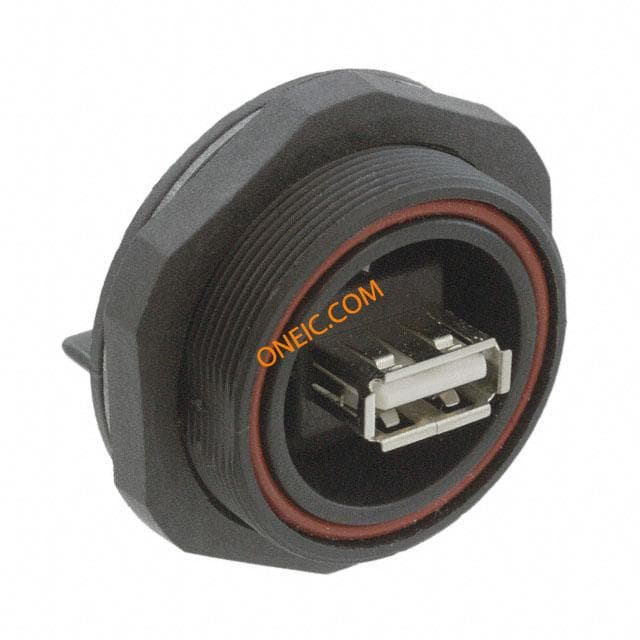

PX0845/A
Bulgin
CONN RCPT IP68 USB A PNL MT PCB USB A Type PCB Mount Conn IP68 USB Connectors PANEL MT USB A TYPE PCB DIRECT MOUNT Conn USB F 4 POS 2.54mm Solder ST Thru-Hole 4 Terminal 1 Port CONNECTOR, PANEL, USB, TYPE A, PCB USBBuccaneerRearPanelMountConnectorPCBDirectMountIP68TypeA Bulgin 电缆组件, USB A
