点击放大查看

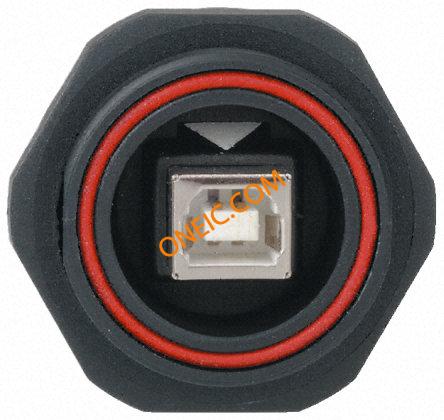

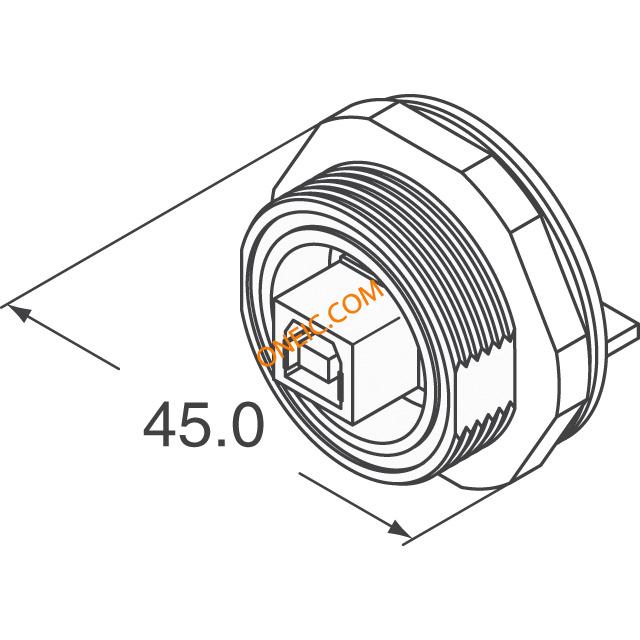

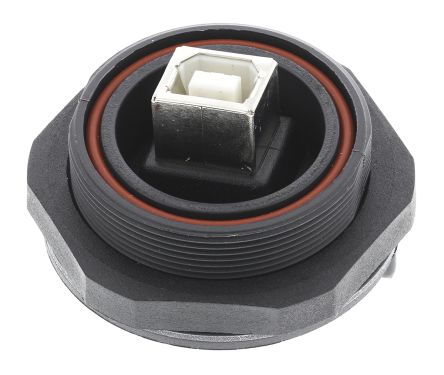

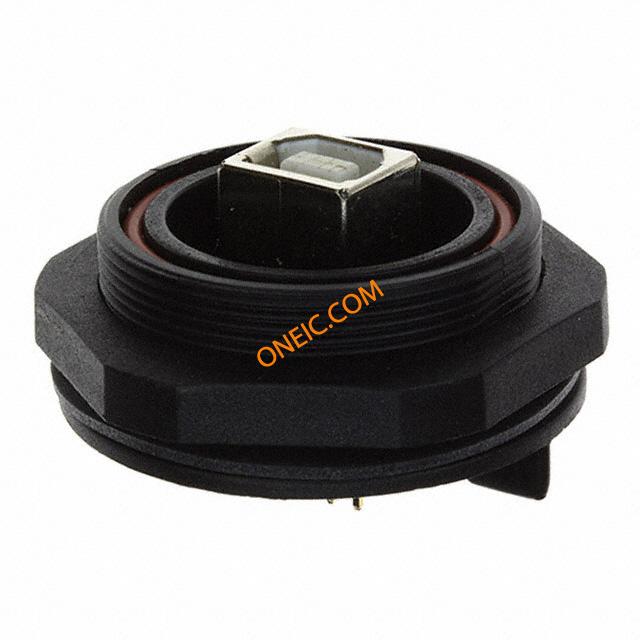

PX0845/B
| 制造商 | Bulgin |
| 描述 | Ethernet & Telecom Connectors PANEL MT USB B TYPE PCB DIRECT MOUNT CONN RCPT IP68 USB B PNL MT PCB USB B Type PCB Mount Conn IP68 Modular Connectors / Ethernet Connectors PANEL MT USB B TYPE PCB DIRECT MOUNT Conn USB F 4 POS 2.54mm Solder ST Thru-Hole 4 Terminal 1 Port CONNECTOR, PANEL, USB, TYPE B, PCB USBBuccaneerRearPanelMountConnectorPCBDirectMountIP68TypeB Bulgin 电缆组件, USB B |
| 分类 |
商业参数
| 产品 | Telecom & Ethernet Connectors | 产品类别 | Ethernet & Telecom Connectors |
| 标准包装数量 | 10 | 工厂包装数量 | 10 |
合规参数
| RoHS | RoHS Compliant | 海关税号 | 85366990 |
| 材料阻燃等级 | UL 94 V-0 | ||
电气参数
| 额定电压 | 30 V | 最大额定电流 | 1 A |
机械参数
| 重量 | 0.02 | 包装方式 | Bulk |
| 屏蔽 | Shielded | 外壳样式 | Metal |
| 端接方式 | Crimp | 第一连接器 | Female USB B |
| 安装类型 | Plug | 行程角度 | Straight |
| 连接器类型 | USB - B | 接触镀层 | Gold |
| 外壳涂层 | Nickel | 安装样式 | Panel |
| 触头材料 | Copper Alloy | 壳体材料 | Steel |
| 主要材料 | Ethernet | 连接器颜色 | Black |
| 配接方向 | Threaded | 触点数 | 4 |
| 接触件端接 | :PCB | 第一连接器安装类型 | :PCB |
产品信息
| USB | USB 2.0 | 类型 | PanelPlug |
| 连接器性别 | Male | 系列 | :USB Buccaneer |
| 产品特性 | USB,EMIProtection | 规格说明 | USB 2.0 |
| 端口数 | 1 | 位置/触点数量 | 4 |
环境参数
| NEMA 机架尺寸 | :IP68 | 防护等级 | IP68 - Dust Tight, Waterproof |
| 工作温度 | 0 C to + 70 C | ||
文档与媒体
