点击放大查看

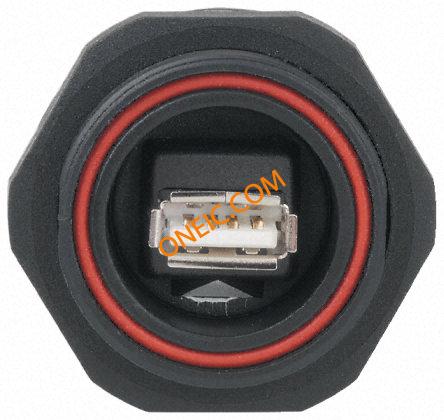

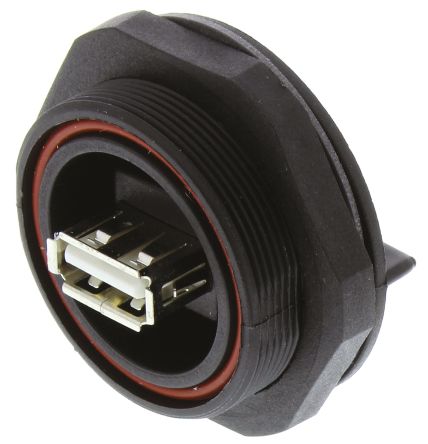

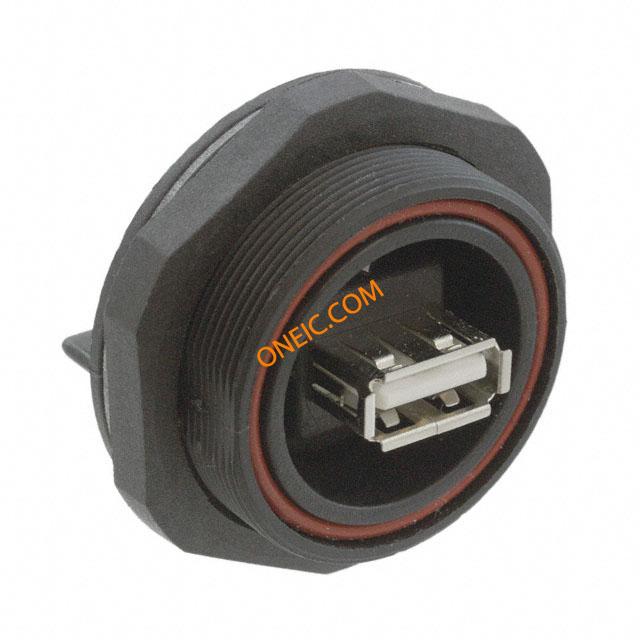

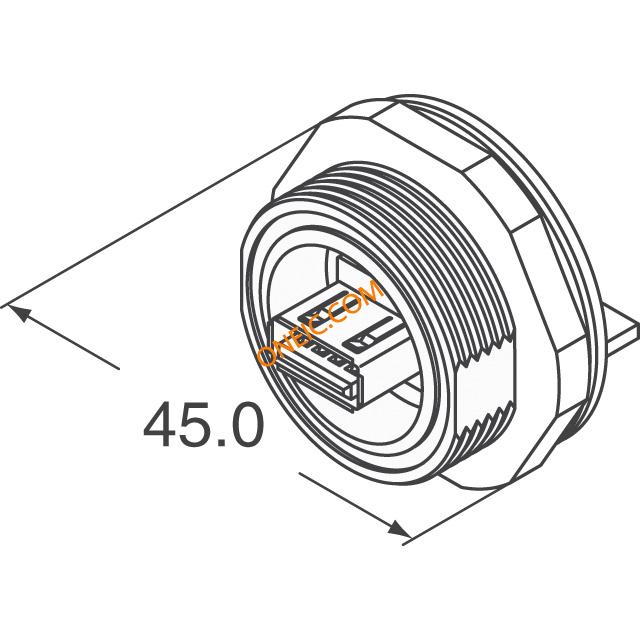

PX0845/A
| 制造商 | Bulgin |
| 描述 | CONN RCPT IP68 USB A PNL MT PCB USB A Type PCB Mount Conn IP68 USB Connectors PANEL MT USB A TYPE PCB DIRECT MOUNT Conn USB F 4 POS 2.54mm Solder ST Thru-Hole 4 Terminal 1 Port CONNECTOR, PANEL, USB, TYPE A, PCB USBBuccaneerRearPanelMountConnectorPCBDirectMountIP68TypeA Bulgin 电缆组件, USB A |
| 分类 |
商业参数
| 产品 | USB Type A Connectors | 产品类别 | USB Connectors |
| 标准包装数量 | 10 | ||
合规参数
| RoHS | Compliant | 海关税号 | 85366990 |
| 材料阻燃等级 | UL 94 V-0 | ||
电气参数
| 额定电压 | 30 V | 供电电压 | USB 2.0 |
| 最大额定电流 | 1 A | ||
机械参数
| 重量 | 0.02 | 包装方式 | Bulk |
| 外壳样式 | Metal | 端接方式 | Crimp |
| 第一连接器 | Female USB A | 安装类型 | Panel Mount, Bulkhead; Through Hole |
| 外壳镀层 | Nickel | 连接器类型 | USB - A |
| 接触镀层 | Gold | 外壳涂层 | Nickel |
| 安装样式 | Panel | 触头材料 | Copper Alloy |
| 壳体材料 | Steel | 主要材料 | Sealed |
| 端接样式 | Solder | 连接器颜色 | Black |
| 配接方向 | Threaded | 触点数 | 4 |
| 接触件端接 | :PCB | 第一连接器安装类型 | :PCB |
产品信息
| USB | USB 2.0 | 类型 | USB |
| 连接器性别 | Receptacle | 系列 | Buccaneer |
| 产品特性 | USB,EMIProtection | 规格说明 | USB 2.0 |
| 端口数 | 1 | ||
环境参数
| NEMA 机架尺寸 | :IP68 | 防护等级 | IP68 - Dust Tight, Waterproof |
| 工作温度 | 0 C to + 70 C | ||
