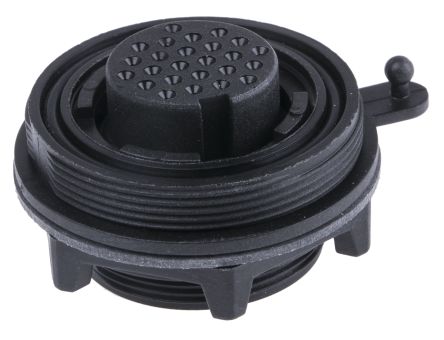

PX0822/S
| 制造商 | Bulgin |
| 描述 | Standard Circular Connector 25 POLE CHAS MT SKT CONN HSNG RCPT JAM NUT 25POS SKT 25 Pole Straight Panel Mount Industrial & Automation Circular Connector with Female Contacts Buccaneer Series Conn Buccaneer SKT 25 POS Crimp/Solder ST Panel Mount 25 Terminal 1 Port SOCKET, SEALED PANEL, 25WAY Connector,CircularIP68;25;Crimp/Solder;1A;50VAC/VDC;lt5Milliohms Bulgin Buccaneer 系列 25路 面板安装 直向 连接器 , 母触点 |
| 分类 |
商业参数
| 产品类别 | Standard Circular Connector | 标准包装数量 | 25 |
| 工厂包装数量 | 25 | ||
合规参数
| RoHS | Compliant | SVHC | :No SVHC (19-Dec-2012) |
| 海关税号 | 85369010 | 认证机构 | ULRecognized/CSA/VDE |
| 材料阻燃等级 | :UL94V-0 | ||
电气参数
| 额定电压 | 50 V ac/dc | 工作电压 | :50V |
| 接触电阻 | :5mohm | 最大额定电流 | 1A |
| 绝缘电阻 | :100Mohm | ||
机械参数
| 长度 | :28mm | 重量 | 0.012 |
| 包装方式 | Bulk | 导线线规 | 24-26 |
| 方向 | Keyed | 外壳样式 | Receptacle |
| 端接方式 | Crimp, Solder | 触头类型 | Crimp and Solder Cup |
| 安装类型 | Panel Mount | 外壳镀层 | Gold |
| 行程角度 | Straight | 电缆直径 | 7-9mm |
| 连接器类型 | Receptacle for Female Contacts | 接触镀层 | Gold over Nickel |
| 紧固类型 | Threaded | 安装样式 | Panel |
| 插入角度 | :- | 本体材料 | :Glass Filled Nylon (Polyamide) |
| 触头材料 | Copper Alloy | 壳体材料 | GlassFilledPolyamide |
| 主要材料 | Sealed | 端接样式 | Crimp / Solder |
| 第一触头极性 | Female | 连接器颜色 | :Black |
| 外径 | :38.1mm | 配接方向 | Threaded |
| 触点数 | 25 | 介电材料 | Polyamide |
| 位数 | 25 | 外壳尺寸-插件 | :- |
| 外壳材料及表面处理 | Polyamide, Glass Filled | 第一连接器安装类型 | :Panel |
| 外径-未扩张 | :9mm | ||
产品信息
| 备注 | Contacts Not Provided | 类型 | PanelSocket |
| 连接器性别 | :Receptacle | 系列 | Buccaneer |
| 产品子类型 | Connectors | ||
环境参数
| NEMA 机架尺寸 | :IP68 | 防护等级 | IP68/69K - Dust Tight, Waterproof |
| 工作温度 | +70°C | ||
文档与媒体
相关型号
12023
Bulgin
Cable Mounting & Accessories CABLE GLAND 6-8MM COLOR BLACK SEALING GLAND BLACK
12023/5
Bulgin
Cable Mounting & Accessories CABLE GLAND 3.5-5MM COLOR GRAY SEALING GLAND WHITE
12023/1
Bulgin
Cable Mounting & Accessories CABLE GLAND 5-7MM COLOR WHITE SEALING GLAND WHITE BUSHES 5-7MM Cable Accessories Gland White SEALINGGLAND Bulgin 电缆固定头
SA3179
Bulgin

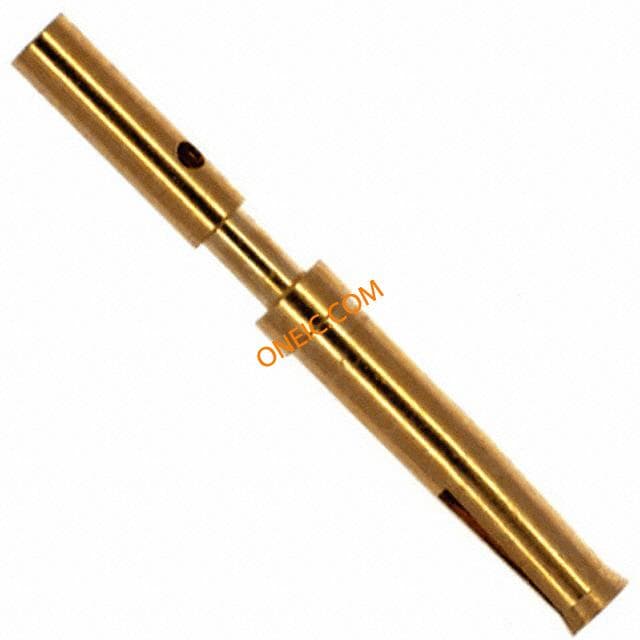

Standard Circular Contacts CRIMP SKT 12P 24AWG 1 = 1 PKT of 10/pcs CONT SKT 1A CRMP 24-28AWG 1=10PC 400 Series 1A Female Circular Connector Contact, Crimp,Wire size 28 to 24AWG CRIMP SOCKET, PK10 Contacts,Standard,Buccaneer,25-Way,CrimpSockets Crimp contact, female, for 10 and 12-pole, SA3179, Bulgin Bulgin 400 系列 1A 母 压接端接 圆形 连接器 触芯, 使用于Buccaneer 400 系列连接器, 28 → 24 AWG 线规格
SA3253
Bulgin
Standard Circular Connector GLAND 3 PACK 3.5-5MM 5-7MM & 7-9MM STANDARD BUCCANEER GLAND PACK Gland pack Cable Accessories Gland CABLE GLAND, CLAMP STANDARD CableGland(Clamp);3/pk Gaskets set; Buccaneer Standard; IP68; 3.5÷9mm Bulgin 电缆固定头 , -20°C至+70°C
PX0799
Bulgin
Standard Circular Connector BACKSHELL REAR OF PANEL STANDARD BUCCANEER REAR COVER Sealing backshell Backshell 180° BACKSHELL, IP68
PX0733
Bulgin
Standard Circular Connector SEALING CAP CONN CAP SEALING FOR W/ALL OTHER Sealing cap for chassis connector Connector Accessories USB Sealing Cap SEALING CAP, FOR PX0847 CONNECTOR Cap,Sealing;Fitspanelmountandflex-in-lineconnector;Buccaneer Protection cover; Buccaneer Standard; IP68; internal thread Protective cap, PX0733, Bulgin Bulgin 插座 IP68 防尘盖
PX0820/P
Bulgin
Standard Circular Connector 25 POLE FLEX PLUG CONN HSNG PLUG 25POS CABLE PIN 25 Pole Straight Cable Mount Industrial & Automation Circular Connector with Male Contacts Buccaneer Series Conn Buccaneer PIN 25 POS Crimp/Solder ST Cable Mount 25 Terminal 1 Port PLUG, SEALED FREE, 25WAY CIRCULAR CONNECTOR, PLUG, 25POS, CABLE CONN HSNG PLUG 25POS INLINE PIN Connector,StandardBuccaneer;Pin;25;69.0mm;38.1mm;3.5to9mm;1A Bulgin Buccaneer 系列 25路 电缆安装 直向 连接器 , 公触点
SA3179/1
Bulgin

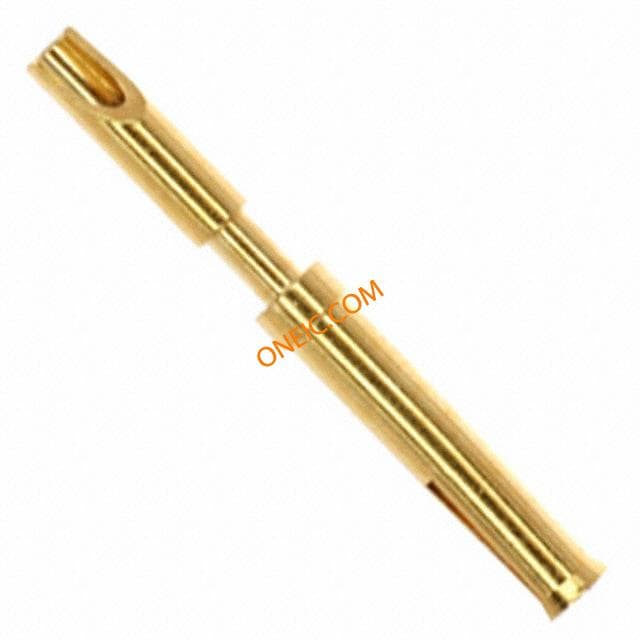

Standard Circular Contacts 157-SA3179/1 24AWG 1 = 1 PKT of 10/pcs CONT SKT 1A SLD 24-28AWG 1=10PC 400 Series 1A Female Circular Connector Contact, Solder,Wire size 28 to 24AWG Contact SKT Solder ST Cable Mount CONTACT, SOCKET, 26-24 AWG, SOLDER Contacts,Standard,Buccaneer,25-Way,SolderSockets Contact; female; 24÷28AWG; Buccaneer 400; gold plated; soldering Soldering contact, female, for 10 and 12-pole, SA3179/1, Bulgin Bulgin 400 系列 1A 母 焊接端接 圆形 连接器 触芯, 使用于Buccaneer 400 系列连接器, 28 → 24 AWG 线规格
