点击放大查看

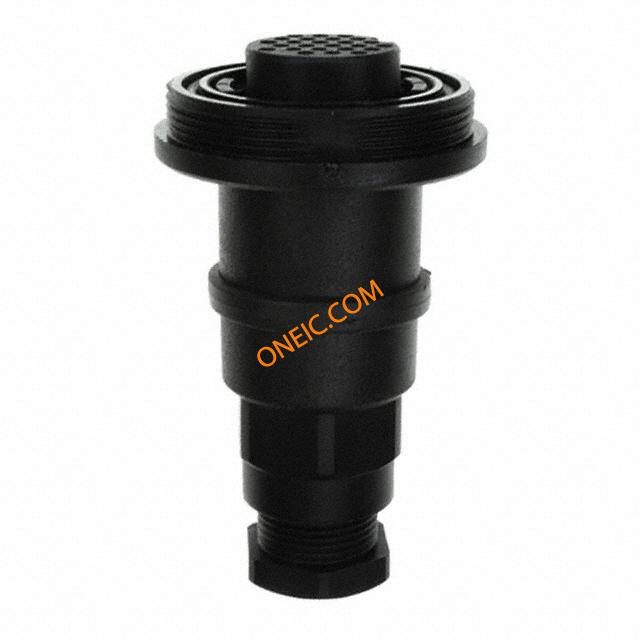

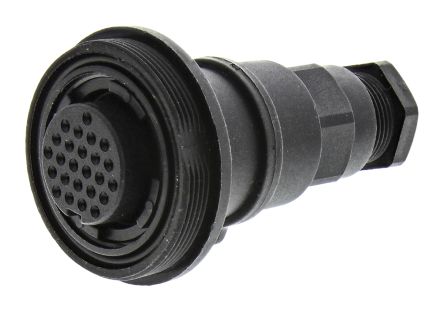

PX0821/S
| 制造商 | Bulgin |
| 描述 | Standard Circular Connector 25 POLE IN-LINE SKT CRIMP/SOLDER CONN HSNG RCPT 25POS INLINE SKT 25 Pole Straight Cable Mount Industrial & Automation Circular Connector with Female Contacts Buccaneer Series Conn Buccaneer SKT 25 POS Crimp/Solder ST Cable Mount 25 Terminal 1 Port SOCKET, SEALED, INLINE, 25WAY CableConnector,In-Line;25;Socket;7to9mmDia;In-LineFlex;1A;50V Bulgin Buccaneer 系列 25路 电缆安装 直向 连接器 , 母触点 |
| 分类 |
商业参数
| 产品类别 | Standard Circular Connector | 标准包装数量 | 25 |
| 工厂包装数量 | 25 | ||
合规参数
| RoHS | Compliant | SVHC | :No SVHC (19-Dec-2012) |
| 海关税号 | 85369010 | 认证机构 | ULRecognized/CSA/VDE |
| 材料阻燃等级 | :UL94V-0 | ||
电气参数
| 额定电压 | 50 V ac/dc | 工作电压 | :50V |
| 接触电阻 | :5mohm | 最大额定电流 | 1A |
| 绝缘电阻 | :100Mohm | ||
机械参数
| 长度 | :64.4mm | 重量 | 0.019 |
| 包装方式 | Bulk | 导线线规 | 24-26 |
| 方向 | Keyed | 外壳样式 | Receptacle |
| 端接方式 | Crimp, Solder | 触头类型 | Crimp and Solder Cup |
| 安装类型 | Free Hanging (In-Line) | 行程角度 | Straight |
| 电缆直径 | 7-9mm | 连接器类型 | Receptacle for Female Contacts |
| 接触镀层 | Gold over Nickel | 紧固类型 | Threaded |
| 安装样式 | Free Hanging | 插入角度 | :- |
| 本体材料 | :Glass Filled Nylon (Polyamide) | 触头材料 | Copper Alloy |
| 壳体材料 | GlassFilledPolyamide | 主要材料 | Sealed |
| 端接样式 | Crimp / Solder | 第一触头极性 | Female |
| 连接器颜色 | :Black | 外径 | :38.1mm |
| 触点数 | 25 | 介电材料 | Polyamide |
| 位数 | 25 | 外壳尺寸-插件 | :- |
| 外壳材料及表面处理 | Polyamide, Glass Filled | 第一连接器安装类型 | :Panel |
| 外径-未扩张 | :9mm | ||
产品信息
| 备注 | Contacts Not Provided | 类型 | CableSocket |
| 连接器性别 | :Receptacle | 系列 | Buccaneer |
| 产品子类型 | Connectors | ||
环境参数
| NEMA 机架尺寸 | :IP68 | 防护等级 | IP68/69K - Dust Tight, Waterproof |
| 工作温度 | +70°C | ||
