点击放大查看

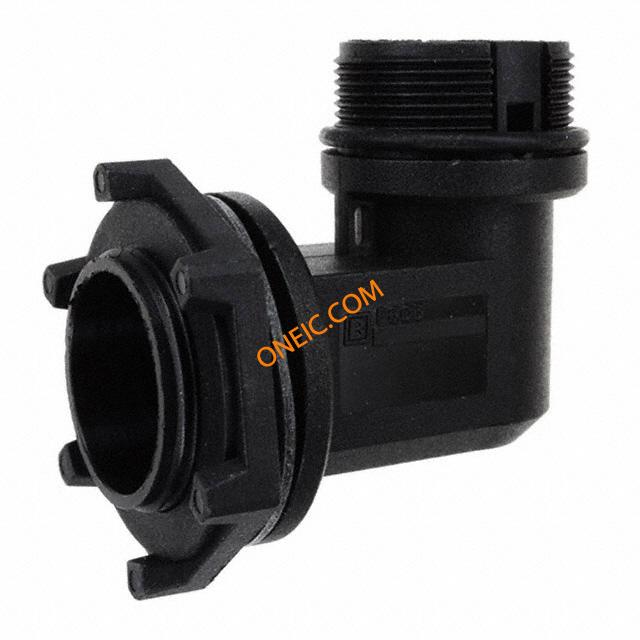

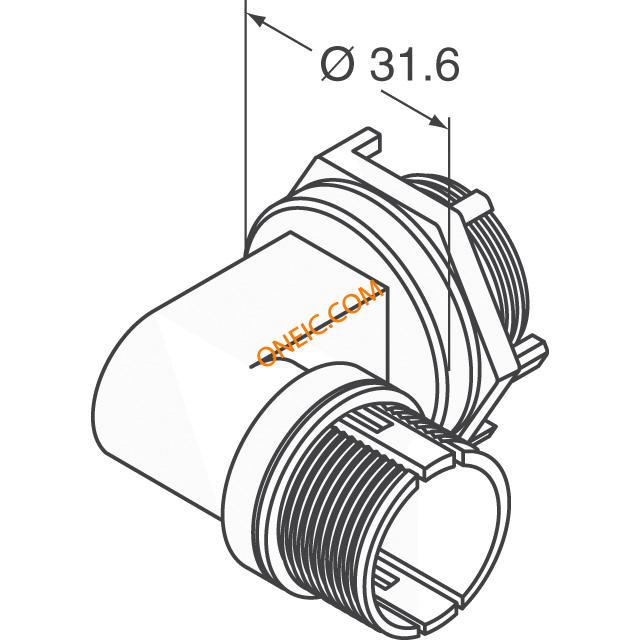

PX0803
| 制造商 | Bulgin |
| 描述 | Standard Circular Connector CHAS MT R/A BODY CONN HSNG INSERT SHELL PNL R/A Connector; Flux In-Line; Screw; lt 5; -20 to degC; Copper Alloy; Gold; UL94V-0 Connector Accessories Circular Body Polyamide BODY, CHASSIS, R/A Connector;FluxIn-Line;Screw;lt5;-20todegC;CopperAlloy;Gold;UL94V-0 |
| 分类 |
商业参数
| 其他名称 | 708-1241 | 产品类别 | Standard Circular Connector |
| 标准包装数量 | 50 | 工厂包装数量 | 50 |
合规参数
| RoHS | Compliant | 海关税号 | 85369010 |
| 认证机构 | ULRecognized | 材料阻燃等级 | UL94-V0 |
电气参数
| 额定电压 | 380 V | 接触电阻 | :5mohm |
| 击穿电压 | :2000V | 最大额定电流 | 5 A |
| 连接器类型 - 电压输入 | Male | ||
机械参数
| 深度 | :37.8mm | 长度 | :44mm |
| 重量 | 0.01393 | 材料（通用） | :Black Nylon |
| 包装方式 | Bulk | 导线线规 | :0.2m² |
| 方向 | Keyed | 外壳样式 | Plug |
| 端接方式 | Crimp/Solder | 触头类型 | Crimp and Solder Cup |
| 外壳表面处理 | :- | 安装类型 | Panel Mount, Right Angle |
| 行程角度 | Right | 电缆直径 | 5-7mm |
| 连接器类型 | Insert Shell | 接触镀层 | Gold |
| 紧固类型 | Threaded | 安装样式 | Flanged |
| 本体材料 | :Nylon (Polyamide) | 壳体材料 | Polyamide (PA) |
| 主要材料 | CircularPlasticConnector | 第一触头极性 | :Pin |
| 配接方向 | Threaded | 位数 | Multiple |
| 外壳尺寸-插件 | :- | 外壳材料及表面处理 | Polyamide |
| 线规或范围 - mm² | :1m² | 第一连接器安装类型 | :Panel |
| 外径-未扩张 | :7mm | ||
产品信息
| 备注 | Contacts Not Provided | 类型 | PlugShellOnly |
| 系列 | Buccaneer Mini | 产品子类型 | Plugs |
| 适用产品/相关产品 | :Mini Buccaneer Circular Connectors | ||
环境参数
| NEMA 机架尺寸 | :IP68 | 防护等级 | IP68 - Dust Tight, Waterproof |
| 工作温度 | :70°C | ||
