12735/3/1
| 制造商 | Bulgin |
| 描述 | Standard Circular Connector CONTACT INSERT 3 SOC CONN HSNG INSERT 3POS SKT Female Circular Connector Insert 3 Way For Use With Mini Buccaneer Connector Conn Mini Buccaneer SKT 3 POS Solder ST Cable Mount 3 Terminal 1 Port SOCKET, CARRIER, 3WAY Bulgin 3路 母 连接器插芯, 使用于Mini Buccaneer 连接器, -20 → +70 °C |
| 分类 |
商业参数
| 产品类别 | Standard Circular Connector | 标准包装数量 | 50 |
| 工厂包装数量 | 50 | ||
合规参数
| RoHS | Compliant | SVHC | :No SVHC (19-Dec-2012) |
| 海关税号 | 85369010 | ||
电气参数
| 额定电压 | :380V | 工作电压 | :380V |
| 接触电阻 | :5mohm | 最大额定电流 | :5A |
机械参数
| 重量 | 0.004 | 包装方式 | Bulk |
| 导线线规 | :0.2m² | 方向 | Keyed |
| 触头类型 | Solder Cup | 连接器类型 | Insert for Female Contacts |
| 接触镀层 | :Gold | 插入角度 | :- |
| 触头材料 | :Copper | 端接样式 | Solder |
| 第一触头极性 | Socket (Female) | 触点数 | 3 |
| 接触件端接 | :Solder | 位数 | 3 |
| 外壳尺寸-插件 | :- | 外壳材料及表面处理 | Polyamide |
| 线规或范围 - mm² | :1m² | 外径-未扩张 | :7mm |
产品信息
| 备注 | Contacts Not Provided | 连接器性别 | Female |
| 系列 | Buccaneer Mini | 产品特性 | Insert Only, Requires Shell |
| 产品子类型 | Accessories | 适用产品/相关产品 | Mini Buccaneer Connector |
环境参数
| NEMA 机架尺寸 | :IP68 | 防护等级 | IP68 - Dust Tight, Waterproof |
| 工作温度 | +70°C | ||
文档与媒体
相关型号
12734/3/1
Bulgin
Standard Circular Connector CONTACT INSERT 3 PIN CONN HSNG INSERT 3POS PIN Male Circular Connector Insert 3 Way For Use With Mini Buccaneer Connector Conn Mini Buccaneer PIN 3 POS Solder ST Cable Mount 3 Terminal 1 Port CARRIER, PIN, 3WAY Bulgin 3路 公 连接器插芯, 使用于Mini Buccaneer 连接器, -20 → +70 °C
PX0800/07
Bulgin
Standard Circular Connector FLEX CBL CON BODY CONN HSNG INSERT SHELL CABLE Connector Accessories Circular Body With Cable Gland Polyamide
PX0803
Bulgin
Standard Circular Connector CHAS MT R/A BODY CONN HSNG INSERT SHELL PNL R/A Connector; Flux In-Line; Screw; lt 5; -20 to degC; Copper Alloy; Gold; UL94V-0 Connector Accessories Circular Body Polyamide BODY, CHASSIS, R/A Connector;FluxIn-Line;Screw;lt5;-20todegC;CopperAlloy;Gold;UL94V-0
PX0802
Bulgin
Standard Circular Connector CHASSIS MT BODY CONN HSNG INSERT SHELL PNL MNT Industrial & Automation Circular Connector Connector Accessories Circular Body Polyamide BODY, CHASSIS Bulgin 连接器
PX0801
Bulgin
Standard Circular Connector IN-LINE CONN. BODY CONN HSNG INSERT SHELL INLINE IP68 compact inline coupler shell Connector Accessories Circular Body Polyamide CircularCableConnector;3.5to9mm;ULListed
PX0800
Bulgin
Standard Circular Connector FLEX CBL CON BODY CONN HSNG INSERT SHELL CABLE Industrial & Automation Circular Connector Connector Accessories Circular Body Polyamide CIRCULAR SHELL, 26X61.5MM, POLYAMIDE CircularCableConnector;3.5to9mm;ULListed Bulgin Buccaneer 系列 直向 连接器

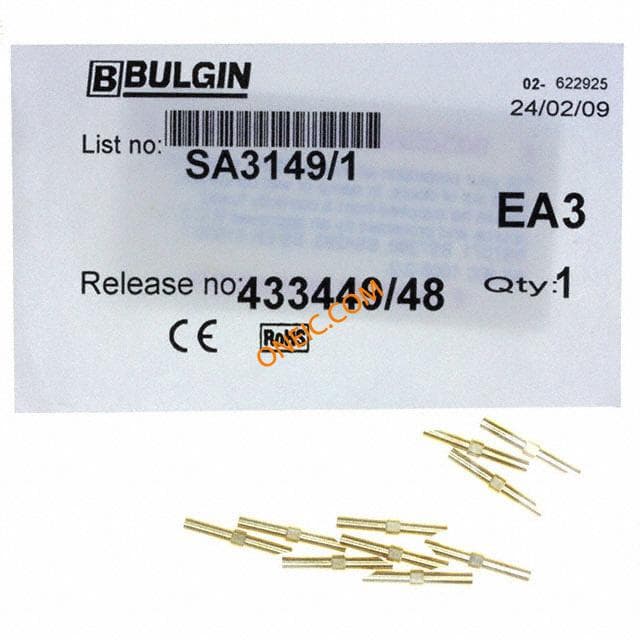

SA3149/1
Bulgin
Standard Circular Contacts SOCKET CONTACTS 1 = 1 PKT of 10/pcs CONT SKT SOLDER 20-24AWG 1=10PC Contact SKT Solder ST Cable Mount SOCKET CONTACT, PK10 SolderSocketContacts;GoldPlated;MiniBuccaneerSeries
PX0805
Bulgin
Standard Circular Connector CHASSIS MT BODY CONN HSNG INSERT SHELL PNL MNT Industrial & Automation Circular Connector Connector Accessories Circular Body Polyamide CIRCULAR CHASSIS, POLYAMIDE Connector;FluxIn-Line;Screw;lt5;-20todegC;CopperAlloy;Gold;UL94V-0 Bulgin 连接器
PX0810
Bulgin
Standard Circular Connector SEALING CAP CAP SEAL - PX0801/0802/0803/0804 Chassis mount sealing cap for IP68 conn Connector Accessories Sealing Cap SEALING CAP, INLINE/CHASSIS CircularConnectorSealingCap;FitsPX0801,PX0803,PX0804andPX0805;24mm

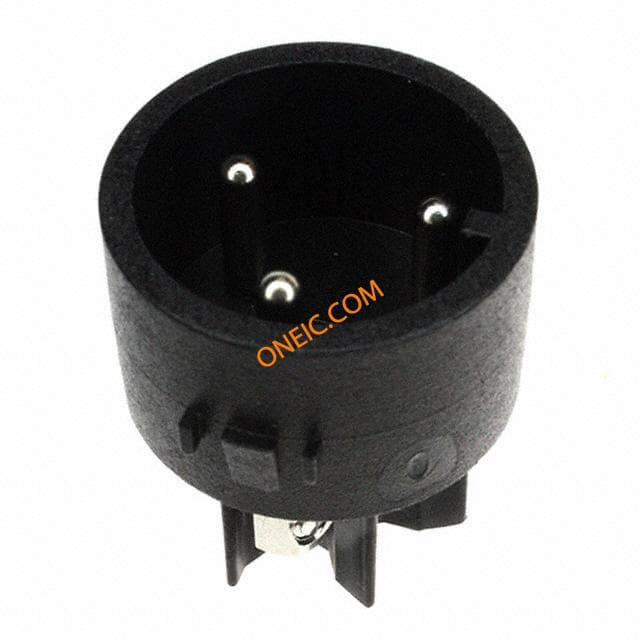

SA3230
Bulgin
Standard Circular Connector 3 POLE PLUG INSERT CONN TERM INSERT 3POS PIN SCREW Male Circular Connector Insert 3 Way For Use With Mini Buccaneer Connector Conn Mini Buccaneer PIN 3 POS Screw ST Cable Mount 3 Terminal 1 Port CIRCULAR INSERT, PIN CONTACT, 3 WAY Insert;Plug;3-PinContacts Bulgin 3路 公 连接器插芯, 使用于Mini Buccaneer 连接器, -20 → +70 °C
12734/3
Bulgin
Standard Circular Connector CARRIER INSERT 3 PIN COLOR GRAY CONN HSNG INSERT 3POS PIN Conn Mini Buccaneer PIN 3 POS Crimp ST Cable Mount 3 Terminal 1 Port

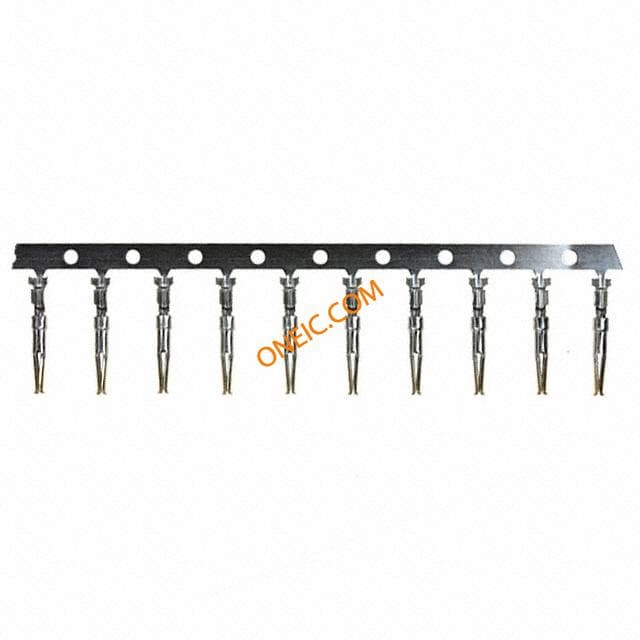

SA3149
