点击放大查看

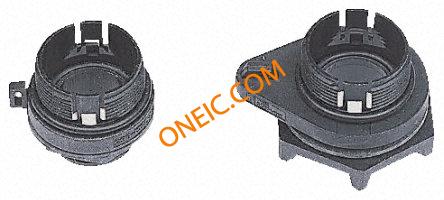

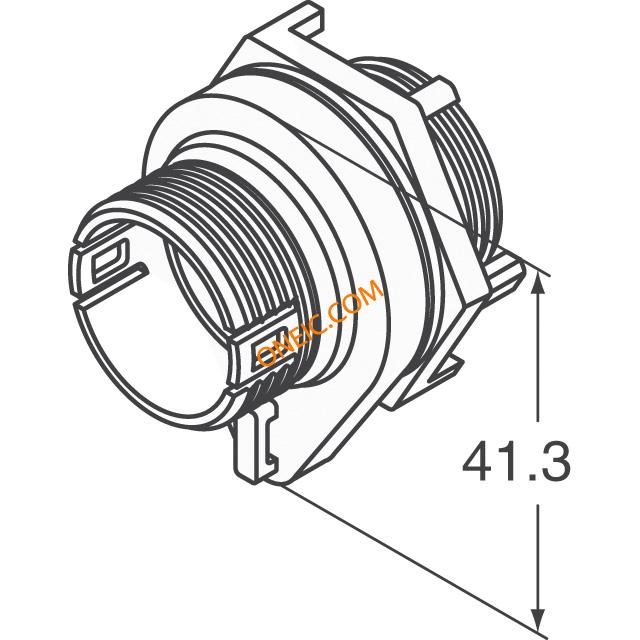

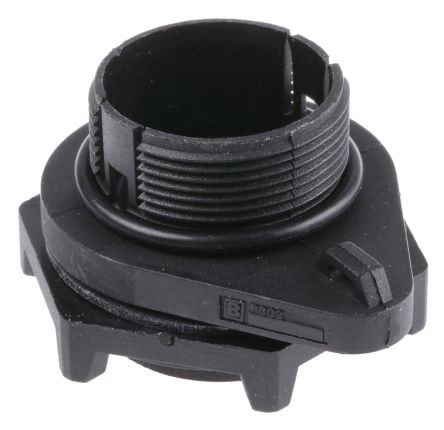

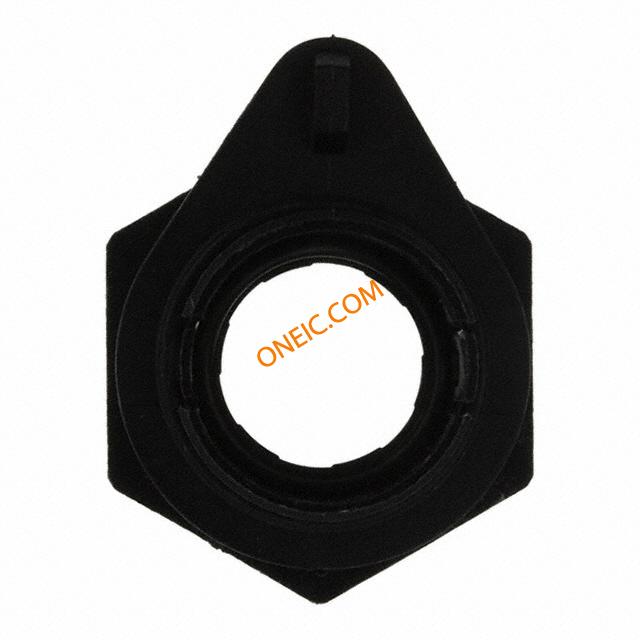

PX0802
| 制造商 | Bulgin |
| 描述 | Standard Circular Connector CHASSIS MT BODY CONN HSNG INSERT SHELL PNL MNT Industrial & Automation Circular Connector Connector Accessories Circular Body Polyamide BODY, CHASSIS Bulgin 连接器 |
| 分类 |
商业参数
| 其他名称 | 708-1240 | 产品类别 | Standard Circular Connector |
| 标准包装数量 | 50 | 工厂包装数量 | 50 |
合规参数
| RoHS | Compliant | SVHC | :No SVHC (19-Dec-2012) |
| 海关税号 | 85369010 | ||
电气参数
| 额定电压 | 380 V | 接触电阻 | :5mohm |
| 击穿电压 | :2000V | 最大额定电流 | 5 A |
| 连接器类型 - 电压输入 | Male | ||
机械参数
| 深度 | :23.5mm | 宽度 | :40.5mm |
| 重量 | 0.09 | 包装方式 | Bulk |
| 导线线规 | :0.2m² | 方向 | Keyed |
| 外壳样式 | Plug | 触头类型 | Crimp and Solder Cup |
| 外壳表面处理 | :- | 安装类型 | Panel Mount, Flange |
| 连接器类型 | Insert Shell | 紧固类型 | Threaded |
| 本体材料 | :Glass Reinforced Nylon (Polyamide) | 壳体材料 | Polyamide (PA) |
| 第一触头极性 | :Socket | 位数 | Multiple |
| 外壳尺寸-插件 | :- | 外壳材料及表面处理 | Polyamide |
| 线规或范围 - mm² | :1m² | 第一连接器安装类型 | :Panel |
| 外径-未扩张 | :7mm | ||
产品信息
| 备注 | Contacts Not Provided | 系列 | Buccaneer Mini |
| 产品子类型 | Plugs | 适用产品/相关产品 | :- |
环境参数
| NEMA 机架尺寸 | :IP68 | 防护等级 | IP68 - Dust Tight, Waterproof |
| 工作温度 | +70°C | ||
