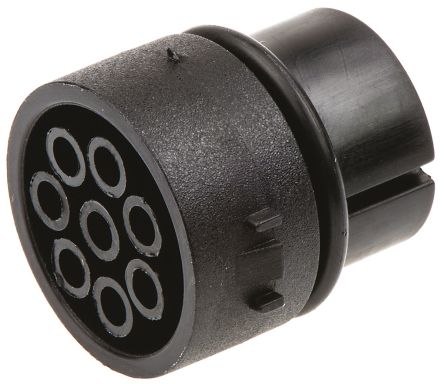

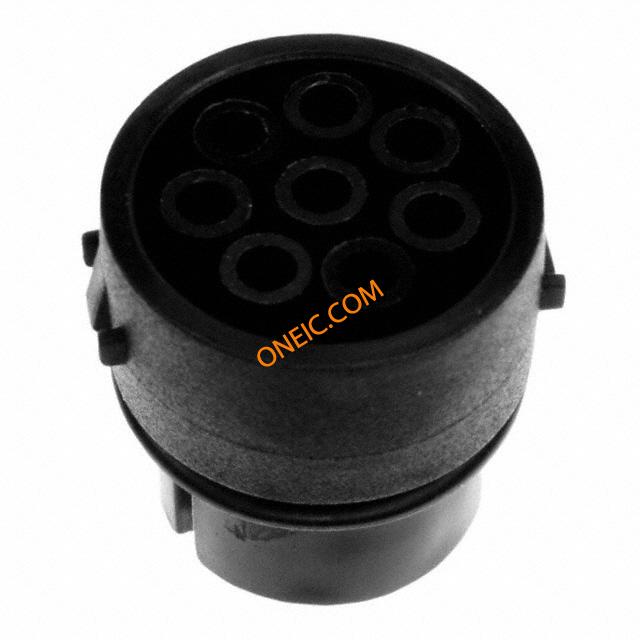

12735/1
| 制造商 | Bulgin |
| 描述 | Standard Circular Contacts CONTACT INSERT 8 SOC CONN HSNG INSERT 8POS SKT Female Circular Connector Insert 8 Way For Use With Mini Buccaneer Connector Conn Mini Buccaneer SKT 8 POS Solder ST Cable Mount 8 Terminal 1 Port SOCKET, CARRIER, 8WAY Bulgin 8路 母 连接器插芯, 使用于Mini Buccaneer 连接器, -20 → +70 °C |
| 分类 |
商业参数
| 产品类别 | Standard Circular Contacts | 标准包装数量 | 50 |
| 工厂包装数量 | 50 | ||
合规参数
| RoHS | Compliant | SVHC | :No SVHC (19-Dec-2012) |
| 海关税号 | 85369010 | ||
电气参数
| 额定电压 | :380V | 工作电压 | :380V |
| 接触电阻 | :5mohm | 最大额定电流 | :5A |
机械参数
| 重量 | 0.004 | 包装方式 | Bulk |
| 导线线规 | :0.2m² | 方向 | Keyed |
| 触头类型 | Solder Cup | 连接器类型 | Insert for Female Contacts |
| 接触镀层 | :Gold | 插入角度 | :- |
| 触头材料 | :Copper | 第一触头极性 | Socket (Female) |
| 触点数 | 8 | 接触件端接 | :Solder |
| 位数 | 8 | 外壳尺寸-插件 | :- |
| 外壳材料及表面处理 | Polyamide | 线规或范围 - mm² | :1m² |
| 外径-未扩张 | :7mm | ||
产品信息
| 备注 | Contacts Not Provided | 连接器性别 | Female |
| 系列 | Buccaneer | 产品特性 | Insert Only, Requires Shell |
| 适用产品/相关产品 | Mini Buccaneer Connector | ||
环境参数
| NEMA 机架尺寸 | :IP68 | 防护等级 | IP68 - Dust Tight, Waterproof |
| 工作温度 | +70°C | ||
