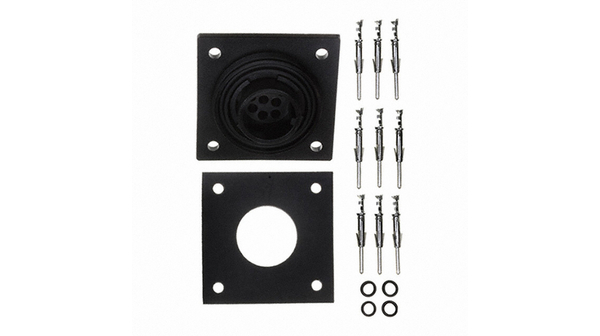

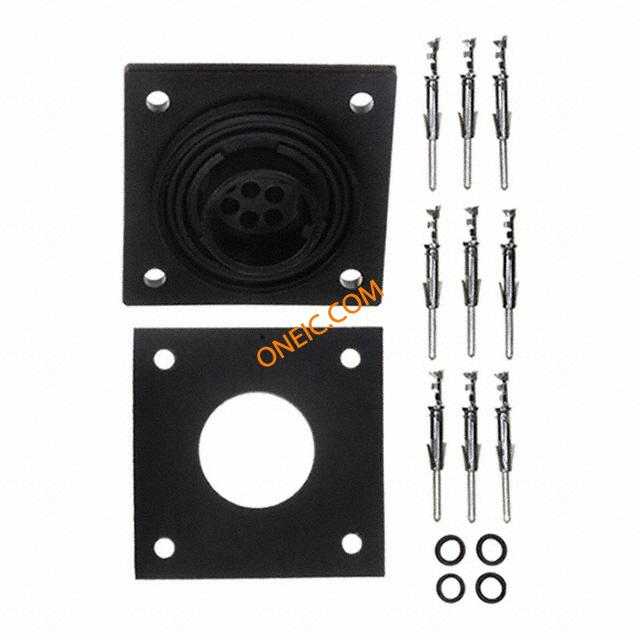

PX0769/P
| 制造商 | Bulgin |
| 描述 | Standard Circular Connector 9 POLE FLANGE PLUG LOW PROFILE CRIMP CONN RCPT 9POS PNL MNT PIN 9 Pole Straight Panel Mount Industrial & Automation Circular Connector with Male Contacts Buccaneer Series Conn Buccaneer PIN 9 POS Crimp ST Flange Mount 9 Terminal 1 Port PLUG, LOW PROFILE, 9 POLE Connector;Pin;9;SuppliedFitted;Crimp;5A;150VAC/VDC;10Megohms(Max.) Panel Mount Plug Standard Buccaneer® with flange 9, PX0769/P, Bulgin Bulgin Buccaneer 系列 9路 面板安装 直向 连接器 , 公触点 |
| 分类 |
商业参数
| 产品类别 | Standard Circular Connector | 标准包装数量 | 25 |
| 工厂包装数量 | 25 | ||
合规参数
| RoHS | RoHS Compliant | SVHC | :No SVHC (19-Dec-2012) |
| 海关税号 | 85369010 | 认证机构 | ULRecognized/CSA/VDE |
| 材料阻燃等级 | :UL94V-0 | ||
电气参数
| 额定电压 | 150 V | 工作电压 | :150V |
| 接触电阻 | :10mohm | 最大额定电流 | 5 A |
| 绝缘电阻 | :100Mohm | ||
机械参数
| 重量 | 0.028 | 材料（通用） | :Glass Filled Nylon |
| 包装方式 | Bulk | 导线线规 | :25AWG |
| 方向 | Keyed | 外壳样式 | Plug |
| 端接方式 | Crimp | 触头类型 | Pin |
| 安装类型 | Panel Mount, Flange | 行程角度 | Straight |
| 电缆直径 | 6-8mm | 连接器类型 | Receptacle, Male Pins |
| 接触镀层 | Tin | 紧固类型 | Threaded |
| 安装样式 | Flange | 插入角度 | :- |
| 本体材料 | :Glass Filled Nylon (Polyamide) | 触头材料 | Copper Alloy |
| 壳体材料 | Polyamide | 主要材料 | Sealed |
| 端接样式 | Screw | 第一触头极性 | Pin (Male) |
| 连接器颜色 | :Black | 配接方向 | Threaded |
| 触点数 | 9 | 面板开孔形状 | :20.2mm |
| 接触件端接 | :Crimp | 介电材料 | Polyamide |
| 位数 | 9 | 外壳尺寸-插件 | :- |
| 安装孔直径 | 3.8mm | 外壳材料及表面处理 | Polyamide, Glass Filled |
| 安装面板厚度 | :33.3mm | 线规或范围 - AWG | :24AWG |
| 第一连接器安装类型 | :Panel | 外径-未扩张 | :8.1mm |
产品信息
| 类型 | PanelPlug | 连接器性别 | :Plug |
| 系列 | Buccaneer | 产品子类型 | Connectors |
| 应用细节 | Commercial | ||
环境参数
| NEMA 机架尺寸 | :IP68 | 防护等级 | IP68/69K - Dust Tight, Waterproof |
| 工作温度 | -20°C ~ 70°C | ||
文档与媒体
相关型号
PX0769/P
Bulgin
Standard Circular Connector 9 POLE FLANGE PLUG LOW PROFILE CRIMP CONN RCPT 9POS PNL MNT PIN 9 Pole Straight Panel Mount Industrial & Automation Circular Connector with Male Contacts Buccaneer Series Conn Buccaneer PIN 9 POS Crimp ST Flange Mount 9 Terminal 1 Port PLUG, LOW PROFILE, 9 POLE Connector;Pin;9;SuppliedFitted;Crimp;5A;150VAC/VDC;10Megohms(Max.) Panel Mount Plug Standard Buccaneer® with flange 9, PX0769/P, Bulgin Bulgin Buccaneer 系列 9路 面板安装 直向 连接器 , 公触点
