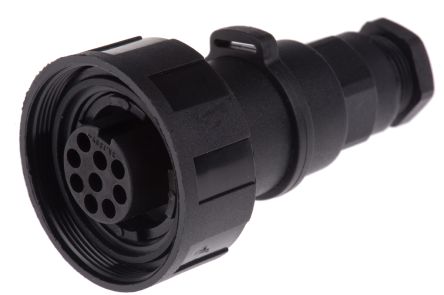

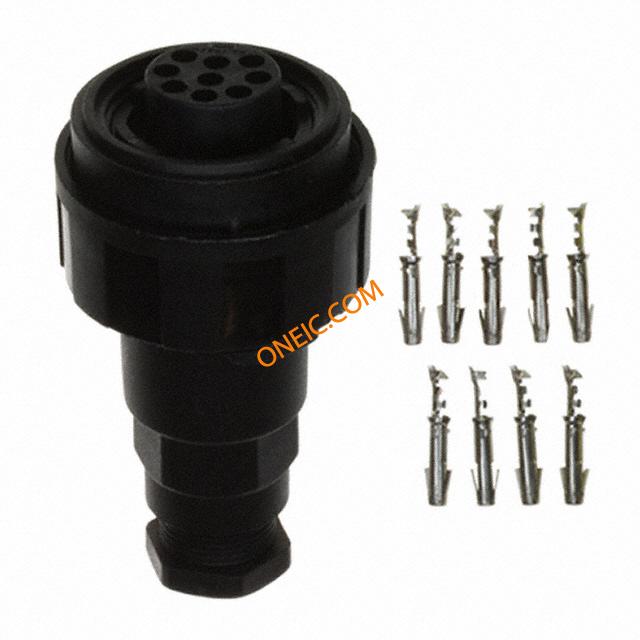

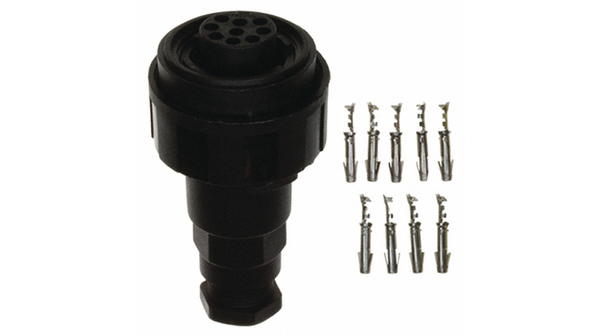

PX0728/S
| 制造商 | Bulgin |
| 描述 | Standard Circular Connector 9 POLE FLEX SKT CONN PLUG 9POS CABLE SKT 9 Pole Straight Cable Mount Industrial & Automation Circular Connector with Female Contacts Buccaneer Series Conn Buccaneer SKT 9 POS Crimp ST Cable Mount 9 Terminal 1 Port SOCKET, SEALED FREE, 9WAY CONN PLUG 9POS INLINE SKT Connector,StandardBuccaneer;Socket;9;69.0mm;38.1mm;3.5to9mm;5A Cable socket, 9-pin 9, PX0728/S, Bulgin Bulgin Buccaneer 系列 9路 电缆安装 直向 连接器 , 母触点 |
| 分类 |
商业参数
| 产品类别 | Standard Circular Connector | 标准包装数量 | 25 |
| 工厂包装数量 | 25 | ||
合规参数
| RoHS | Compliant | 海关税号 | 85369010 |
| 认证机构 | ULRecognized/CSA/VDE | 材料阻燃等级 | :UL94V-0 |
电气参数
| 额定电压 | 150VAC/DC | 工作电压 | :150V |
| 接触电阻 | :10mohm | 最大额定电流 | 5A |
| 绝缘电阻 | :100Mohm | ||
机械参数
| 长度 | :65mm | 重量 | 0.032 |
| 材料（通用） | :Glass Filled Nylon | 包装方式 | Bulk |
| 导线线规 | :25AWG | 方向 | Keyed |
| 外壳样式 | Receptacle | 端接方式 | Crimp |
| 触头类型 | Socket | 安装类型 | Free Hanging (In-Line) |
| 外壳镀层 | Tin | 行程角度 | Straight |
| 电缆直径 | 6-8mm | 连接器类型 | Plug, Female Sockets |
| 接触镀层 | Tin | 紧固类型 | Threaded |
| 安装样式 | Free Hanging | 插入角度 | :- |
| 本体材料 | :Glass Filled Nylon (Polyamide) | 触头材料 | Copper Alloy |
| 壳体材料 | GlassFilledPolyamide | 主要材料 | Sealed |
| 端接样式 | Crimp | 第一触头极性 | Female |
| 连接器颜色 | :Black | 外径 | :38.1mm |
| 配接方向 | Threaded | 触点数 | 9 |
| 接触件端接 | :Crimp | 介电材料 | Polyamide |
| 位数 | 9 | 外壳尺寸-插件 | :- |
| 外壳材料及表面处理 | Polyamide, Glass Filled | 线规或范围 - AWG | :24AWG |
| 第一连接器安装类型 | :Cable | 外径-未扩张 | :8.1mm |
产品信息
| 类型 | CableSocket | 连接器性别 | :Socket |
| 系列 | Buccaneer | 产品特性 | ScrewLocking |
| 产品子类型 | Connectors | ||
环境参数
| NEMA 机架尺寸 | :IP68 | 防护等级 | IP68/69K - Dust Tight, Waterproof |
| 工作温度 | -20°C ~ 70°C | ||
文档与媒体
相关型号

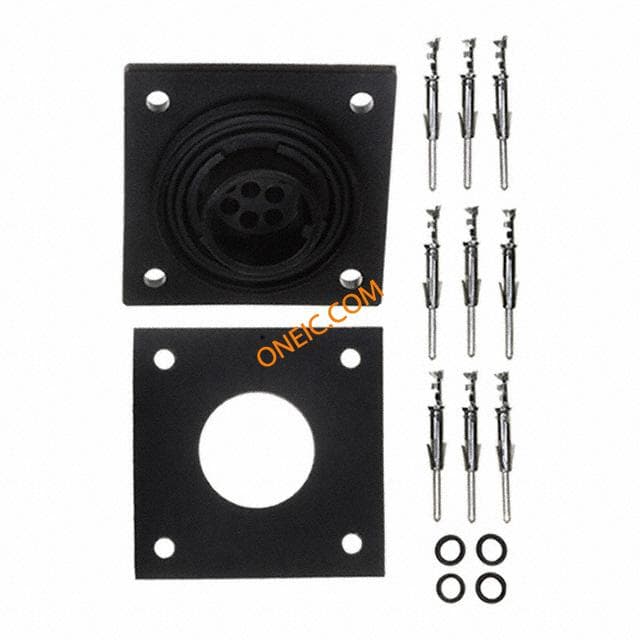

PX0769/P
Bulgin
Standard Circular Connector 9 POLE FLANGE PLUG LOW PROFILE CRIMP CONN RCPT 9POS PNL MNT PIN 9 Pole Straight Panel Mount Industrial & Automation Circular Connector with Male Contacts Buccaneer Series Conn Buccaneer PIN 9 POS Crimp ST Flange Mount 9 Terminal 1 Port PLUG, LOW PROFILE, 9 POLE Connector;Pin;9;SuppliedFitted;Crimp;5A;150VAC/VDC;10Megohms(Max.) Panel Mount Plug Standard Buccaneer® with flange 9, PX0769/P, Bulgin Bulgin Buccaneer 系列 9路 面板安装 直向 连接器 , 公触点
12023
Bulgin
Cable Mounting & Accessories CABLE GLAND 6-8MM COLOR BLACK SEALING GLAND BLACK
13826
Bulgin
Crimpers CRIMP TOOL 9 WAY TOOL HAND 9POS CRIMP Tool; Crimp; 9; Inserting and Extracting 25 Way Contacts Crimp Tools For 3, 9,12 And 25 Pole Crimp Contacts Tool,Crimp;9;InsertingandExtracting25WayContacts Bulgin Standard Buccaneer 系列 9 触点 压接工具 压接工具
PX0727/P
Bulgin
Standard Circular Connector 9 POLE CHAS MT PLUG CONN RCPT 9POS PNL MNT PIN 9 Pole Straight Panel Mount Industrial & Automation Circular Connector with Male Contacts Buccaneer Series Conn Buccaneer PIN 9 POS Crimp ST Panel Mount 9 Terminal 1 Port PLUG, SEALED PANEL, 9WAY Connector;Pin;9;24to26AWG;CrimpContacts;5A;150V;-20todegC Panel-mount male receptacle, 9-pin 9, PX0727/P, Bulgin Bulgin Buccaneer 系列 9路 面板安装 直向 连接器 , 公触点
PX0734
Bulgin
Standard Circular Connector SEALING CAP CONN CAP SEALING FOR USE W/CABLE Sealing Cap Tool CAP/ASSEMBLY TOOL Cap,Sealing;FitsflexMountingtypes,Buccaneer Protection cover; external thread; Buccaneer Standard; IP68 Protective cap, PX0734, Bulgin Bulgin 外壳
PX0729/P
Bulgin
Standard Circular Connector 9 POLE IN-LINE PLUG CRIMP CONN RCPT 9POS PNL MNT PIN 9 Pole Straight Cable Mount Industrial & Automation Circular Connector with Male Contacts Buccaneer Series Conn Buccaneer PIN 9 POS Crimp ST Cable Mount 9 Terminal 1 Port CONN RCPT 9POS INLINE PIN CableConnector,In-Line;9;Plug;6to8mmDia;In-LineFlex;Crimp;5A Bulgin Buccaneer 系列 9路 电缆安装 直向 连接器 , 公触点
PX0733
Bulgin
Standard Circular Connector SEALING CAP CONN CAP SEALING FOR W/ALL OTHER Sealing cap for chassis connector Connector Accessories USB Sealing Cap SEALING CAP, FOR PX0847 CONNECTOR Cap,Sealing;Fitspanelmountandflex-in-lineconnector;Buccaneer Protection cover; Buccaneer Standard; IP68; internal thread Protective cap, PX0733, Bulgin Bulgin 插座 IP68 防尘盖
12237
Bulgin
Standard Circular Connector STR REL 5-7 & 7-9MM CABLE SUPPORT FOR STD BUCCANEER Cable strain relief for IP68 connector STRAIN RELIEF, BUCCANEER CableSupport;BuccaneerSuitablefor5-7mmand7-9mmcablediameters Bend protection; Buccaneer Standard; IP68; 5÷7mm Anti-kink sleeve for for cable 5...9 mm, 12237, Bulgin Bulgin 应变消除, 使用于Buccaneer 系列

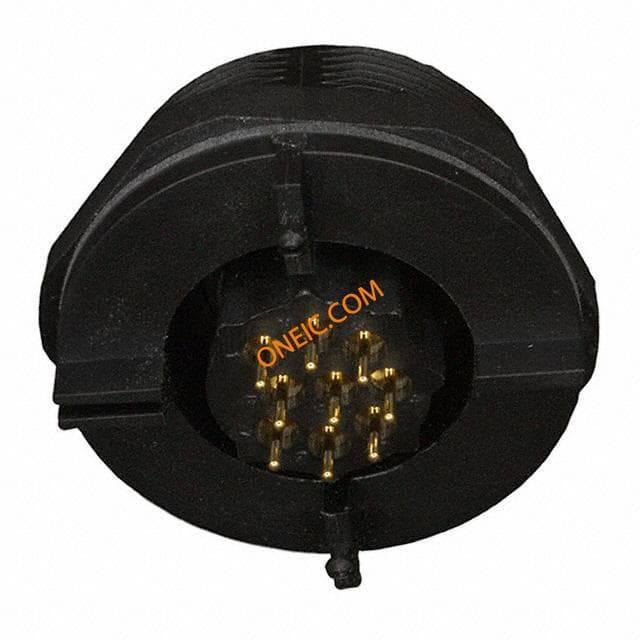

PX0707/P/09
