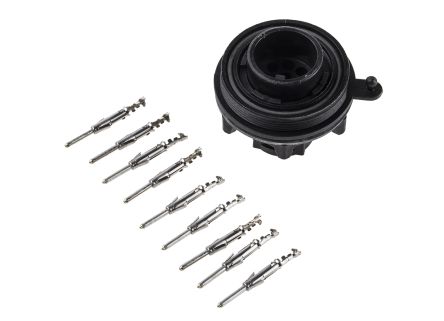

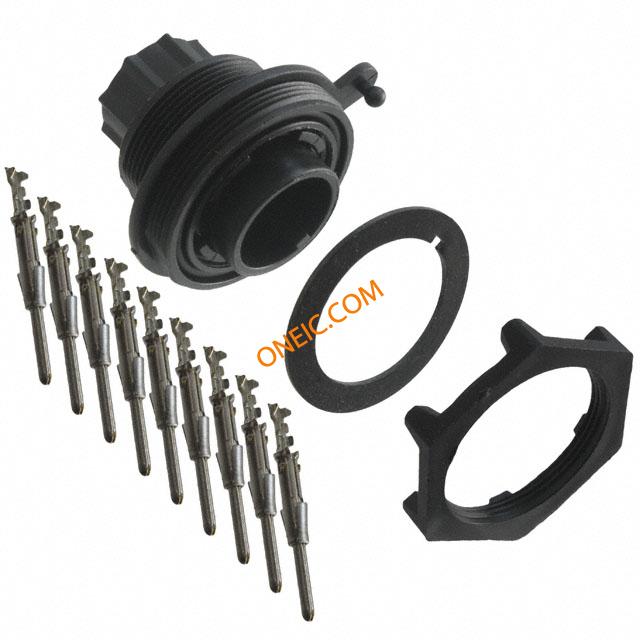

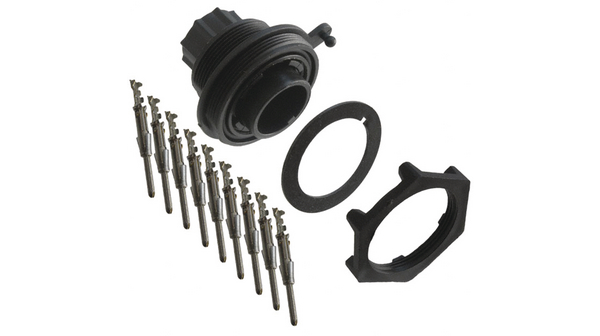

PX0727/P
| 制造商 | Bulgin |
| 描述 | Standard Circular Connector 9 POLE CHAS MT PLUG CONN RCPT 9POS PNL MNT PIN 9 Pole Straight Panel Mount Industrial & Automation Circular Connector with Male Contacts Buccaneer Series Conn Buccaneer PIN 9 POS Crimp ST Panel Mount 9 Terminal 1 Port PLUG, SEALED PANEL, 9WAY Connector;Pin;9;24to26AWG;CrimpContacts;5A;150V;-20todegC Panel-mount male receptacle, 9-pin 9, PX0727/P, Bulgin Bulgin Buccaneer 系列 9路 面板安装 直向 连接器 , 公触点 |
| 分类 |
商业参数
| 产品类别 | Standard Circular Connector | 标准包装数量 | 25 |
| 工厂包装数量 | 25 | ||
合规参数
| RoHS | Compliant | SVHC | :No SVHC (19-Dec-2012) |
| 海关税号 | 85369010 | 认证机构 | ULRecognized/CSA/VDE |
| 材料阻燃等级 | :UL94V-0 | ||
电气参数
| 额定电压 | 150VAC/DC | 工作电压 | :150V |
| 接触电阻 | :10mohm | 最大额定电流 | 5A |
| 绝缘电阻 | :100Mohm | ||
机械参数
| 长度 | :32mm | 重量 | 0.022 |
| 材料（通用） | :Glass Filled Nylon | 包装方式 | Bulk |
| 导线线规 | :25AWG | 方向 | Keyed |
| 外壳样式 | Plug | 端接方式 | Crimp |
| 触头类型 | Pin | 安装类型 | Panel Mount |
| 外壳镀层 | Nickel | 行程角度 | Straight |
| 电缆直径 | 6-8mm | 连接器类型 | Receptacle, Male Pins |
| 接触镀层 | Tin | 紧固类型 | Threaded |
| 安装样式 | Panel | 插入角度 | :- |
| 本体材料 | :Glass Filled Nylon (Polyamide) | 面板厚度 | :6.4mm |
| 触头材料 | Copper Alloy | 壳体材料 | GlassFilledPolyamide |
| 主要材料 | Sealed | 端接样式 | Crimp |
| 第一触头极性 | Male | 连接器颜色 | :Black |
| 外径 | :37.1mm | 配接方向 | Threaded |
| 触点数 | 9 | 接触件端接 | :Crimp |
| 介电材料 | Polyamide | 位数 | 9 |
| 外壳尺寸-插件 | :- | 外壳材料及表面处理 | Polyamide, Glass Filled |
| 线规或范围 - AWG | :24AWG | 第一连接器安装类型 | :Panel |
| 外径-未扩张 | :8.1mm | ||
产品信息
| 类型 | PanelPlug | 连接器性别 | :Plug |
| 系列 | Buccaneer | 产品子类型 | Connectors |
环境参数
| NEMA 机架尺寸 | :IP68 | 防护等级 | IP68/69K - Dust Tight, Waterproof |
| 工作温度 | -20°C ~ 70°C | ||
文档与媒体
相关型号
12023
Bulgin
Cable Mounting & Accessories CABLE GLAND 6-8MM COLOR BLACK SEALING GLAND BLACK
12023/5
Bulgin
Cable Mounting & Accessories CABLE GLAND 3.5-5MM COLOR GRAY SEALING GLAND WHITE
12023/1
Bulgin
Cable Mounting & Accessories CABLE GLAND 5-7MM COLOR WHITE SEALING GLAND WHITE BUSHES 5-7MM Cable Accessories Gland White SEALINGGLAND Bulgin 电缆固定头
13826
Bulgin
Crimpers CRIMP TOOL 9 WAY TOOL HAND 9POS CRIMP Tool; Crimp; 9; Inserting and Extracting 25 Way Contacts Crimp Tools For 3, 9,12 And 25 Pole Crimp Contacts Tool,Crimp;9;InsertingandExtracting25WayContacts Bulgin Standard Buccaneer 系列 9 触点 压接工具 压接工具

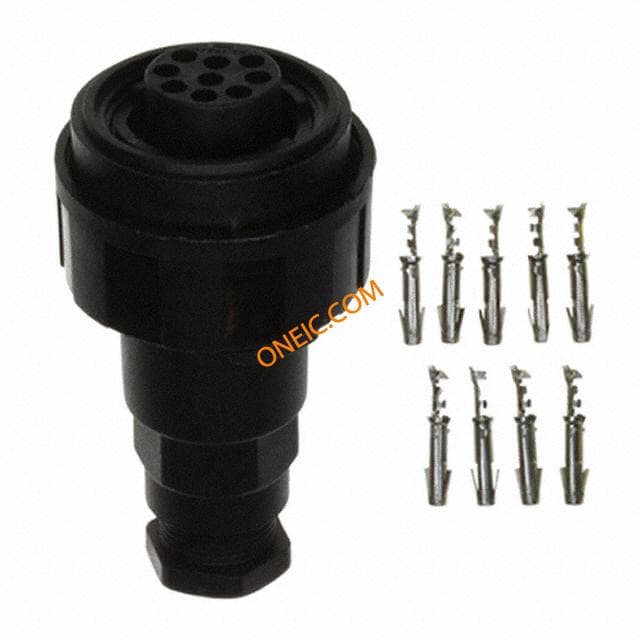

PX0728/S
Bulgin
Standard Circular Connector 9 POLE FLEX SKT CONN PLUG 9POS CABLE SKT 9 Pole Straight Cable Mount Industrial & Automation Circular Connector with Female Contacts Buccaneer Series Conn Buccaneer SKT 9 POS Crimp ST Cable Mount 9 Terminal 1 Port SOCKET, SEALED FREE, 9WAY CONN PLUG 9POS INLINE SKT Connector,StandardBuccaneer;Socket;9;69.0mm;38.1mm;3.5to9mm;5A Cable socket, 9-pin 9, PX0728/S, Bulgin Bulgin Buccaneer 系列 9路 电缆安装 直向 连接器 , 母触点
PX0727/P
Bulgin
Standard Circular Connector 9 POLE CHAS MT PLUG CONN RCPT 9POS PNL MNT PIN 9 Pole Straight Panel Mount Industrial & Automation Circular Connector with Male Contacts Buccaneer Series Conn Buccaneer PIN 9 POS Crimp ST Panel Mount 9 Terminal 1 Port PLUG, SEALED PANEL, 9WAY Connector;Pin;9;24to26AWG;CrimpContacts;5A;150V;-20todegC Panel-mount male receptacle, 9-pin 9, PX0727/P, Bulgin Bulgin Buccaneer 系列 9路 面板安装 直向 连接器 , 公触点
12855
Bulgin
Standard Circular Connector PVC BOOT FOR PNL MNT TYPES PVC INSULATION BOOT Cable Boots PVC BOOT FOR PNL MNT TYPES Connector Accessories Straight Insulation Boot Polyvinyl Chloride Boot;PVC;33.3mm;ULListed;PanelmountingtypeUsedWith Protective cap, 12855, Bulgin Bulgin Standard Buccaneer 系列 PCB 针座PVC 绝缘罩
PX0734
Bulgin
Standard Circular Connector SEALING CAP CONN CAP SEALING FOR USE W/CABLE Sealing Cap Tool CAP/ASSEMBLY TOOL Cap,Sealing;FitsflexMountingtypes,Buccaneer Protection cover; external thread; Buccaneer Standard; IP68 Protective cap, PX0734, Bulgin Bulgin 外壳
SA3253
Bulgin
Standard Circular Connector GLAND 3 PACK 3.5-5MM 5-7MM & 7-9MM STANDARD BUCCANEER GLAND PACK Gland pack Cable Accessories Gland CABLE GLAND, CLAMP STANDARD CableGland(Clamp);3/pk Gaskets set; Buccaneer Standard; IP68; 3.5÷9mm Bulgin 电缆固定头 , -20°C至+70°C

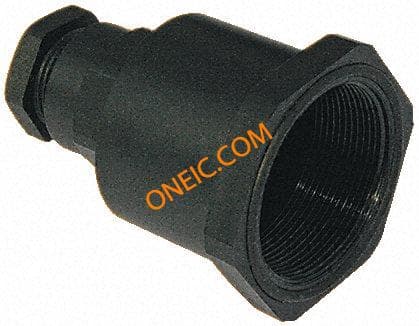

PX0799
