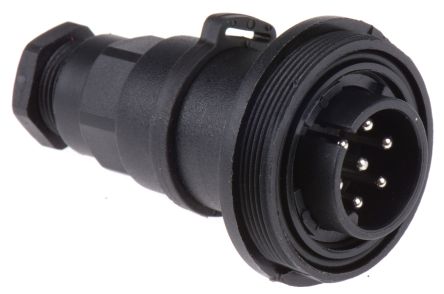

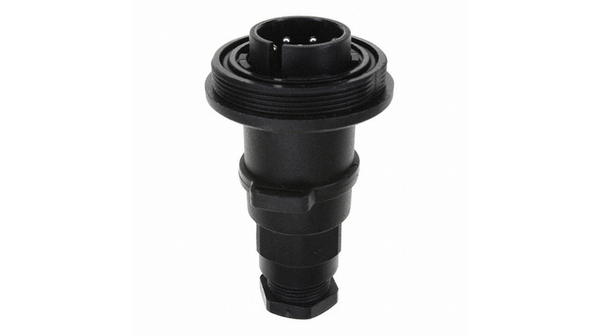

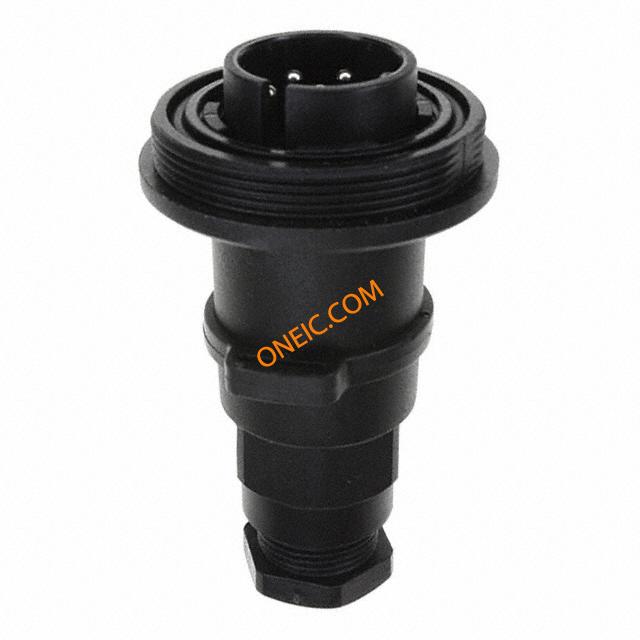

PX0746/P
| 制造商 | Bulgin |
| 描述 | Standard Circular Connector 7 POLE IN-LINE PLUG CONN RCPT 7POS INLINE PIN 7 Pole Straight Cable Mount Industrial & Automation Circular Connector with Male Contacts Buccaneer Series Conn Buccaneer PIN 7 POS Screw ST Cable Mount 7 Terminal 1 Port PLUG, INLINE, 7 POLE CableConnector,In-Line;7;Plug;6to8mmDia;In-LineFlex;Screw;3A Coupling connector, 7-pin 7, PX0746/P, Bulgin Bulgin Buccaneer 系列 7路 电缆安装 直向 连接器 , 公触点 |
| 分类 |
商业参数
| 产品类别 | Standard Circular Connector | 标准包装数量 | 25 |
| 工厂包装数量 | 25 | ||
合规参数
| RoHS | Compliant | SVHC | :No SVHC (19-Dec-2012) |
| 海关税号 | 85369010 | 认证机构 | ULRecognized/CSA/VDE |
| 材料阻燃等级 | :UL94V-0 | ||
电气参数
| 额定电压 | 277VAC/DC | 工作电压 | :250V |
| 接触电阻 | :10mohm | 最大额定电流 | 5A |
| 绝缘电阻 | :100Mohm | ||
机械参数
| 长度 | :67.4mm | 重量 | 0.028 |
| 材料（通用） | :Glass Filled Nylon | 包装方式 | Bulk |
| 导线线规 | 16 | 方向 | Keyed |
| 外壳样式 | Plug | 端接方式 | Screw |
| 触头类型 | Pin | 安装类型 | Free Hanging (In-Line) |
| 行程角度 | Straight | 电缆直径 | 6-8mm |
| 连接器类型 | Receptacle, Male Pins | 接触镀层 | Nickel |
| 紧固类型 | Threaded | 安装样式 | Free Hanging |
| 插入角度 | :- | 本体材料 | :Glass Filled Nylon (Polyamide) |
| 触头材料 | Brass | 壳体材料 | GlassFilledPolyamide |
| 主要材料 | Sealed | 端接样式 | Screw |
| 第一触头极性 | Male | 连接器颜色 | :Black |
| 外径 | :38.1mm | 触点数 | 7 |
| 接触件端接 | :Screw | 介电材料 | Polyamide |
| 位数 | 7 | 外壳尺寸-插件 | :- |
| 外壳材料及表面处理 | Polyamide, Glass Filled | 第一连接器安装类型 | :Cable |
| 外径-未扩张 | :8.1mm | ||
产品信息
| 类型 | CablePlug | 连接器性别 | :Plug |
| 系列 | Buccaneer | 产品子类型 | Connectors |
环境参数
| NEMA 机架尺寸 | :IP68 | 防护等级 | IP68/69K - Dust Tight, Waterproof |
| 工作温度 | -20°C ~ 70°C | ||
