点击放大查看

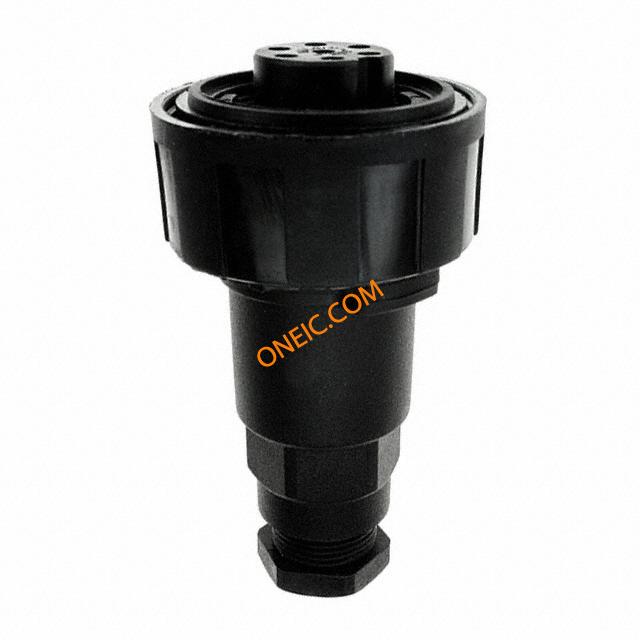

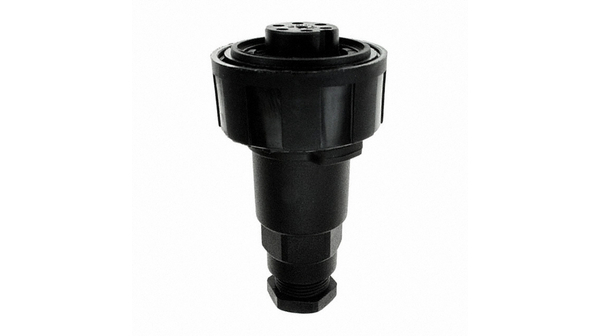

PX0745/S
| 制造商 | Bulgin |
| 描述 | Standard Circular Connector 7 POLE FLEX SKT CONN PLUG 7POS CABLE SKT 7 Pole Straight Cable Mount Industrial & Automation Circular Connector with Female Contacts Buccaneer Series SOCKET, FREE, 7 POLE CONN PLUG 7POS INLINE SKT Connector,StandardBuccaneer;Socket;7;69.0mm;38.1mm;3.5to9mm;3A Cable socket, 7-pin 7, PX0745/S, Bulgin Bulgin Buccaneer 系列 7路 电缆安装 直向 连接器 , 母触点 |
| 分类 |
商业参数
| 产品类别 | Standard Circular Connector | 标准包装数量 | 25 |
| 工厂包装数量 | 25 | ||
合规参数
| RoHS | Compliant | SVHC | :No SVHC (19-Dec-2012) |
| 海关税号 | 85369010 | 认证机构 | ULRecognized/CSA/VDE |
| 材料阻燃等级 | :UL94V-0 | ||
电气参数
| 额定电压 | 277VAC/DC | 工作电压 | :277V |
| 接触电阻 | :10mohm | 最大额定电流 | 5A |
| 绝缘电阻 | :100Mohm | ||
机械参数
| 长度 | :65mm | 重量 | 0.036 |
| 材料（通用） | :Glass Filled Nylon | 包装方式 | Bulk |
| 导线线规 | 16 | 方向 | Keyed |
| 外壳样式 | Receptacle | 端接方式 | Screw |
| 触头类型 | Socket | 安装类型 | Free Hanging (In-Line) |
| 行程角度 | Straight | 电缆直径 | 6-8mm |
| 连接器类型 | Plug, Female Sockets | 接触镀层 | Nickel |
| 紧固类型 | Threaded | 安装样式 | Free Hanging |
| 插入角度 | :- | 本体材料 | :Glass Filled Nylon (Polyamide) |
| 触头材料 | Brass | 壳体材料 | GlassFilledPolyamide |
| 主要材料 | Sealed | 端接样式 | Screw |
| 第一触头极性 | Female | 连接器颜色 | :Black |
| 外径 | :38.1mm | 配接方向 | Threaded |
| 触点数 | 7 | 接触件端接 | :Screw |
| 介电材料 | Polyamide | 位数 | 7 |
| 外壳尺寸-插件 | :- | 外壳材料及表面处理 | Polyamide, Glass Filled |
| 第一连接器安装类型 | :Cable | 外径-未扩张 | :8.1mm |
产品信息
| 类型 | CableSocket | 连接器性别 | :Receptacle |
| 系列 | Buccaneer | 产品特性 | ScrewLocking |
| 产品子类型 | Connectors | ||
环境参数
| NEMA 机架尺寸 | :IP68 | 防护等级 | IP68/69K - Dust Tight, Waterproof |
| 工作温度 | -20°C ~ 70°C | ||
文档与媒体
相关型号
12023
Bulgin
Cable Mounting & Accessories CABLE GLAND 6-8MM COLOR BLACK SEALING GLAND BLACK
PX0744/P
Bulgin
Standard Circular Connector 7 POLE CHAS MT PLG CONN RCPT 7POS PNL MNT PIN 7 Pole Straight Panel Mount Industrial & Automation Circular Connector with Male Contacts Buccaneer Series Conn Buccaneer PIN 7 POS Screw ST Panel Mount 7 Terminal 1 Port PLUG, PANEL, 7 POLE Connector;Pin;7;16AWG;Screw;3A;250V;10Milliohms(Max.);Panel Panel-mount male receptacle, 7-pin 7, PX0744/P, Bulgin Bulgin Buccaneer 系列 7路 面板安装 直向 连接器 , 公触点
PX0734
Bulgin
Standard Circular Connector SEALING CAP CONN CAP SEALING FOR USE W/CABLE Sealing Cap Tool CAP/ASSEMBLY TOOL Cap,Sealing;FitsflexMountingtypes,Buccaneer Protection cover; external thread; Buccaneer Standard; IP68 Protective cap, PX0734, Bulgin Bulgin 外壳
PX0745/S
Bulgin
Standard Circular Connector 7 POLE FLEX SKT CONN PLUG 7POS CABLE SKT 7 Pole Straight Cable Mount Industrial & Automation Circular Connector with Female Contacts Buccaneer Series SOCKET, FREE, 7 POLE CONN PLUG 7POS INLINE SKT Connector,StandardBuccaneer;Socket;7;69.0mm;38.1mm;3.5to9mm;3A Cable socket, 7-pin 7, PX0745/S, Bulgin Bulgin Buccaneer 系列 7路 电缆安装 直向 连接器 , 母触点

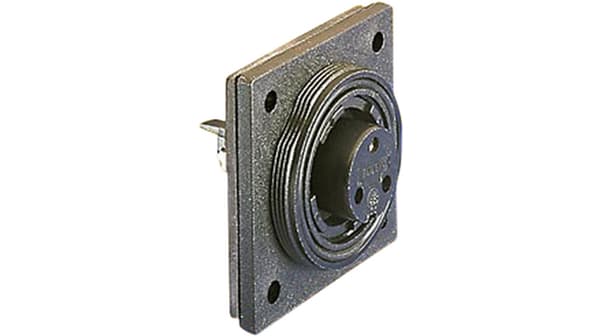

PX0768/P
Bulgin
Standard Circular Connector 7 POLE FLANGE PLUG LOW PROFILE SCREW CONN RCPT 7POS PNL MNT PIN Connector;LowProfileFlangeMounting;PinContacts;7Pole;ScrewTerm. Panel Mount Plug Standard Buccaneer® with flange 7, PX0768/P, Bulgin Bulgin PX0 系列 7路 法兰安装 直向 连接器 插座 , 公触点, 快速连接接合

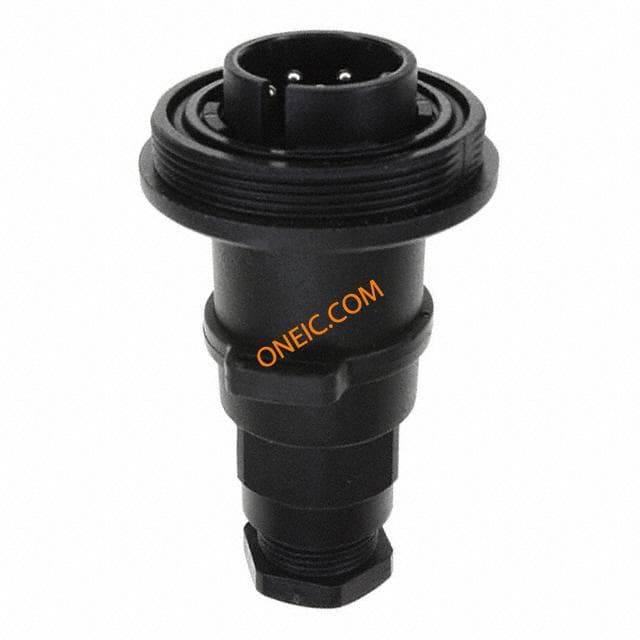

PX0746/P
