PX0412/12P
| 制造商 | Bulgin |
| 描述 | Standard Circular Connector 12 POLE CHAS MT PLUG CONN HSNG RCPT JAM NUT 12POS PIN 12 Pole Straight Panel Mount Industrial & Automation Circular Connector with Male Contacts Buccaneer Series Conn Buccaneer PIN 12 POS Crimp ST Panel Mount 12 Terminal 1 Port PLUG, CHASSIS MOUNT, 12WAY Connector;Plug;12;24to28AWG;CrimpandSolder;1A;50VAC/VDC;UL94V-0 Connector: circular; socket; male; PIN:12; w/o terminals; IP68 appliance plug Buccaneer 400, 12-pole 12, PX0412/12P, Bulgin Bulgin Buccaneer 系列 12路 面板安装 直向 连接器 , 公触点 |
| 分类 |
商业参数
| 产品类别 | Standard Circular Connector | 标准包装数量 | 25 |
| 工厂包装数量 | 25 | ||
合规参数
| RoHS | Compliant | SVHC | :No SVHC (19-Dec-2012) |
| 海关税号 | 85366990 | 认证机构 | ULRecognized/CSA/VDE |
| 材料阻燃等级 | :UL94V-0 | ||
电气参数
| 额定电压 | 50 V ac/dc | 工作电压 | :50V |
| 接触电阻 | :5mohm | 最大额定电流 | 1A |
| 绝缘电阻 | :10Mohm | 连接器类型 - 电压输入 | w/o terminals |
机械参数
| 重量 | 0.004 | 材料（通用） | :Nitrile |
| 包装方式 | Bulk | 导线线规 | :24AWG |
| 方向 | Keyed | 外壳样式 | Plug |
| 本体尺寸 | Ø22 x 19.9mm | 端接方式 | Crimp |
| 触头类型 | Crimp and Solder Cup | 基体材料 | polyamide |
| 安装类型 | Panel Mount, Bulkhead - Rear Side Nut | 行程角度 | Straight |
| 连接器类型 | Receptacle for Male Contacts | 接触镀层 | Gold |
| 紧固类型 | Threaded | 安装样式 | Panel |
| 外壳材料（壳体） | Plastic | 插入角度 | :- |
| 锁定特性 | threaded joint, external thread | 本体材料 | :Nylon (Polyamide) |
| 触头材料 | Copper Alloy | 壳体材料 | Polyamide |
| 包装数量 | 25 | 主要材料 | Sealed |
| 连接器 - 电缆 | socket | 第一触头极性 | Male |
| 配接方向 | Threaded | 触点数 | 12 |
| 位数 | 12 | 外壳尺寸-插件 | :- |
| 外壳材料及表面处理 | Polyamide | 线规或范围 - AWG | :28AWG |
| 第一连接器安装类型 | :Cable | 外径-未扩张 | :7mm |
产品信息
| SPG | 25 | 备注 | Contacts Not Provided |
| 类型 | PanelPlug | 连接器性别 | :Plug |
| 系列 | Buccaneer | 制造商全称 | 400Series |
| 产品子类型 | Connectors | 适配器系列 | Buccaneer 400 |
| 单元数量 | 1 | ||
环境参数
| NEMA 机架尺寸 | :IP68 | 防护等级 | IP68 - Dust Tight, Waterproof |
| 工作温度 | +80°C | ||
文档与媒体
相关型号
SA3180/1
Bulgin
Standard Circular Contacts SOLDER PIN 12P 24AWG 1 = 1 PKT of 10/pcs CONT PIN 1A SLD 24-28AWG 1=10PC 1A solder pin contact,24-28awg Contact PIN Solder ST Cable Mount CIRCULAR CONTACT, PIN, 28-24 AWG, SOLDER Contact;Pin;10,12;Solder;1A;50V;Gold;IP68 Contact; male; 24÷28AWG; Buccaneer 400; gold plated; soldering Soldering contact, male, for 10 and 12-pole, SA3180/1, Bulgin Bulgin 400 系列 1A 公 焊接端接 圆形 连接器 触芯, 使用于Buccaneer 400 系列圆形连接器, 28 → 24 AWG 线规格
PX0410/12S/6570
Bulgin
Standard Circular Connector 12 POLE FLEX SKT 6.5-7.0MM BLACK CONN HSNG PLUG CABLE 12POS SKT Conn Buccaneer SKT 12 POS Crimp ST Cable Mount 12 Terminal 1 Port 400SERIESBUCCANEERFLEXCABLECONNECTOR
PX0410/10S/6065
Bulgin
Standard Circular Connector 10 POLE FLEX SKT CONN HSNG PLUG CABLE 10POS SKT 10 Pole Straight Cable Mount Industrial & Automation Circular Connector with Female Contacts Buccaneer Series Conn Buccaneer SKT 10 POS Crimp ST Cable Mount 10 Terminal 1 Port SOCKET, FREE, 10WAY CONN HSNG PLUG INLINE 10POS SKT Connector,Cable;Socket;10;46mm(Max.);1A;50VAC/DC;5Milliohms(Max.) Connector: circular; plug; female; PIN:10; w/o terminals; IP68 Cable socket Buccaneer 400, 10-pole 10, PX0410/10S/6065, Bulgin Bulgin Buccaneer 系列 10路 电缆安装 直向 连接器 , 母触点
PX0480
Bulgin
Standard Circular Connector SEALING CAP CONN CAP SEAL FOR PX0412/PX0414 Buccaneer 400 chassis mount sealing cap SEALING CAP, CHASSIS SealingCap,Connector;Panelmountingconnector;400Series Protection cover; threaded joint, internal thread; IP68 Protective cap for appliance plugs/sockets, PX0480, Bulgin

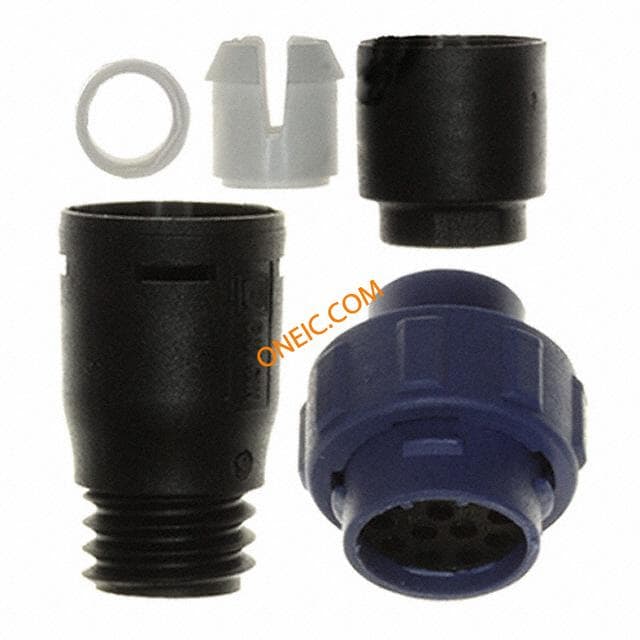

PX0410/12S/6065
