点击放大查看

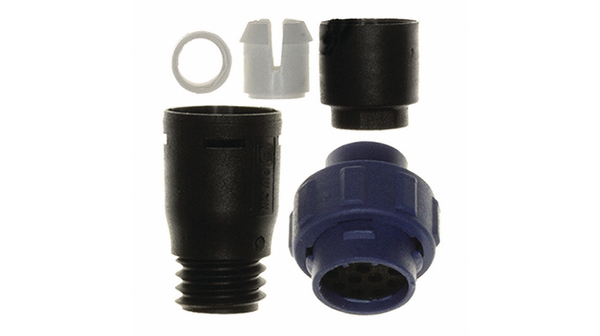

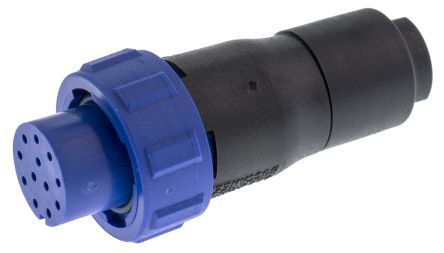

PX0410/12S/6065
| 制造商 | Bulgin |
| 描述 | Standard Circular Connector 12 POLE FLEX SKT CONN HSNG PLUG CABLE 12POS SKT 12 Pole Straight Cable Mount Industrial & Automation Circular Connector with Female Contacts Buccaneer Series Conn Buccaneer SKT 12 POS Crimp ST Cable Mount 12 Terminal 1 Port SOCKET, FREE, 12WAY CONN HSNG PLUG INLINE 12POS SKT Connector,Cable;Socket;12;46mm(Max.);1A;50VAC/DC;5Milliohms(Max.) Connector: circular; plug; female; PIN:12; w/o terminals; IP68 Cable socket Buccaneer 400, 12-pole 12, PX0410/12S/6065, Bulgin Bulgin Buccaneer 系列 12路 电缆安装 直向 连接器 , 母触点 |
| 分类 |
商业参数
| 产品类别 | Standard Circular Connector | 标准包装数量 | 25 |
| 工厂包装数量 | 25 | ||
合规参数
| RoHS | Compliant | SVHC | :No SVHC (19-Dec-2012) |
| 海关税号 | 85366990 | 认证机构 | ULRecognized/CSA/VDE |
| 材料阻燃等级 | :UL94V-0 | ||
电气参数
| 额定电压 | 50 V ac/dc | 工作电压 | :50V |
| 接触电阻 | :5mohm | 最大额定电流 | 1A |
| 绝缘电阻 | :10Mohm | 连接器类型 - 电压输入 | w/o terminals |
机械参数
| 重量 | 0.004 | 材料（通用） | :Nitrile |
| 包装方式 | Bulk | 导线线规 | :24AWG |
| 方向 | Keyed | 外壳样式 | Receptacle |
| 本体尺寸 | Ø19.1 x 46mm | 端接方式 | Crimp |
| 触头类型 | Crimp and Solder Cup | 基体材料 | polyamide |
| 安装类型 | Free Hanging (In-Line) | 行程角度 | Straight |
| 电缆直径 | 6-6.5mm | 连接器类型 | Plug for Female Contacts |
| 接触镀层 | Gold | 紧固类型 | Threaded |
| 安装样式 | Free Hanging | 外壳材料（壳体） | Plastic |
| 插入角度 | :- | 锁定特性 | threaded joint, internal thread |
| 本体材料 | :Nylon (Polyamide) | 触头材料 | Copper Alloy |
| 壳体材料 | Polyamide | 包装数量 | 25 |
| 主要材料 | Sealed | 连接器 - 电缆 | plug |
| 端接样式 | Crimp / Solder | 第一触头极性 | Female |
| 配接方向 | Threaded | 触点数 | 12 |
| 位数 | 12 | 外壳尺寸-插件 | :- |
| 外壳材料及表面处理 | Polyamide | 线规或范围 - AWG | :28AWG |
| 第一连接器安装类型 | :Cable | 外径-未扩张 | :6.5mm |
产品信息
| SPG | 25 | 备注 | Contacts Not Provided |
| 类型 | CableSocket | 连接器性别 | :Receptacle |
| 系列 | Buccaneer | 产品特性 | ScrewLocking |
| 制造商全称 | 400Series | 产品子类型 | Connectors |
| 适配器系列 | Buccaneer 400 | 单元数量 | 1 |
环境参数
| NEMA 机架尺寸 | :IP68 | 防护等级 | IP68 - Dust Tight, Waterproof |
| 工作温度 | +80°C | ||
文档与媒体
相关型号

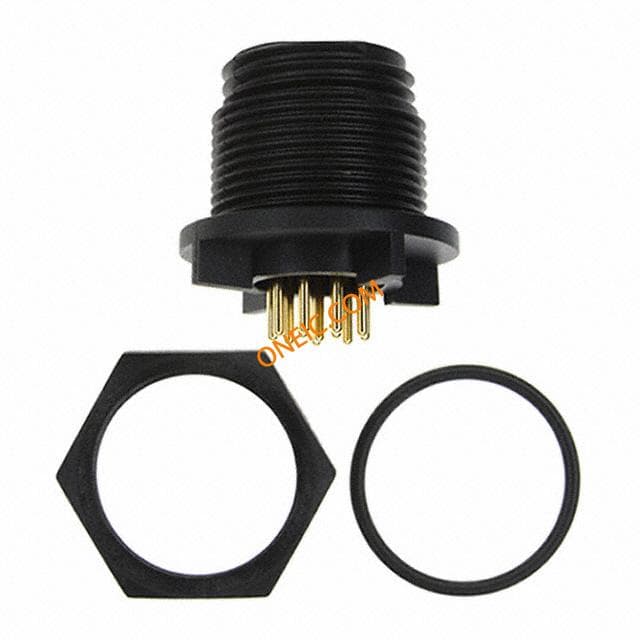

PX0413/12P/PC
Bulgin
Standard Circular Connector PCB pin con -12 pole CONN RCPT 12POS PNL MNT PCB PIN 12 Pole Straight Through Hole Industrial & Automation Circular Connector with Male Contacts Buccaneer Series Conn Buccaneer PIN 12 POS Solder ST Thru-Hole 12 Terminal 1 Port PLUG, PCB, IP68, 12POLE SERIES400REARPANELMOUNTINGPCB-12PoleMale Bulgin Buccaneer 系列 12路 通孔 直向 连接器 , 公触点
SA3179
Bulgin
Standard Circular Contacts CRIMP SKT 12P 24AWG 1 = 1 PKT of 10/pcs CONT SKT 1A CRMP 24-28AWG 1=10PC 400 Series 1A Female Circular Connector Contact, Crimp,Wire size 28 to 24AWG CRIMP SOCKET, PK10 Contacts,Standard,Buccaneer,25-Way,CrimpSockets Crimp contact, female, for 10 and 12-pole, SA3179, Bulgin Bulgin 400 系列 1A 母 压接端接 圆形 连接器 触芯, 使用于Buccaneer 400 系列连接器, 28 → 24 AWG 线规格
PX0412/12P
Bulgin
Standard Circular Connector 12 POLE CHAS MT PLUG CONN HSNG RCPT JAM NUT 12POS PIN 12 Pole Straight Panel Mount Industrial & Automation Circular Connector with Male Contacts Buccaneer Series Conn Buccaneer PIN 12 POS Crimp ST Panel Mount 12 Terminal 1 Port PLUG, CHASSIS MOUNT, 12WAY Connector;Plug;12;24to28AWG;CrimpandSolder;1A;50VAC/VDC;UL94V-0 Connector: circular; socket; male; PIN:12; w/o terminals; IP68 appliance plug Buccaneer 400, 12-pole 12, PX0412/12P, Bulgin Bulgin Buccaneer 系列 12路 面板安装 直向 连接器 , 公触点
PX0483
Bulgin
Standard Circular Connector GLAND PACK CONN GLAND 5.0-7.0MM O/D CABLES Buccaneer 400 gland pack for 5-7mm cable Connector Accessories Gland Pack CABLE GLAND PACK, PACK OF 4, 5 TO 7MM CABLE GLAND (CLAMP) GlandPack;Connector;Cablesfrom5.0mmto7.0mmDia.;400Series Gaskets set; Buccaneer 400; IP68; 5÷7mm; Application: PX04.. Set 4 Pairs Glands & Collets for ø 5...7 mm, PX0483, Bulgin Bulgin 电缆固定头 , -40°C至+80°C
SA3179/1
Bulgin
Standard Circular Contacts 157-SA3179/1 24AWG 1 = 1 PKT of 10/pcs CONT SKT 1A SLD 24-28AWG 1=10PC 400 Series 1A Female Circular Connector Contact, Solder,Wire size 28 to 24AWG Contact SKT Solder ST Cable Mount CONTACT, SOCKET, 26-24 AWG, SOLDER Contacts,Standard,Buccaneer,25-Way,SolderSockets Contact; female; 24÷28AWG; Buccaneer 400; gold plated; soldering Soldering contact, female, for 10 and 12-pole, SA3179/1, Bulgin Bulgin 400 系列 1A 母 焊接端接 圆形 连接器 触芯, 使用于Buccaneer 400 系列连接器, 28 → 24 AWG 线规格
PX0481
Bulgin
Standard Circular Connector SEALING CAP CONN CAP SEAL FOR PX0410/PX0415 Buccaneer 400 cable mount sealing cap Connector Accessories Sealing Cap SealingCap,Connector;Flexcableconnector;400Series Protection cover; threaded joint, external thread; IP68 Protective cap for cable plugs/sockets, PX0481, Bulgin
PX0410/12P/6065
Bulgin
Standard Circular Connector 12 POLE FLEX PLUG CONN HSNG PLUG CABLE 12POS PIN 12 Pole Straight Cable Mount Industrial & Automation Circular Connector with Male Contacts Buccaneer Series Conn Buccaneer PIN 12 POS Crimp ST Cable Mount 12 Terminal 1 Port PLUG, FREE, 12WAY CONN HSNG PLUG INLINE 12POS PIN Connector,Cable;Plug;12;46mm(Max.);1A;50VAC/VDC;5Milliohms(Max.) Connector: circular; plug; male; PIN:12; w/o terminals; for cable Cable plug Buccaneer 400, 12-pole 12, PX0410/12P/6065, Bulgin Bulgin Buccaneer 系列 12路 电缆安装 直向 连接器 , 公触点
PX0411/12P/5055
Bulgin
Standard Circular Connector 12 POLE FLEX PLUG 5.0-5.5MM YELLOW CONN HSNG RCPT IN-LINE 12POS PIN
PX0411/12P/4045
Bulgin
Standard Circular Connector 12 POLE FLEX PLUG 4.0-4.5MM GREEN CONN HSNG RCPT IN-LINE 12POS PIN
PX0411/12P/3035
Bulgin
Standard Circular Connector 12 POLE FLEX PLUG 3.0-3.5MM LIGHT GREY CONN HSNG RCPT IN-LINE 12POS PIN
PX0411/12P/5560
Bulgin
Standard Circular Connector 12 POLE FLEX PLUG 5.5-6.0MM BLUE CONN HSNG RCPT IN-LINE 12POS PIN

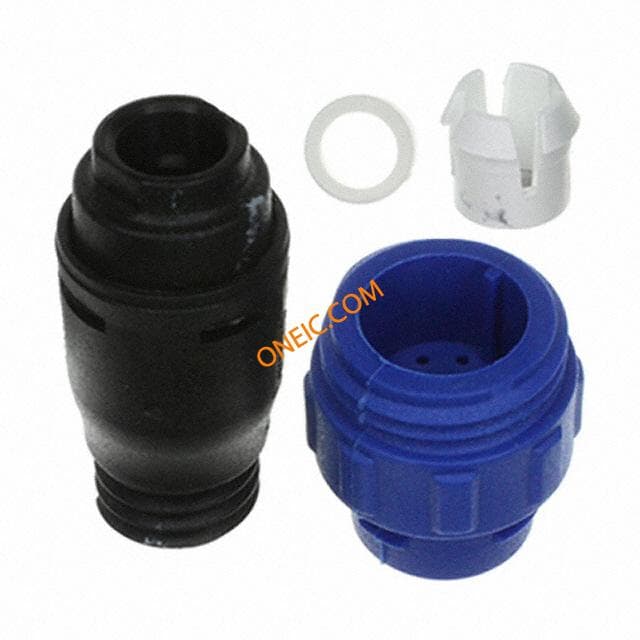

PX0411/12P/6065
