点击放大查看

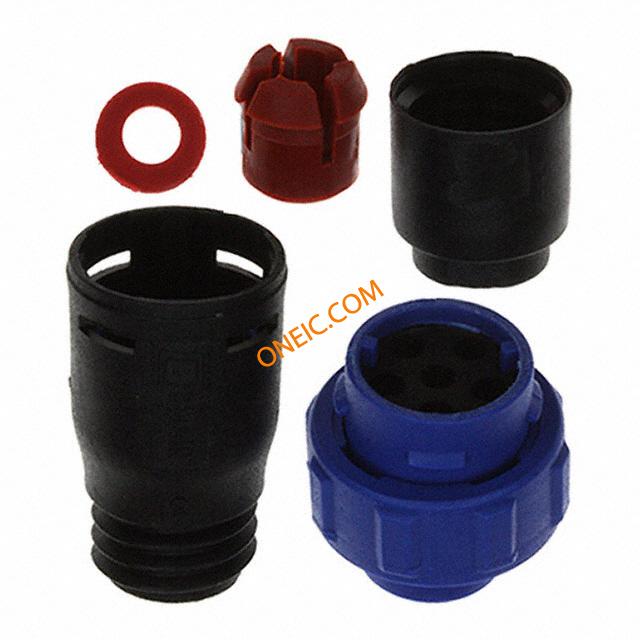

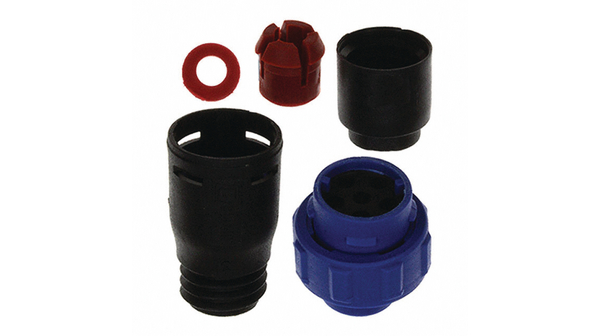

PX0410/06S/4550
| 制造商 | Bulgin |
| 描述 | Standard Circular Connector 6 POLE FLEX SKT CONN HSNG PLUG CABLE 6POS SKT 6 Pole Straight Cable Mount Industrial & Automation Circular Connector with Female Contacts Buccaneer Series Conn Buccaneer SKT 6 POS Crimp ST Cable Mount 6 Terminal 1 Port CIRCULAR, RECEPTACLE, 6 WAY, CABLE CONN HSNG PLUG INLINE 6POS SKT Connector,Cable;Socket;6;46mm(Max.);5A;125VAC/DC;5Milliohms(Max.) Cable socket Buccaneer 400, 6-pole 6, PX0410/06S/4550, Bulgin Bulgin Buccaneer 系列 6路 电缆安装 直向 连接器 , 母触点 |
| 分类 |
商业参数
| 产品类别 | Standard Circular Connector | 标准包装数量 | 25 |
| 工厂包装数量 | 25 | ||
合规参数
| RoHS | Compliant | SVHC | :No SVHC (19-Dec-2012) |
| 海关税号 | 85366990 | 认证机构 | ULRecognized/CSA/VDE |
| 材料阻燃等级 | :UL94V-0 | ||
电气参数
| 额定电压 | 125 V ac/dc | 工作电压 | :125V |
| 接触电阻 | :5mohm | 最大额定电流 | 5A |
机械参数
| 重量 | 0.004 | 包装方式 | Bulk |
| 导线线规 | :22AWG | 方向 | Keyed |
| 外壳样式 | Receptacle | 端接方式 | Crimp |
| 触头类型 | Crimp and Solder Cup | 安装类型 | Free Hanging (In-Line) |
| 行程角度 | Straight | 电缆直径 | 4.5-5mm |
| 连接器类型 | Plug for Female Contacts | 接触镀层 | Gold |
| 紧固类型 | Threaded | 安装样式 | Free Hanging |
| 外壳材料（壳体） | Plastic | 插入角度 | :- |
| 本体材料 | :Nylon (Polyamide) | 触头材料 | Copper Alloy |
| 壳体材料 | Polyamide | 主要材料 | Sealed |
| 端接样式 | Crimp / Solder | 第一触头极性 | Female |
| 配接方向 | Threaded | 触点数 | 6 |
| 位数 | 6 | 外壳尺寸-插件 | :- |
| 外壳材料及表面处理 | Polyamide | 线规或范围 - AWG | :26AWG |
| 第一连接器安装类型 | :Cable | 外径-未扩张 | :5.0mm |
产品信息
| 备注 | Contacts Not Provided | 类型 | CableSocket |
| 连接器性别 | :Receptacle | 系列 | Buccaneer |
| 产品特性 | ScrewLocking | 制造商全称 | 400Series |
| 产品子类型 | Connectors | ||
环境参数
| NEMA 机架尺寸 | :IP68 | 防护等级 | IP68 - Dust Tight, Waterproof |
| 工作温度 | +80°C | ||
文档与媒体
相关型号
14025
Bulgin
Crimpers CRIMP TOOL FOR 400S TOOL CRIMP USE W/POSITIONERS Crimp tool; 8 Indent; for use with positioners Crimp Tools For 3, 9,12 And 25 Pole Crimp Contacts CRIMP TOOL, 400 SERIES Crimptool,8Indent,forusewithpositioners Crimping pliers without limit stop, 14025, Bulgin
14025/5AMP
Bulgin
Crimpers POSITIONER 5A RED TOOL CRIMP POSITIONER FOR 5A Tool; Positioner; 12 pole Connector Accessories Positioner 5A Red 12 POS POSITIONER, 22-26AWG Tool,Positioner,12pole Limit stop for contacts SA3348/3347, 14025/5AMP, Bulgin

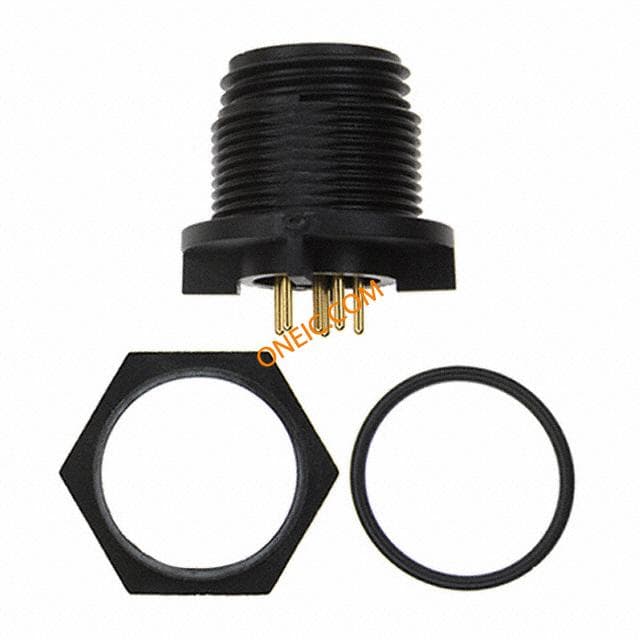

PX0413/06P/PC
