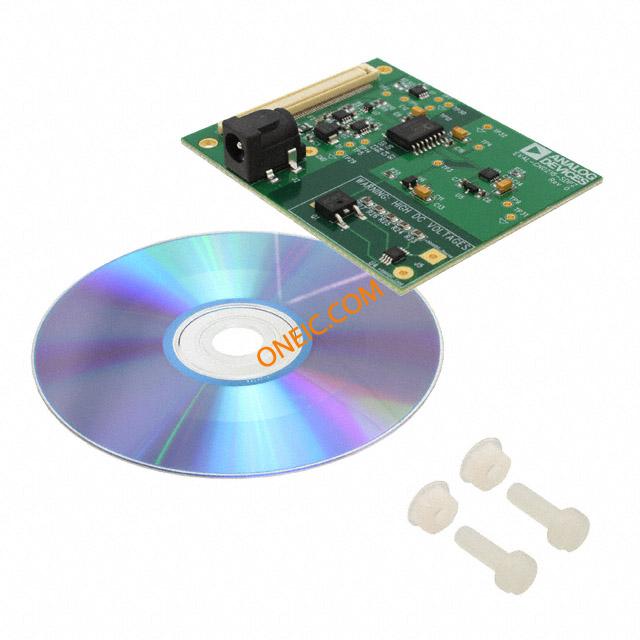

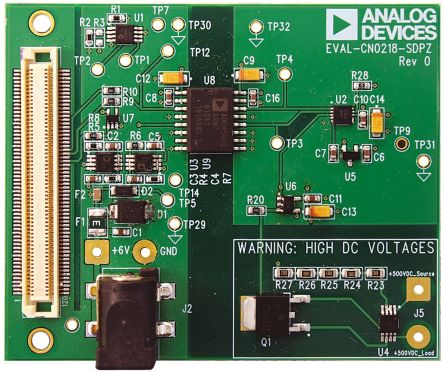

EVAL-CN0218-SDPZ
| 制造商 | Analog Devices, Inc. |
| 描述 | Evaluation Board For Precision Instrumentation Amplifier With Signal Processing Amplifiers BOARD CFTL AD8212 Power Management IC Development Tools CftL CN0218 Eval BRD AD8212, CURRENT MONITOR, EVAL BOARD Analog Devices CN0218 评估测试板 |
| 分类 |
商业参数
| 产品 | Evaluation Boards | 其他名称 | EVALCN0218SDPZ |
| 标准包装数量 | Boxed | 工厂包装数量 | 1 |
合规参数
| RoHS | Lead free / RoHS Compliant | SVHC | :No SVHC (20-Jun-2013) |
| 欧盟RoHS | Compliant | 海关税号 | 85423990 |
电气参数
| 接口 | Serial | 额定电压 | 7 V to 65 V |
| 输出电流 | 500 uA | 元件数量 | :ADuM5402 |
机械参数
| 重量 | 0.1 | 包装方式 | Bulk |
产品信息
| 类型 | Development Kit | 系列 | CN-0218 |
| 内容 | Board | 嵌入式 | No |
| 产品特性 | :- | 功能 | 500 V common-mode voltage current monitor |
| 套件类型 | :Evaluation | 套件内容 | :- |
| 主要用途 | Power Management, Current Monitor | 工具类型/特性 | AD8212, AD8605, ADuM5402, ADR381, AD7171 |
| 主要特性 | Current Shunt Monitor | 使用的IC/零件 | AD7171, AD8212, AD8605, ADuM5402 |
| 芯片组制造商 | :Analog Devices | 应用细节 | :- |
| 适用产品/相关产品 | AD8212, AD8605, ADuM5402, ADR381, AD7171 | ||
文档与媒体
相关型号
AD8605ARTZ-REEL7
analog devices
OP Amp Single GP R-R I/O 5.5V 5-Pin SOT-23 T/R IC OPAMP GP 10MHZ RRO SOT23-5 OP AMP, PRECISION, 10MHZ, 5SOT23 IC, OP-AMP, 10MHZ, 5V/ us, SOT-23-5, FULL REEL Analog Devices AD8605ARTZ-R2 低噪声 运算放大器, 10MHz CMOS、轨至轨, 2.7 → 5.5 V, 5针 SOT-23 Precision Amplifiers Prec Low Noise CMOS RRIO SGL
24LC32A-I/MS
microchip
EEPROM Serial-I2C 32K-bit 4K x 8 3.3V/5V 8-Pin MSOP Tube IC EEPROM 32KBIT 400KHZ 8MSOP 24LC32A-I/MS, Serial EEPROM Memory 32kbit, Serial-I2C, 900ns 2.5 to 5.5V, 8-Pin MSOP EEPROM 4kx8 - 5V - 2.5V IC, EEPROM SERIAL 32KB, SMD, MSOP8 32K,4KX8,2.5VSEREEIND Memory; EEPROM; I2C; 4kx8bit; 2.5÷5.5V; 400kHz; MSOP8
AD8212YRMZ
analog devices
SP Amp Current Shunt Monitor Single 65V 8-Pin MSOP Tube IC CURRENT MONITOR 8MSOP AD8212YRMZ, Current Sensing Amplifier Single 8-Pin MSOP Current Sense Amplifiers IC High VTG Package/Case CURRENT SHUNT MONITOR, SMD, MSOP8 单 电流感应放大器, 8针 MSOP封装
ADUM5402CRWZ
analog devices
Digital Isolator 16-Pin SOIC W Digital Isolator 4-CH 25Mbps 16-Pin SOIC W Tube IC DGTL ISO 4CH LOGIC 16SOIC Digital Isolator 4-channel SOIC16 Isolator Interface IC Quad-CH w/ Intg DC/DC Converter ISOLATOR, 4CH, DCDC, CONV, 16SOIC Analog Devices 4通道 数字隔离器, 2500 V隔离电压, 16针 SOIC Digital Isolators Quad-CH w/ Intg DC/DC Converter
1210L035YR
Littelfuse
Resettable Fuses 0.35A 6V 1210 PTC 6V POLYFUSE SURF MOUNT 1210 .350A PTC RESETTABLE 6V .350A SMD 1210 Resettable Fuses - PPTC 0.35A 6V 1210 POLYFUSE, PTC, 1210, 0.35A Fuse, SMD 6 VDC 0.7 A, 1210L035YR, Littelfuse Resettable Fuse 350mA 6V SMD
ADUM5402ARWZ
analog devices
Digital Isolator 16-Pin SOIC W DGTL ISOLATORS 16SOIC W Digital Isolator 4-CH 1Mbps 16-Pin SOIC W Tube IC DGTL ISO 4CH LOGIC 16SOIC Digital Isolator 4-channel SOIC16 Isolator Interface IC Quad-CH w/ Intg DC/DC Converter IC, ISOLATOR,4CH,DCDC,CONV,16SOIC Analog Devices 4通道 数字隔离器, 2500 V隔离电压, 16针 SOIC Digital Isolators Quad-CH w/ Intg DC/DC Converter

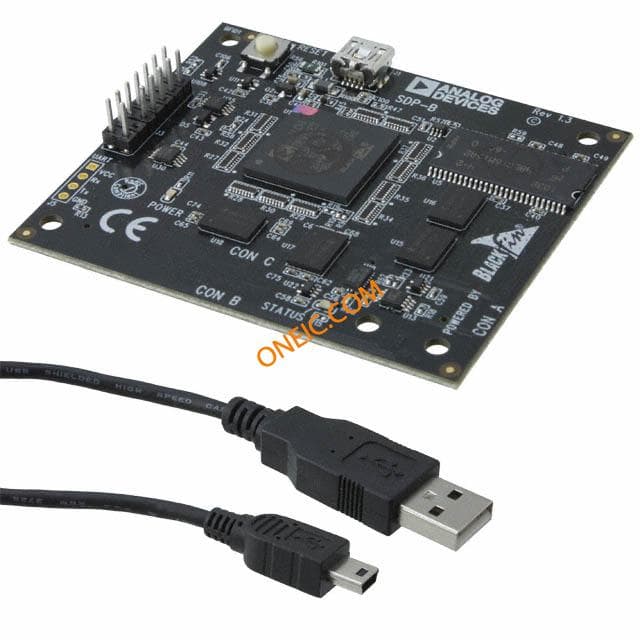

EVAL-SDP-CB1Z
analog devices
EVALUATION BOARDS Evaluation Controller Board BOARD EVALUATION FOR SDP-CB1 EVAL-SDP-CB1Z, Development Kit, Data Acquisition, Blackfin, EVAL-SDP-CB1Z Board, USB Cable Data Conversion IC Development Tools EVAL-SDP-CB1Z ADSP-BF527, SDP-B,CONTROLLER BOARD Analog Devices SDP-B 处理器和微控制器开发套件; 载有 ADSP-BF527 DSP（数字信号处理器） (Blackfin 内核)
AD7171BCPZ-500RL7
analog devices
ADC Single Delta-Sigma 125sps 16-bit Serial 10-Pin LFCSP EP T/R Single ADC Delta-Sigma 125sps 16-bit Serial 10-Pin LFCSP EP T/R IC ADC 16BIT SER 125HZ 10LFCSP Analog to Digital Converters - ADC 1CH L/POWER 12-BIT SD GAIN 128 IC IC, ADC, 16BIT, SER, 125HZ, 10LFCSP Analog Devices , 16 位 ADC, SPI接口, 10针 LFCSP WD封装 Analog to Digital Converters - ADC 1CH L/POWER 16-BIT SD GAIN 128 IC
FX8-120S-SV(21)
Hirose Connector
Board to Board & Mezzanine Connectors RCP 120 POS 0.6mm Solder ST SMD Tube CONN RECEPT 120POS .6MM GOLD SMD Hirose FX8 Series 0.6mm 120 Way 2 Row Straight PCB Socket Surface Mount Board to Board Hirose FX8 系列 2行 120路 直 0.6mm节距 表面贴装 印刷电路板插座, 板对板

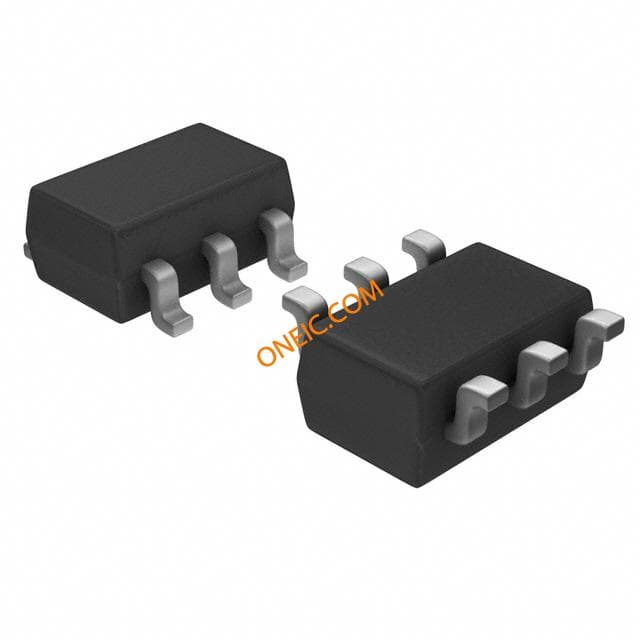

ADR3425ARJZ-R7
