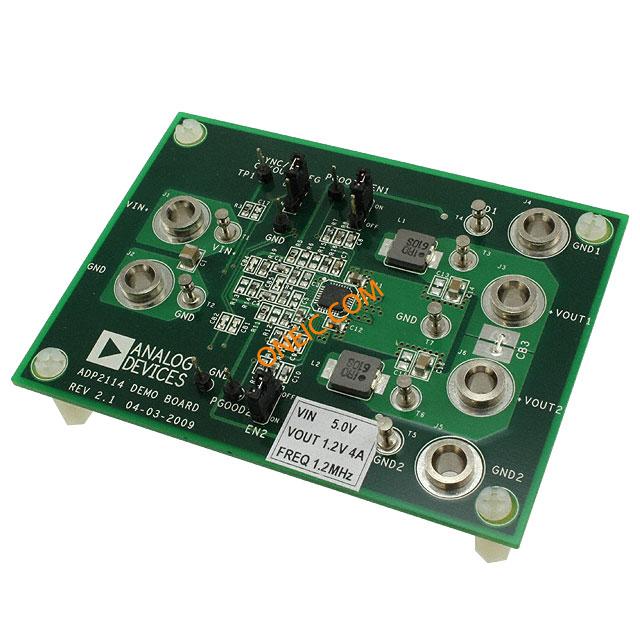

ADP2114-2PH-EVALZ
| 制造商 | Analog Devices, Inc. |
| 描述 | Evaluation Board For ADP2114 (Single Output, DualPhase) BOARD EVALUATION 1.2V 4A 1.2MHZ Power Management IC Development Tools ADP2114-2PH Eval Brd ADP2114, DC TO DC CONV, EVAL BOARD Analog Devices ADP2114 直流-直流转换器 评估测试板 |
| 分类 |
商业参数
| 产品 | Evaluation Boards | 其他名称 | ADP21142PHEVALZ |
| 标准包装数量 | Boxed | 工厂包装数量 | 1 |
合规参数
| RoHS | Lead free / RoHS Compliant | SVHC | :No SVHC (20-Jun-2013) |
| 欧盟RoHS | Compliant | 海关税号 | 85423190 |
电气参数
| 核心类型 | :Power Management - Voltage Regulator | 额定电压 | 2.75 V to 5.5 V |
| 输出电流 | 4A | 元件数量 | :(Not Applicable) |
| 稳压器拓扑 | Buck | 开关频率 | 300kHz, 600kHz, 1.2MHz |
| 最小输入电压 | 0.6 V ~ 3.3 V | ||
机械参数
| 重量 | 0.04 | 包装方式 | Bulk |
| 电路板厚度 | Fully Populated | ||
产品信息
| 类型 | Development Kit | 系列 | ADP2114 |
| 内容 | Board | 产品特性 | :Standalone Capability, Two Independent Enable Inputs, Two Power Good Outputs |
| 功能 | Single output, dual-phase interleaved, 1.2 V at 4 A, 1.2 MHz switching frequency, forced PWM evaluation board | 套件类型 | :Power Management |
| 套件内容 | :Board | 主要用途 | DC/DC, Step Down |
| 输出及类型 | 1, Non-Isolated | 工具类型/特性 | ADP2114 |
| 使用的IC/零件 | ADP2114 | 芯片组制造商 | :Analog Devices |
| 应用细节 | :Step Down DC / DC Regulator | 支持MCU系列 | :ADP2114 |
| 适用产品/相关产品 | ADP2114 | ||
环境参数
| 工作温度 | - 40 C | ||
文档与媒体
