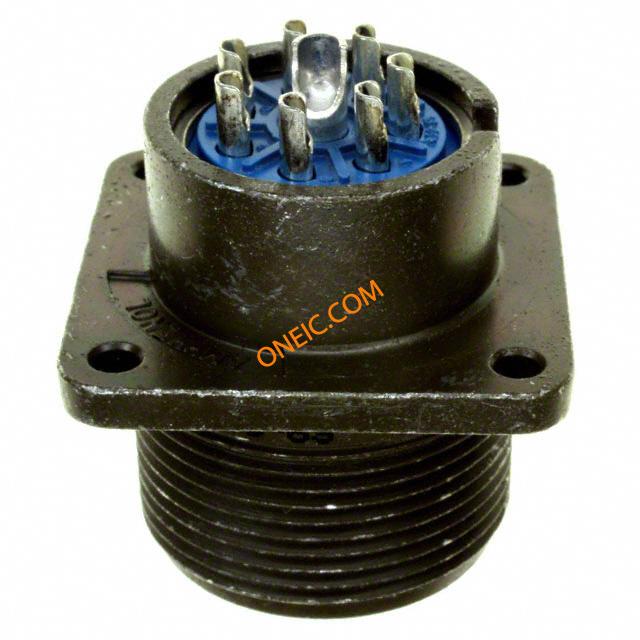

97-3102A-18-8S
| 制造商 | |
| 描述 | Conn MIL-C-5015 Circular SKT 8 POS Solder ST Box Mount 8 Terminal 1 Port MIL-DTL-5015 (MS3100-MS3108) Circular Connectors CONN RECEPT BOX MNT 8POS W/SOCK connector;metal circ;box recept;size 18;1#12 & 7#16 solder socket contact;olive connector, metal circ, box recept, size 18, 1#12 & 7#16 solder socket contact, olive Connector: military; socket; female; PIN:8; threaded joint |
| 分类 |
商业参数
| 其他名称 | 10-820050-08S | 标准包装数量 | Bulk |
合规参数
| RoHS | Contains lead / RoHS non-compliant | 抗辐射加固 | No |
| 认证机构标志 | UL/CSA | ||
电气参数
| 额定电压 | 500VAC, 700VDC | 最大额定电流 | 13A, 23A |
机械参数
| 深度 | 34.93 mm | 高度 | 34.93 mm |
| 重量 | 0.05 kg | 包装方式 | Bulk |
| 出线方向 | No | 外壳尺寸 | 18 |
| 导线线规 | #12, #16 | 方向 | N (Normal) |
| 外壳样式 | box mount receptable | 端接方式 | Solder |
| 触点形式 | (1/7)Signal | 触头类型 | socket contacts |
| 安装类型 | Box Mount | 外壳镀层 | Olive Drab Cadmium |
| 行程角度 | Straight | 连接器类型 | Amphenol 97 Series - Standard Cylindrical Connector - solder type |
| 接触镀层 | Silver | 紧固类型 | Threaded |
| 外壳涂层 | Olive Drab Cadmium | 安装样式 | Box |
| 封装形式 | Metal | 外壳材料（壳体） | solid backshell |
| 连接器用途 | Threaded | 插入角度 | 18-8 |
| 锁定特性 | threaded joint | 壳体材料 | Aluminum Alloy |
| 总长度 | 34.92 mm | 主要材料 | 5015 Commercial |
| 连接器 - 电缆 | socket | 第一触头极性 | SKT |
| 连接器颜色 | grey-olive | 触点数 | 8 POS |
| 介电材料 | Diallyl-Phthalate | 位数 | 8 |
| 外壳尺寸-插件 | 18-8 | 安装孔直径 | 0.12 " |
| 外壳材料及表面处理 | Aluminum, Olive Drab Cadmium Plated | 典型触点布局 | 1#12, 7#16 |
| 外壳与棱镜材料 | aluminium | 外壳尺寸-插入件（转换至） | 18-8 |
产品信息
| 类型 | MIL-C-5015 Circular | 类别 | A |
| 连接器性别 | RCP | 制造商全称 | 97 Series |
| 单元数量 | 1 | 射频系列/标准 | 97 |
| 应用细节 | Commercial | ||
环境参数
| 工作温度 | -55°C ~ 125°C | ||
相关型号
97-3106A-18-8P
amphenol
Conn MIL-C-5015 Circular PIN 8 POS Solder ST Cable Mount 8 Terminal 1 Port MIL-DTL-5015 (MS3100-MS3108) Circular Connectors CONN PLUG 8POS W/PINS connector;metal circ;str plug;size 18;1#12 & 7#16 solder pin contact;olive drab CIRCULAR CONNECTOR PLUG, SIZE 18, 8POS, CABLE connector, metal circ, str plug, size 18, 1#12 & 7#16 solder pin contact, olive drab
97-3108B-18-8P
amphenol
Conn MIL-C-5015 Circular PIN 8 POS Solder RA Cable Mount 8 Terminal 1 Port CONN PLUG RT ANG 8POS W/PINS connector;metal circ;rt angle plug;size 18;1#12;7#16 solder pin cont;olive drab connector, metal circ, rt angle plug, size18, 1#12, 7#16 solder pin cont, olive drab
97-60-18
amphenol
Connector Accessories Metal Protection Cap Bead Chain For Receptacle CONN CAP FOR SIZE 18 RCPT Chassis mount plug&skt dust cap,Size 18 Circular MIL Spec Tools, Hardware & Accessories RECPT. CAP 18 connector accessory, metal prot cap w/bead chain, for size 18 recept, olive drab Amphenol 97 系列 MIL-DTL-5015 插头 IP66 防尘盖, 尺寸18, 橄榄镉表面

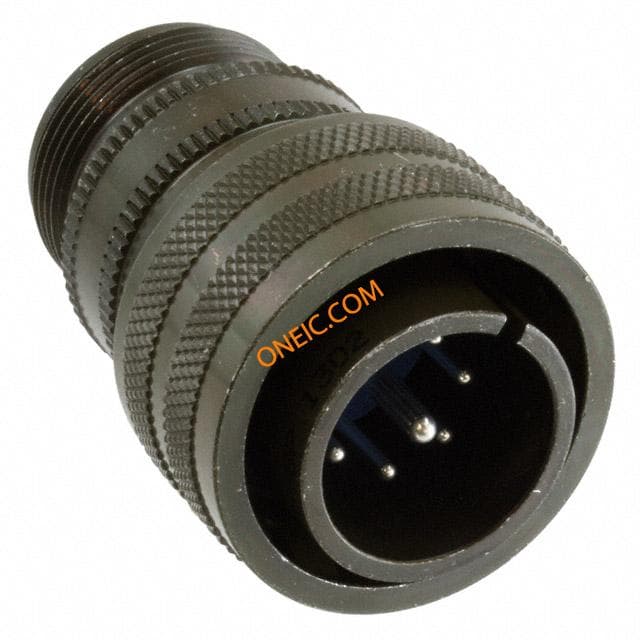

97-3107A-18-8P
