点击放大查看

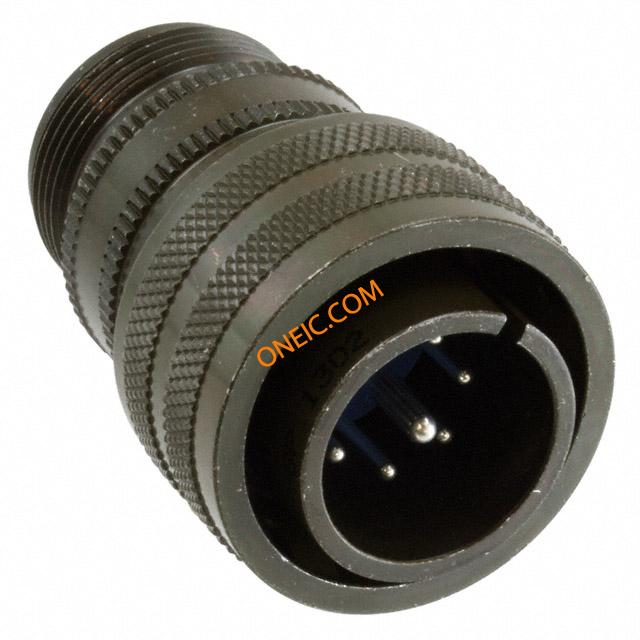

97-3107A-18-8P
| 制造商 | |
| 描述 | CONN PLUG 8POS STRGHT PIN QD connector;metal circ;str plug;QD;size 18;1#12;7#16 solder pin contact;olive drab Circular MIL Spec Connector Friction Fit Straight 8 Pin connector, metal circ, str plug, QD, size 18, 1#12, 7#16 solder pin contact, olive drab |
| 分类 |
商业参数
| 其他名称 | 973107A188P | 零件号别名 | 605-4651 97-3107A-18-8P |
| 标准包装数量 | 1 | ||
合规参数
| RoHS | Non Compliant | MIL类型 | MIL-DTL-5015 |
| 认证机构标志 | UL/CSA | ||
电气参数
| 额定电压 | 500VAC, 700VDC | 最大额定电流 | 13A, 23A |
机械参数
| 包装方式 | Bulk | 出线方向 | Solid |
| 外壳尺寸 | 18 | 导线线规 | #12, #16 |
| 方向 | N (Normal) | 外壳样式 | Potting |
| 端接方式 | Solder Cup | 触头类型 | Pin |
| 安装类型 | Free Hanging (In-Line) | 外壳镀层 | Olive Drab Chromate over Cadmium |
| 行程角度 | Straight | 连接器类型 | Plug, Male Pins |
| 接触镀层 | Silver | 紧固类型 | Push-Pull |
| 外壳涂层 | Olive Drab Cadmium | 安装样式 | Wire |
| 封装形式 | Metal | 外壳材料（壳体） | Aluminum Alloy |
| 连接器用途 | Quick Disconnect | 插入角度 | 18-8 |
| 触头材料 | Copper Alloy | 壳体材料 | Aluminum Alloy |
| 主要材料 | 5015 Commercial | 端接样式 | Solder |
| 第一触头极性 | Pin (Male) | 配接方向 | Threaded |
| 触点数 | 8 | 介电材料 | Diallyl-Phthalate |
| 位数 | 8 | 外壳尺寸-插件 | 18-8 |
| 外壳材料及表面处理 | Aluminum, Olive Drab Cadmium Plated | 典型触点布局 | 1#12, 7#16 |
产品信息
| 类型 | Cable Plug | 类别 | A |
| 系列 | 97 | 制造商全称 | 97 Series |
| 产品子类型 | Plugs | 应用细节 | Commercial |
环境参数
| 工作温度 | -55°C ~ 125°C | ||
