点击放大查看

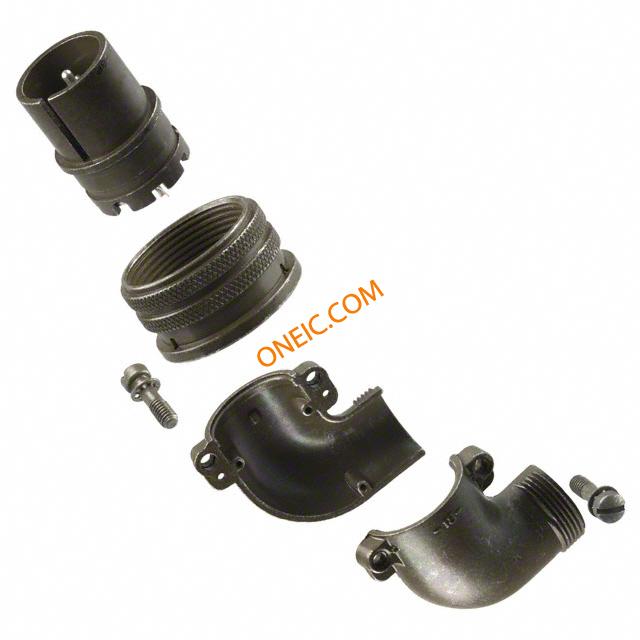

97-3108B-18-8P
| 制造商 | |
| 描述 | Conn MIL-C-5015 Circular PIN 8 POS Solder RA Cable Mount 8 Terminal 1 Port CONN PLUG RT ANG 8POS W/PINS connector;metal circ;rt angle plug;size 18;1#12;7#16 solder pin cont;olive drab connector, metal circ, rt angle plug, size18, 1#12, 7#16 solder pin cont, olive drab |
| 分类 |
对参数有疑问？问 AI 助手
商业参数
| 其他名称 | 10-820170-08P | 标准包装数量 | Bulk |
合规参数
| RoHS | Contains lead / RoHS non-compliant | 认证机构标志 | UL/CSA |
电气参数
| 额定电压 | 500VAC, 700VDC | 最大额定电流 | 13A, 23A |
机械参数
| 包装方式 | Bulk | 出线方向 | Split |
| 外壳尺寸 | 18 | 导线线规 | #12, #16 |
| 方向 | N (Normal) | 端接方式 | Solder |
| 触头类型 | Pin | 安装类型 | Cable Mount |
| 行程角度 | Right | 连接器类型 | Plug, Male Pins |
| 接触镀层 | Silver | 紧固类型 | Threaded |
| 外壳涂层 | Olive Drab Cadmium | 封装形式 | Metal |
| 连接器用途 | Threaded | 插入角度 | 18-8 |
| 壳体材料 | Aluminum Alloy | 主要材料 | 5015 Commercial |
| 触点数 | 8 | 介电材料 | Diallyl-Phthalate |
| 位数 | 8 | 外壳尺寸-插件 | 18-8 |
| 外壳材料及表面处理 | Aluminum, Olive Drab Cadmium Plated | 典型触点布局 | 1#12, 7#16 |
产品信息
| 类型 | MIL-C-5015 Circular | 类别 | B |
| 连接器性别 | PL | 制造商全称 | 97 Series |
| 应用细节 | Commercial | ||
环境参数
| 工作温度 | -55°C ~ 125°C | ||
